Alpha Series AC Servo Amplifier Descriptions Page 334

Descriptions

Page of 699

/ 699

9. CONNECTION

B–65162E/03

314

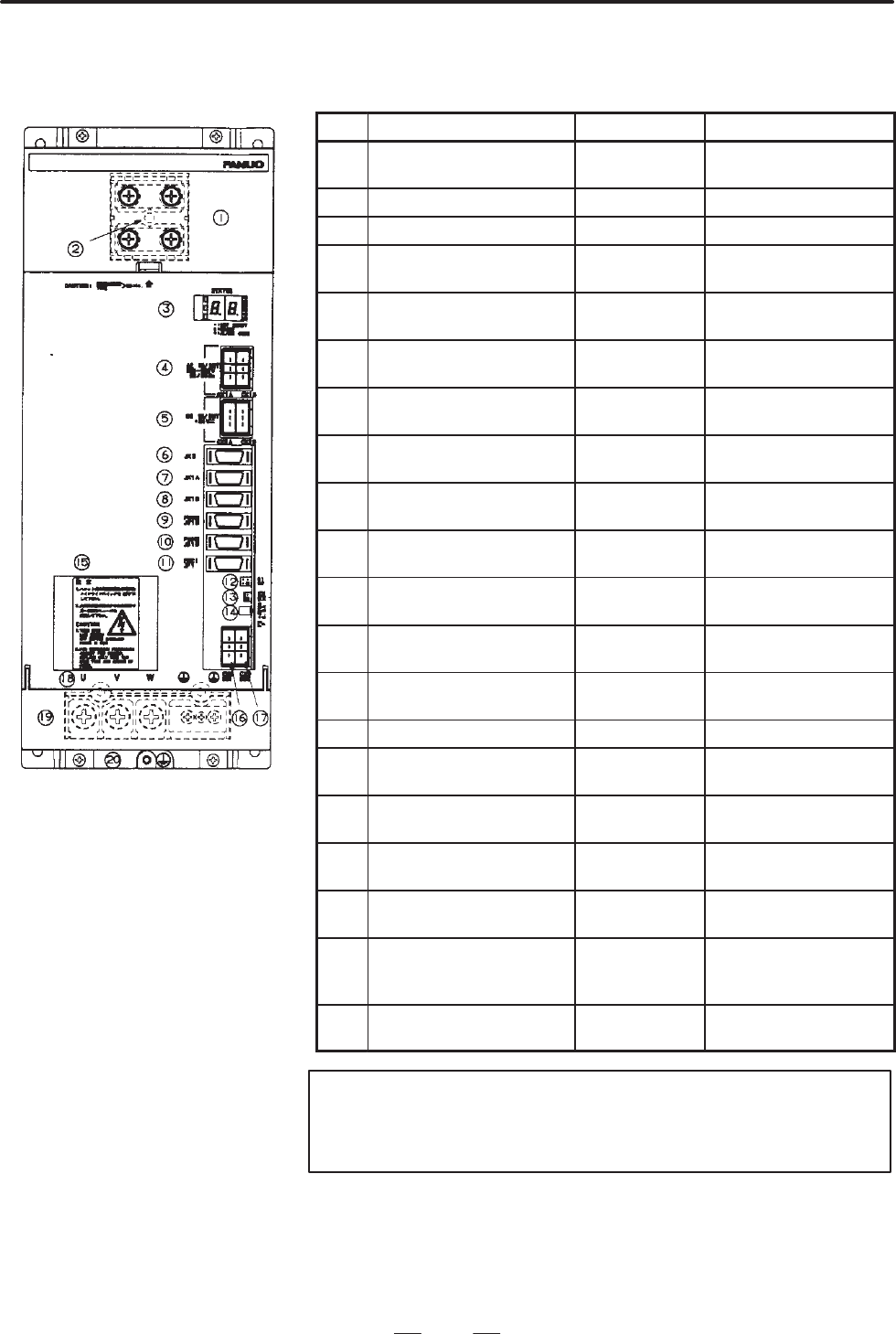

Table.9.3.2 (h) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 DC link charge LED (Warning)

3 Status LED STATUS

4 24VDC power I/O connec-

tor

CX1A/CX1B

5 24V power I/O connector CX2A/CX2B Both connectors have

same function.

6 Signal check connector JX5 Use an SVM check

board.

7 Input connector for inter-

face between modules

JX1A

8 Output connector for inter-

face between modules

JX1B

9 CNC interface connector

TYPE A interface

PWM11/JV1B

10 CNC interface connector

TYPE B interface

PWM11/JS1B

11 Pulse coder connector JF1 For TYPE B interface

only

12 Interface changeover con-

nector

TYPE A Interface : S1

TYPE B Interface : S2

13 Power connector for ABS

pulse coder battery

CX5X

14 Fuse for 24V power

15 Battery for ABS pulse cod-

BATTERY A06B–6073–K001

16 Dynamic brake interface

connector

CX8

17 Dynamic brake drive coil

connector

CX9

18 Terminal block for motor

power line

19 Terminal names for termi-

nal block for motor power

line

Display the terminal

block TB2

20 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(h)–2 SVM1–240 SVM1–360
