Power Failure Back-up Module

(with control power backup function)

DESCRIPTIONS

B-65162E/03-08

TMS01/032E

200R2 (DC−)

200S2 (DC+)

200R

200S

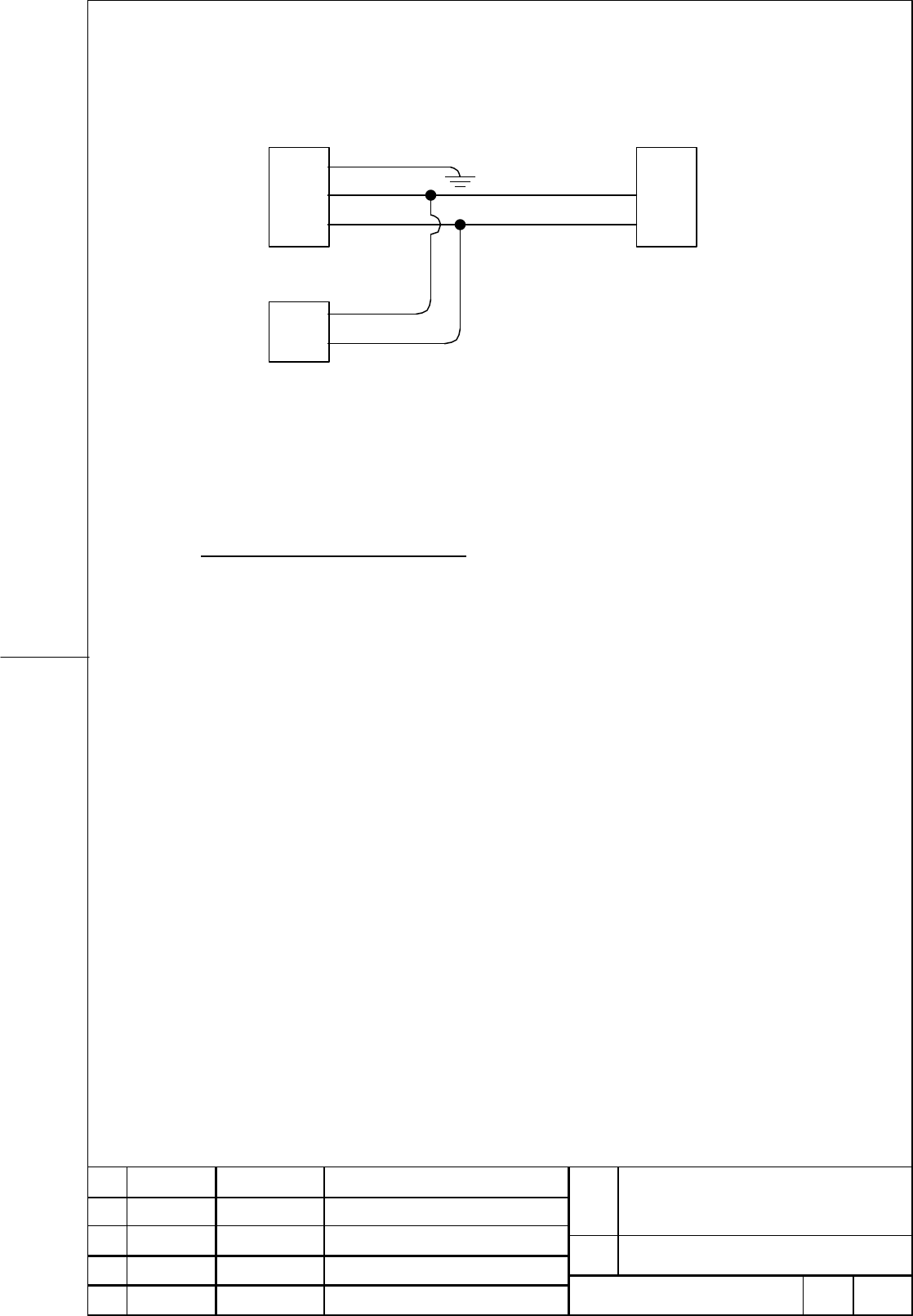

(8) Detailed Connection of Cable K64

This cable is for supplying AC200V or DC link voltage from CX13 to the control power

input of PSM (CX1A), CNC, and PSM.

CX1A CX13

(3) (3)

(2) (2)

(1) (1)

Power Supply for CNC, PMC

200S

200R

Connector specification: Connector manufactured by AMP

Receptacle housing: 2-178128-3 (CX13)

1-178128-3 (CX1A)

Receptacle contact: 1-175218-2

Cable specification: Two-core vinyl cabtyre cable JIS C 3312

Conductor 1.25mm

(50/0.18) Sheath PVC 9.6φ

Power supply capacity from CX13

The maximum power capacity of the equipment connected to CX13 is 1000VA.

The capacity to supply to CNC, PMC, and the other equipment is 700VA because

the power capacity of PSM is 300VA.

In case that the power capacity specification of the equipment connected to CX13 is

not described by “VA”, calculate the power capacity as follows.

In case that the Power[W] is obtained:

Power Capacity[VA] = Power[W] ÷ 0.5

In case that the Current[A] is obtained:

Power Capacity[VA] = Current[A] × 200[V]

In case that the Current[A] of DC24V output of the power supply is obtained:

Power Capacity[VA] = 24[V] × Current [A] ÷ η ÷ cosφ

η: Efficiency of power supply (normally about 0.85) .

cosφ: Power factor (normally about 0.5) .

In case that the total power capacity of CNC, PMC, and the other equipment

connected to Power Failure Backup Module is more than 700VA, small sized UPS

is needed for the control power. In this case it is necessary that the control power

for PSM is supplied from Power Failure Backup Module (connected between CX13

and CX1A).

02 99.06.21 Power supply capacity corrected.

02 99.06.21 Ground line of CX1A added.
