9. CONNECTION

B–65162E/03

248

(b) Models α3/3000 to α40/2000, α65/2000 to α150/2000, α300/1200 to α400/1200, αC3/2000 to αC22/1500,

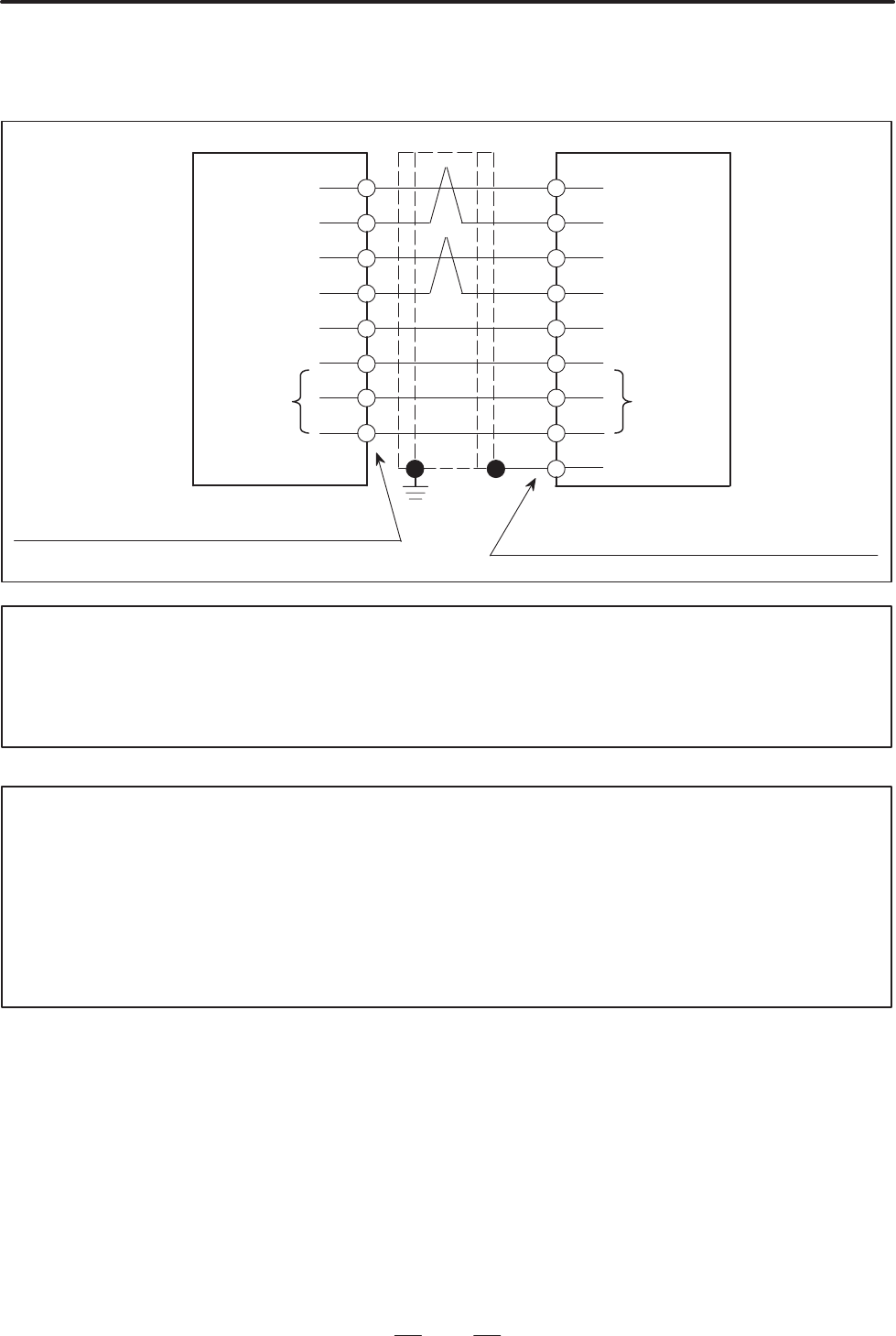

αM6/3000 to αM40/3000, and αL6/3000 to αL50/2000

SVM

Motor

(Note)

*SD

REQ

+5V

*REQ

0VA

+6VA

Shielding

Connector: FI40–2015S (Hirose Electric Co., Ltd.)

Case : FI–20–CV (Hirose Electric Co., Ltd.)

Connector used at the cable end:

Refer to FANUC AC SERVO MOTOR α Series

Descriptions B–65142E.

(1)

(6)

(5)

(2)

(9, 18, 20)

(12, 14)

(16)

(7)

(D)

(A)

(S)

(J, K)

(F)

(G)

(N, T)

(R)

(H)

NOTE

For the incremental pulse coder, it is not necessary to connect pins 7 and 16 of the connector

on the CNC side to pins R and S of the connector on the motor side. No problem will result if

they are connected, however. So, a cable for the absolute pulse coder can also be used for

the incremental pulse coder.

NOTE

Cables used in common for (a) and (b) : +5V, 0V...0.5 mm

or larger2

(for length of 14 m or less)

: +6VA, 0VA...0.5 mm

or larger

: SD, *SD, REQ, *REQ...twisted pair 0.18 mm

or larger

If the cable is 14 m or longer, keep the electrical resistance across each of the 0V and +5V lines

to within 0.5Ω.
