Alpha Series AC Servo Amplifier Descriptions Page 511

Descriptions

Page of 699

/ 699

B–65162E/03

11. OPTION RELATED TO SPINDLE

491

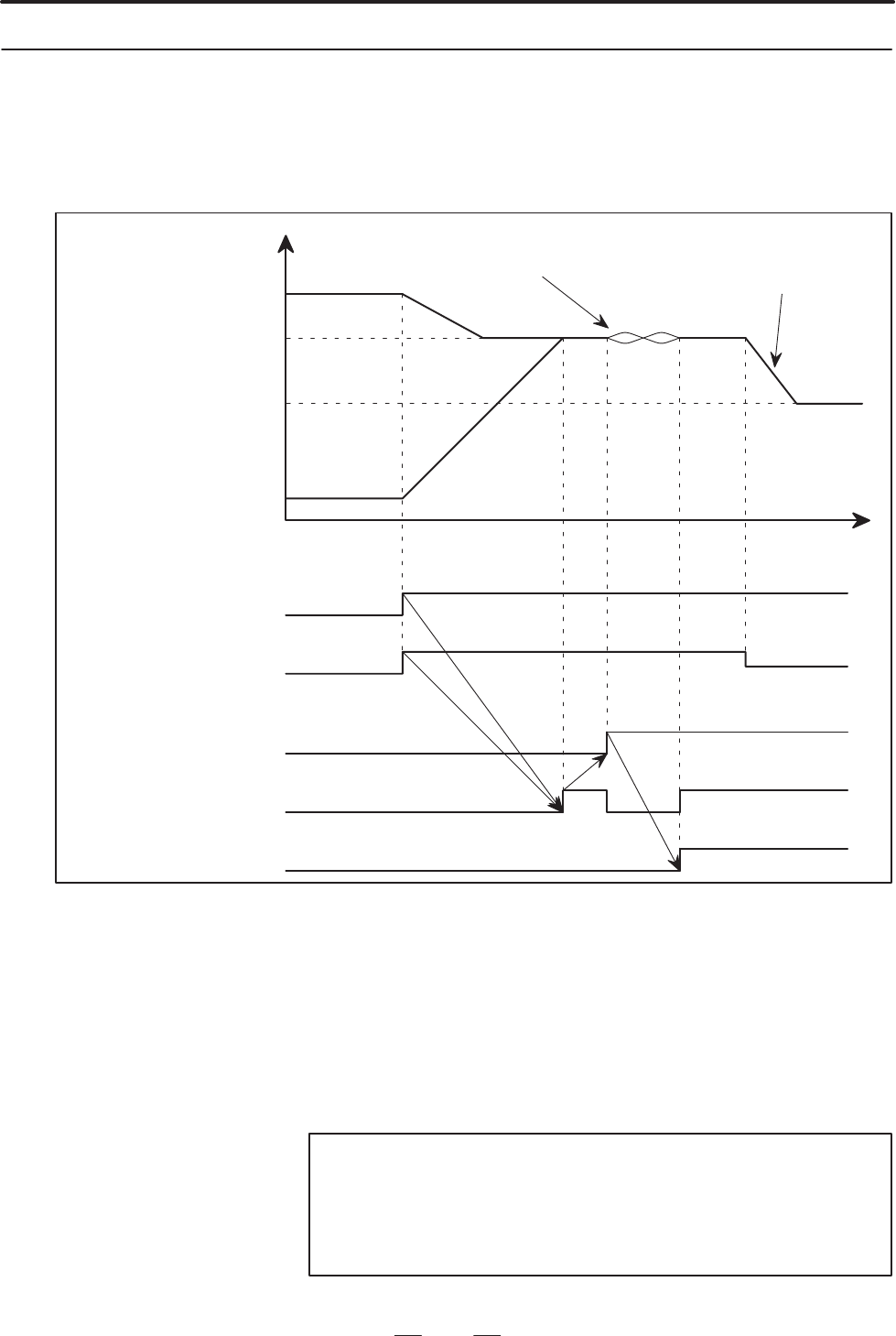

D While spindle 1 is rotating, spindle 2 is accelerated to reach the speed

of spindle 1. The phase of spindle 2 is synchronized with that of

spindle 1. Then the synchronization speed is changed, and the two

spindles increase or decrease their speed in synchronization.

(

Note

)

Spindle speed B

Spindle

speed A

Signal indicating that synchronization

control of spindle speed is completed FSPSY

Signal for spindle phase

synchronization control SPPHS

Signal for specifying the spindle

synchronization speed

R12I-R01I, RI12-00

Signal for spindles synchronization

control SPSYC



Time

Spindle 2

Spindle 1

Spindle speed

Phase synchronization

Acceleration/deceleration

in synchronization

Synchronization

speed A

Synchronization

speed B

Signal indicating that synchronization

control of spindle phase is completed FSPPH









 Enter the signal for specifying spindle synchronization speed and set

the signal for spindle synchronization control to 1.

 Wait until the signal indicating that synchronization control of spindle

speed is completed is set to 1.

 Set the signal for spindle phase synchronization to 1.

 Wait until the signal indicating that synchronization control of spindle

phase is completed is set to 1.

NOTE

The signal indicating that synchronization control of spindle

speed is completed is set to 0 when the signal for spindle

phase synchronization control is entered. It is changed to

1 when phase synchronization is completed.

11.4.5

Sample Sequence
