Alpha Series AC Servo Amplifier Descriptions Page 331

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

311

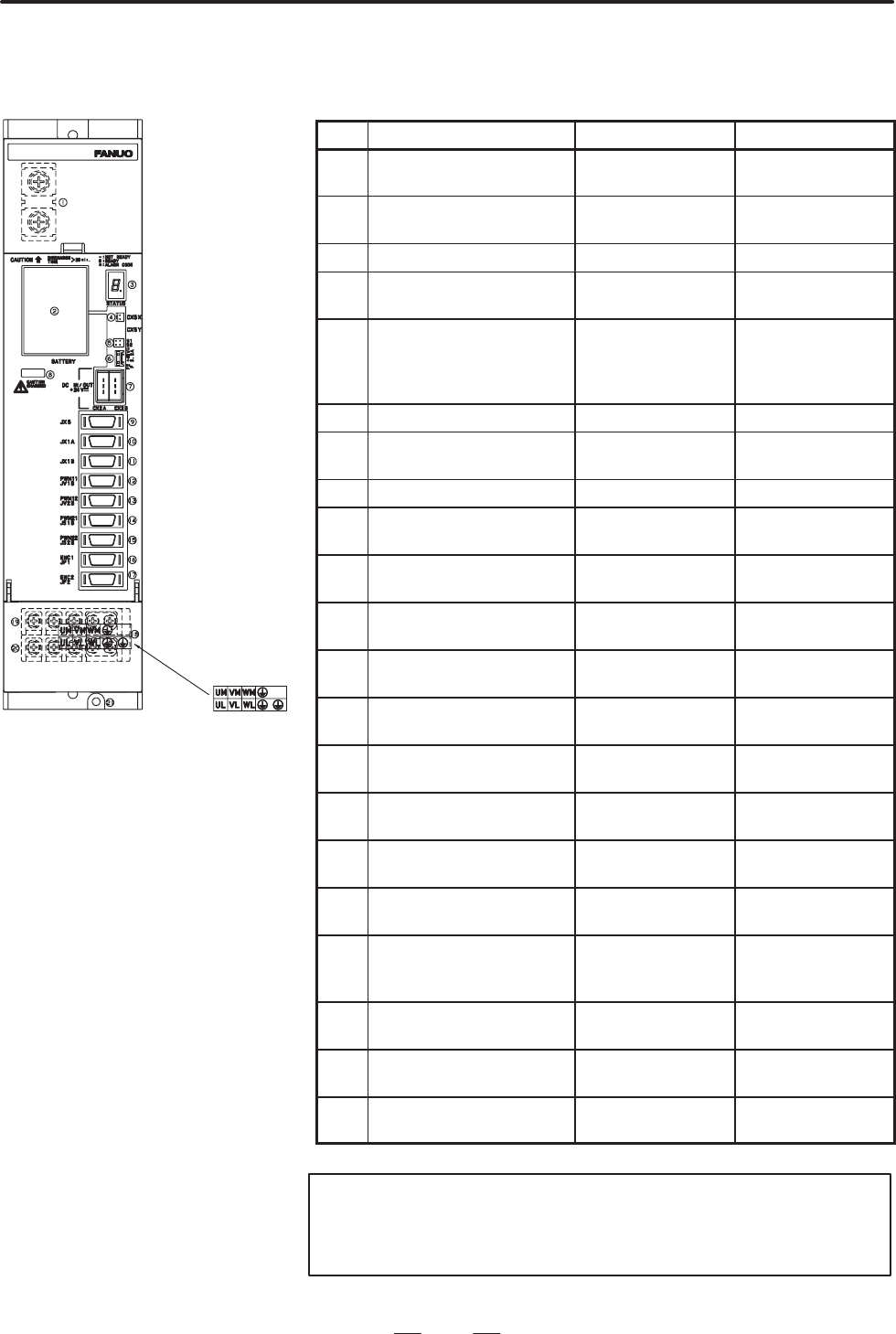

Table.9.3.2 (e) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB2

2 Battery for ABS pulse cod-

BATTERY A06B–6073–K001

3 Status LED STATUS

4 Power connector for ABS

pulse coder battery

CX5X

5 Interface switching con-

nector

S1/S2 Type–A interface:

Type–B interface:

6 Fuse for 24V power F2 32A, 48VDC

7 24V power I/O connector CX2A/CX2B Both connectors

have same function.

8 DC link charge LED (Warning)

9 Signal check connector JX5 Use an SVM check

board.

10 Input connector for inter-

face between modules

JX1A

11 Output connector for inter-

face between modules

JX1B

12 NC interface connector : L

axis for type–A interface

PWM11/JV1B FS16, FS18, FS15,

FS0, etc

13 NC interface connector : M

axis for type–A interface

PWM12/JV2B FS16, FS18, FS15,

FS0, etc

14 NC interface connector : L

axis for type–B interface

PWM21/JS1B FS20, FS21–G, etc.

15 NC interface connector : M

axis for type–B interface

PWM22/JS2B FS20, FS21–G, etc.

16 Pulse coder connector : L

axis

ENC1/JF1 Only for type–B in-

terface

17 Pulse coder connector : M

axis

ENC2/JF2 Only for type–B in-

terface

18 Terminal names for termi-

nal block for motor power

line

19 Terminal block for motor

power line : M axis

Display the terminal

block TB2

20 Terminal block for motor

power line : L axis

Display the terminal

block TB2

21 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

(e) SVM2–40/80, SVM2–80/80,

SVM2–20/20HV, SVM2–20/40HV,

SVM2–20/60HV, SVM2–40/40HV,

SVM2–40/60HV, SVM2–60/60HV
