8.8.2 Counter presetting and counting

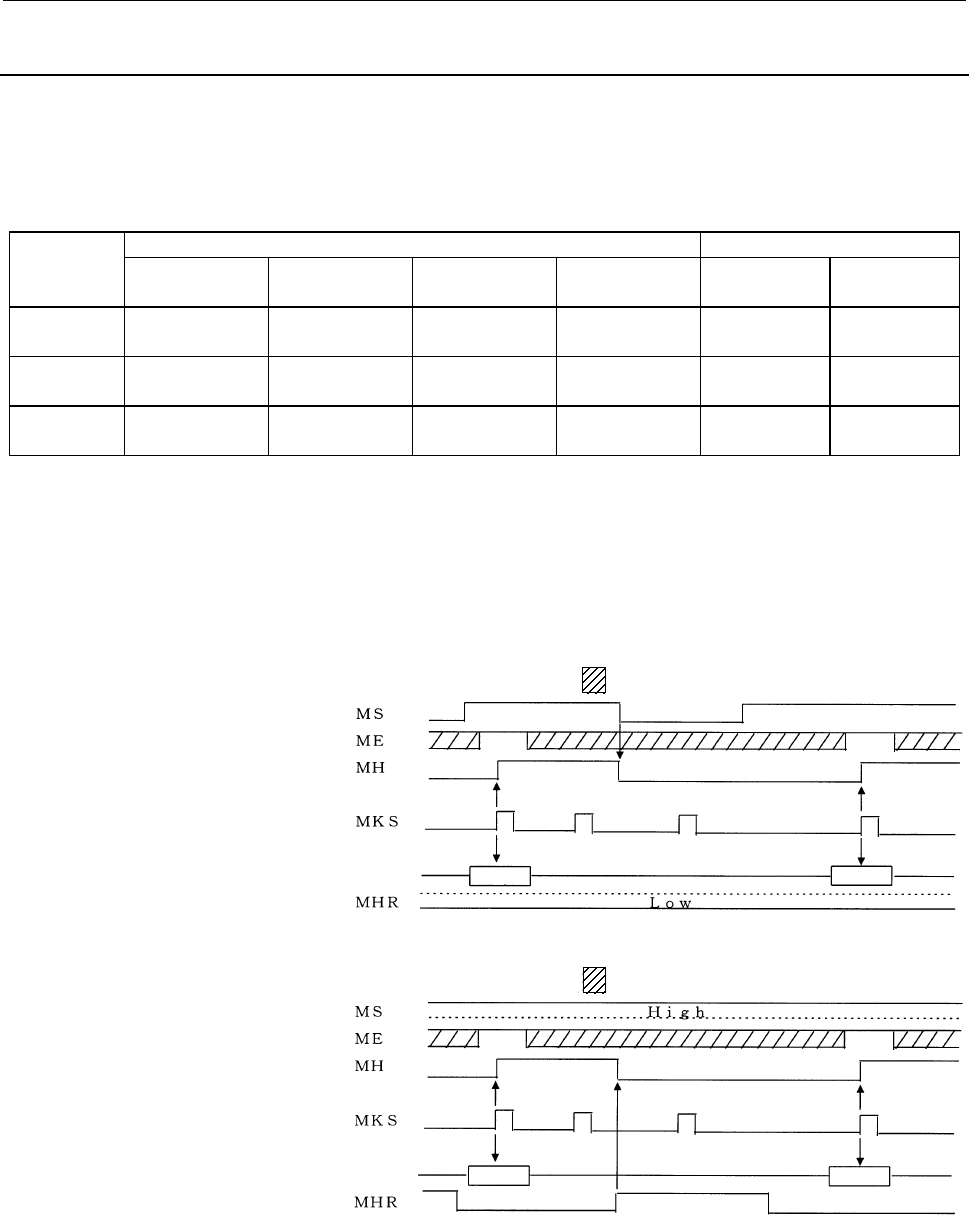

(1) The following table lists the information related to counter
presetting. The MH signal can be reset either by setting the MHR
(bit 7) of the CTRL (control) to 1 or by resetting the MS (bit 6) of
the CTRL to 0. See control examples 1 and 2.
Condition Status
MHR of CTRL MS of CTRL ME of external
signal
MKS of external
signal
ME of STTS MH of STTS
Counter
presetting
0 1 Contact "Closed Initial ↑ 11
MH signal
resetting (1)
× 0 ×××0
MH signal
resetting (2)
1 ××××0
• Contact "Closed" means that 24 V is applied to the ME
terminal.
•× means that the bit can be either 0 or 1. (× for the ME bit of
the STTS means that the bit corresponds to the status of the
ME bit of the external signal.)
Control example 1:
(Hatching
means that the bit can be either 0 or 1.)
Control example 2:
(Hatching
means that the bit can be either 0 or 1.)
Counter
Counter
Preset Preset
PresetPreset
