FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 82

Connection And Maintenance Manual
B-61813E/03 CONNECTIONS 8. HIGH SPEED COUNTER MODULE
−73−
B. Comparison output
The results (OUT0 to OUT7) of comparing the count data in
the pulse counter with the data set in the comparison
registers are output.

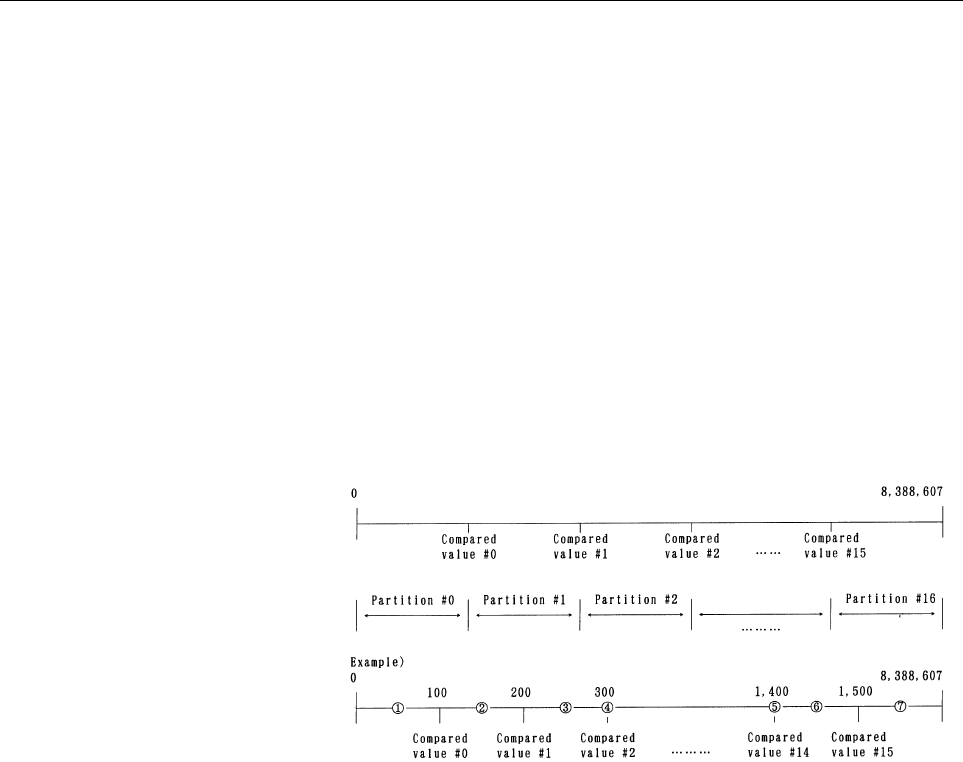

C. Comparison output values
The count data in the pulse counter is compared with the
values in the comparison registers in sequential order from
register 0 until the count data is equal to or less than the value
in a comparison register. This enables a partition to be
madewhich includes the count data. Then the output data for
the partition (which is previously preset) is output. Eight
output points (OUT0 to OUT7) are provided.
If the count data is equal to the value in a comparison register,
the data in the partition having the same number as the
register number is output.
Output data from partition #0 = 0H
Output data from partition #1 = 1H
Output data from partition #2 = 2H
Output data from partition #3 = 3H
Output data from partition #4 = 4H
Output data from partition #5 = 5H
Output data from partition #6 = 6H
Output data from partition #7 = 7H
Output data from partition #8 = 8H
Output data from partition #9 = 9H
Output data from partition #10 = 10H
Output data from partition #11 = 11H
Output data from partition #12 = 12H
Output data from partition #13 = 13H
Output data from partition #14 = 20H
Output data from partition #15 = 21H
Output data from partition #16 = FFH
