FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 56

Connection And Maintenance Manual
B-61813E/03 CONNECTIONS 5. DIGITAL INPUT/OUTPUT MODULES
−47−

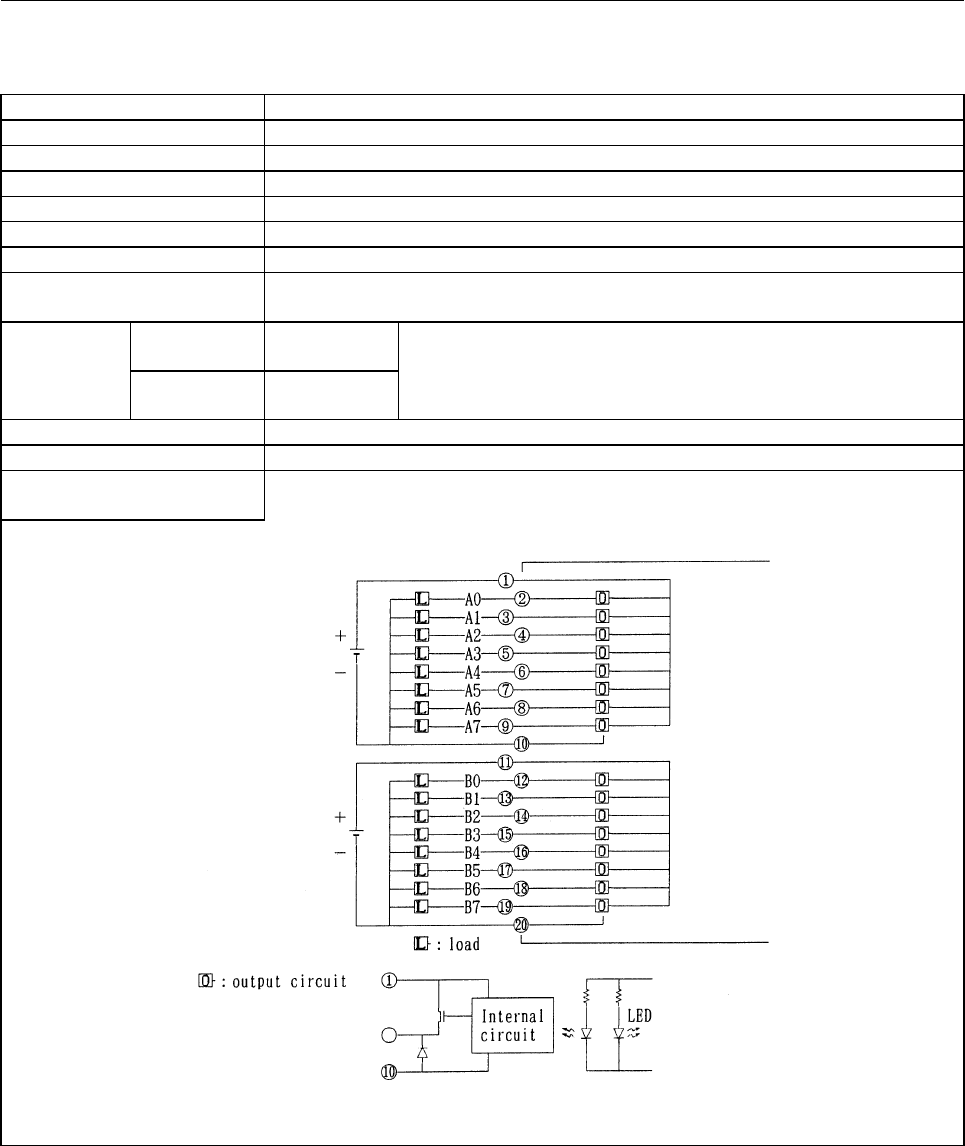

(17) Output module AOD16D
Item Specifications
Points/module 16 points
Points/common 8 points/common
Sink/source current Source current type
Rated load voltage 12 to 24VDC +20%, −15%
Maximum load current 0.5A (however 2A/common)
Maximum voltage drop when ON 0.7V (load current ×1.4Ω)
Maximum leak current when
OFF
0.1mA
OFF→ON
Max.2ms
Response
time
ON→OFF
Max.2ms
This is the value from input to output in the module. The actual value is
determined by adding it to the scanning time depending on each
system.
Output display LED display
External connection Terminal block connector (20 terminals, M3.5 screw terminal)
Terminal connection and
circuitry
