(10) Input module AID32F1
Item Specifications
Points/module 32 points
Points/common 8 points/common
Sink/source current Both directions
Input voltage 24VDC +10%, −20%
Input current 7.5mA (average)
ON voltage, current Min. 15VDC, min. 4.5mA
OFF voltage, current Max. 6VDC, max. 2mA
OFF→ON
Max.2msResponse
time
ON→OFF
Max.2ms
This is the value from input to output in the module. The actual value is
determined by adding it to the scanning time depending on each
system.
Input display Not provided
External connection Connector (HONDA TSUSIN MR-50RMA)

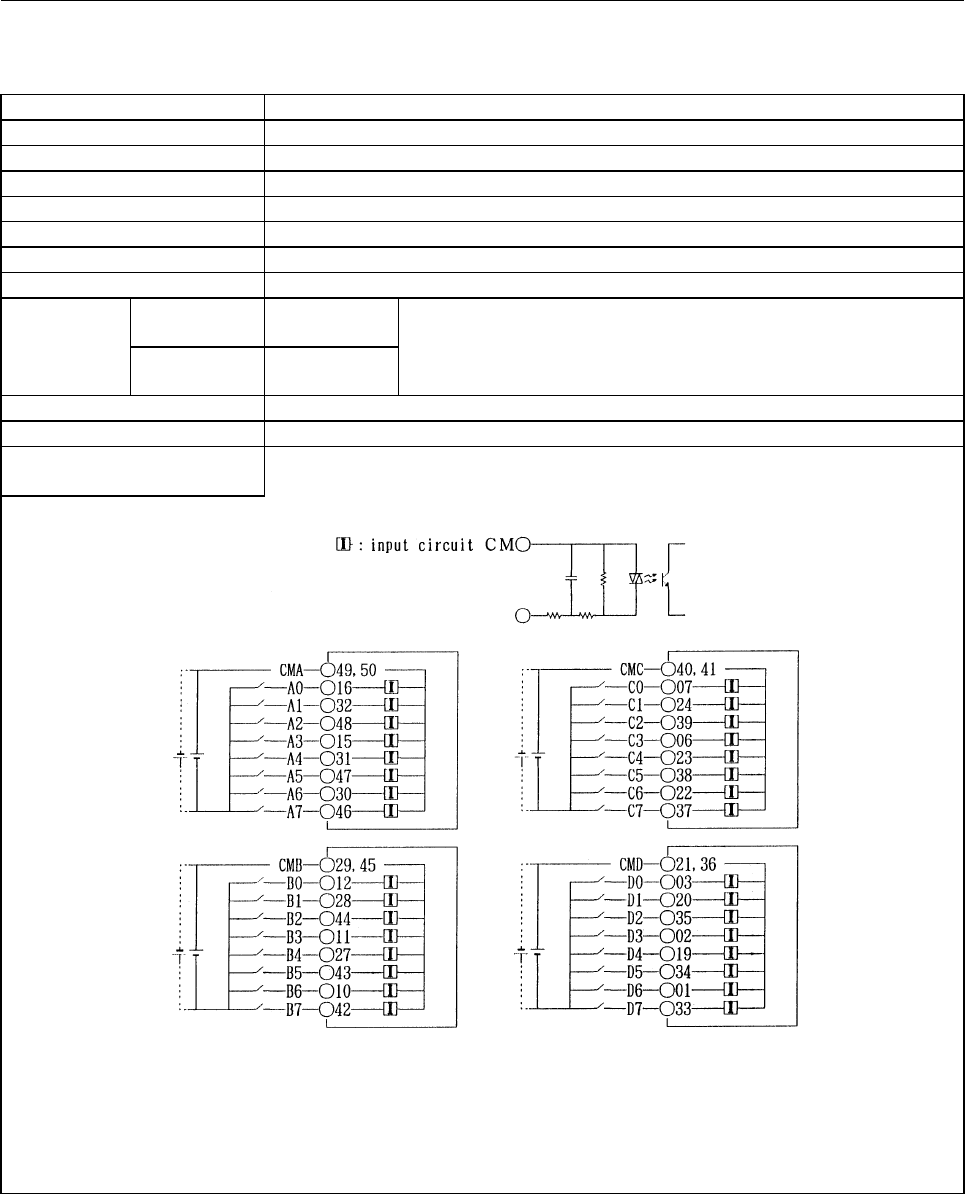

Terminal connection and
circuitry
