FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 54

Connection And Maintenance Manual
B-61813E/03 CONNECTIONS 5. DIGITAL INPUT/OUTPUT MODULES
−45−

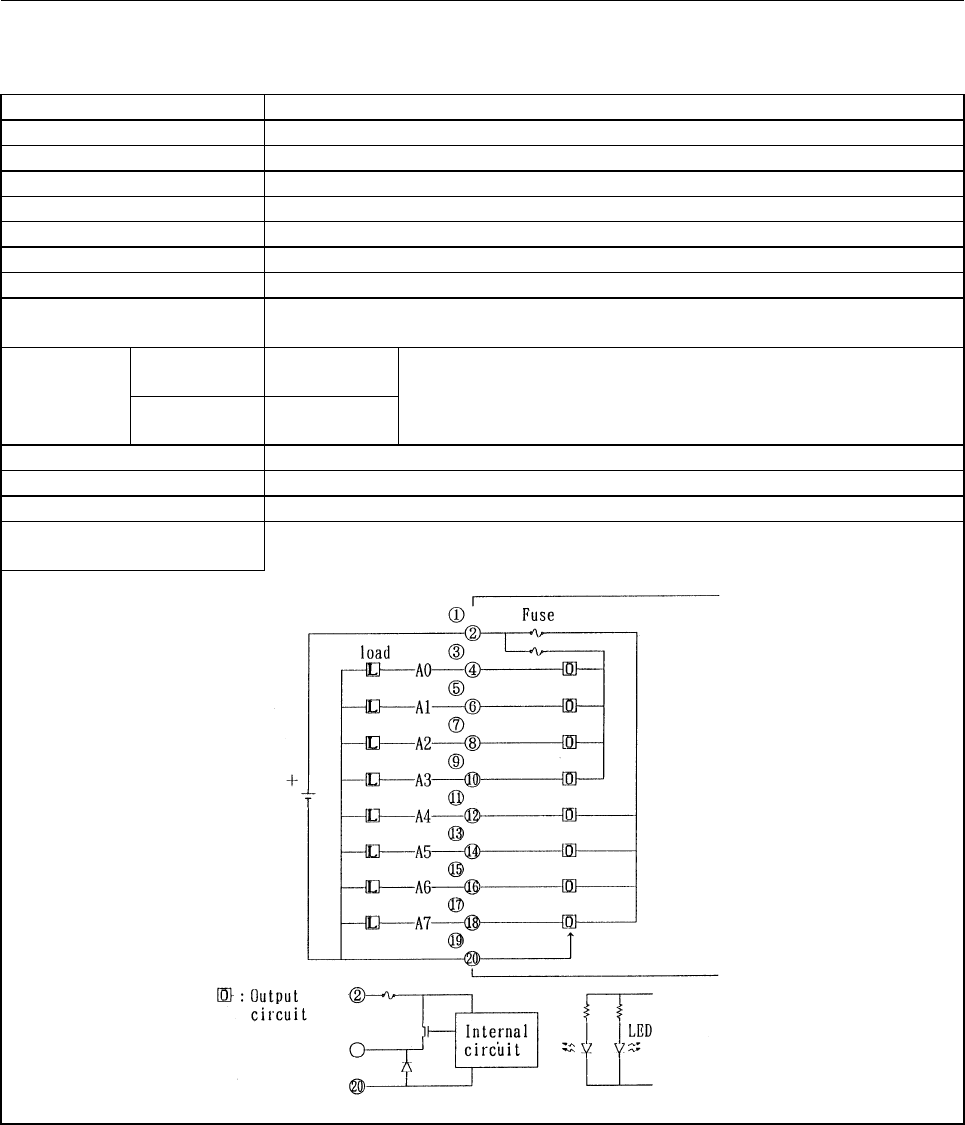

(15) Output module AOD08D
Item Specifications
Points/module 8 points
Points/common 8 points/common
Sink/source current Source current type
Rated load voltage 12 to 24VDC +20%, −15%
Maximum load current 2A (however 4A/fuse)
Limit of load Refer to load derating curve (Fig. 5.3(a))
Maximum voltage drop when ON 1.2V (load current ×0.6Ω)
Maximum leak current when
OFF
0.1mA
OFF→ON
Max.2msResponse
Time
ON→OFF
Max.2ms
This is the value from input to output in the module. The actual value is
determined by adding it to the scanning time depending on each
system.
Output display LED display
External connection Terminal block connector (20 terminals, M3.5 screw terminal)
Fuse 5A, 1 piece for each output A0-A3 and A4-A7.
Terminal connection and
circuitry
