FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 52

Connection And Maintenance Manual
B-61813E/03 CONNECTIONS 5. DIGITAL INPUT/OUTPUT MODULES
−43−

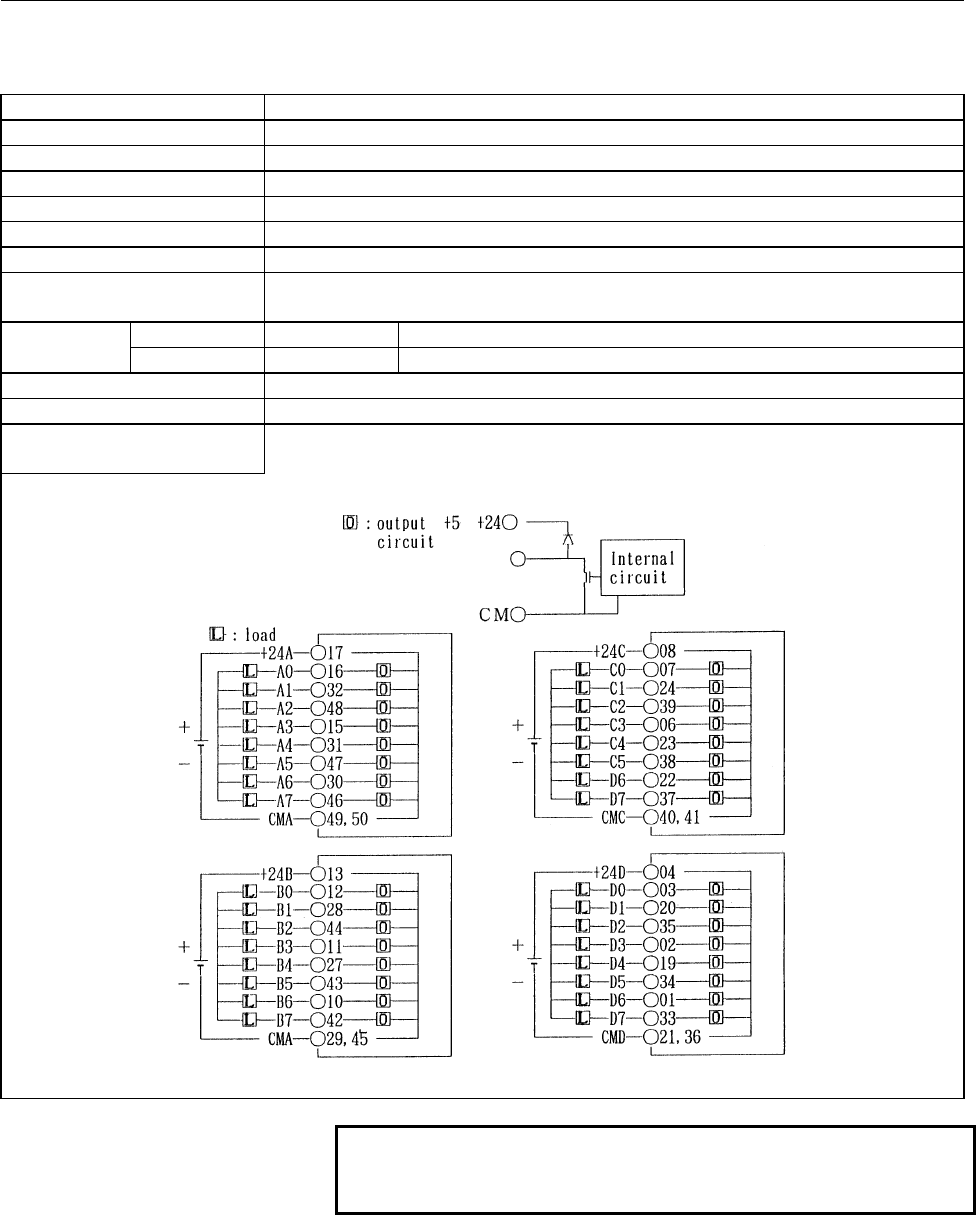

(13) Output module AOD32A1 (Non-insulation type)
Item Specifications
Points/module 32 points
Points/common 8 points/common
Sink/source current Sink current type
Rated load voltage 5 to 24VDC +20%, −15%
Maximum load current 0.3A (however 2A/common)
Maximum voltage drop when ON 0.24V (load current ×0.8Ω)
Maximum leak current when
OFF
0.1mA
OFF→ON
Max.1ms
Response
time ON→OFF
Max.1ms
Input display Not provided
External connection Connector (HONDA TSUSIN MR-50RMA)
Terminal connection and
circuitry
NOTE
For the common (CMA, CMB, CMC, CMD) , make
sure to use both of them.
