FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 64

Connection And Maintenance Manual
B-61813E/03 CONNECTIONS 5. DIGITAL INPUT/OUTPUT MODULES
−55−

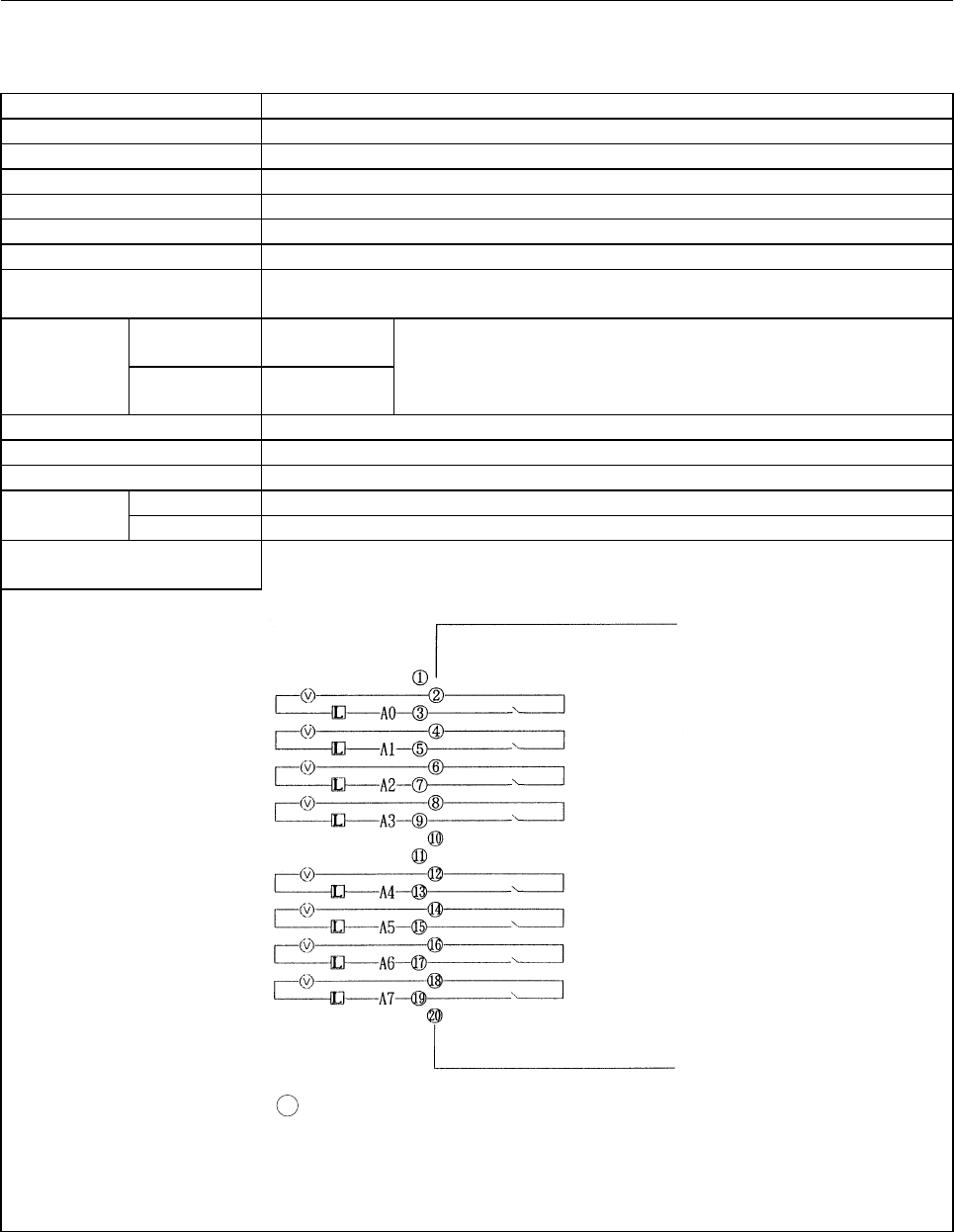

(25) Output module AOR08G
Item Specifications
Points/module 8 points
Points/common 1 points/common
Maximum load 30VDC/250VAC, 4A (resistance load)
Minimum load 5VDC, 10mA
Limit of load Refer to load derating curve (Fig. 5.3 (d))
Maximum voltage drop when ON 1.5Vrms
Maximum leak current when
OFF
1.5mA (115VAC)
OFF→ON
Max.15ms
Response
time
ON→OFF
Max.15ms
This is the value from input to output in the module. The actual value is
determined by adding it to the scanning time depending on each
system.
Output display LED display
External connection Terminal block connector (20 terminals, M3.5 screw terminal)
Fuse 3.2A, 1 piece for each output A0 to A5 and B0 to B5
Mechanical Min. 20,000,000 timesRelay life
Electrical Min. 100,000 times (resistance load)
Terminal connection and
circuitry
V : Direct current power or alternating current power
