FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 78

Connection And Maintenance Manual
B-61813E/03 CONNECTIONS 7. ANALOG OUTPUT MODULE
−69−
• For PMC-M/R (PMC for Series 0/Series 16)
Address
in module 7 6543210
0 D07-0 D06-0 D05-0 D04-0 D03-0 D02-0 D01-0 D00-0
Channel 0
1 - - D13-0 D12-0 D11-0 D10-0 D9-0 D8-0
2 D07-1 D06-1 D05-1 D04-1 D03-1 D02-1 D01-1 D00-1
Channel 1
3 - - D13-1 D12-1 D11-1 D10-1 D9-1 D8-1
D00-n (where n is 0 or 1) corresponds to a weight of 2
0
, and D13-n to a
weight of 2
13
. However, D13-n corresponds to the sign bit of a two's
complement representation.

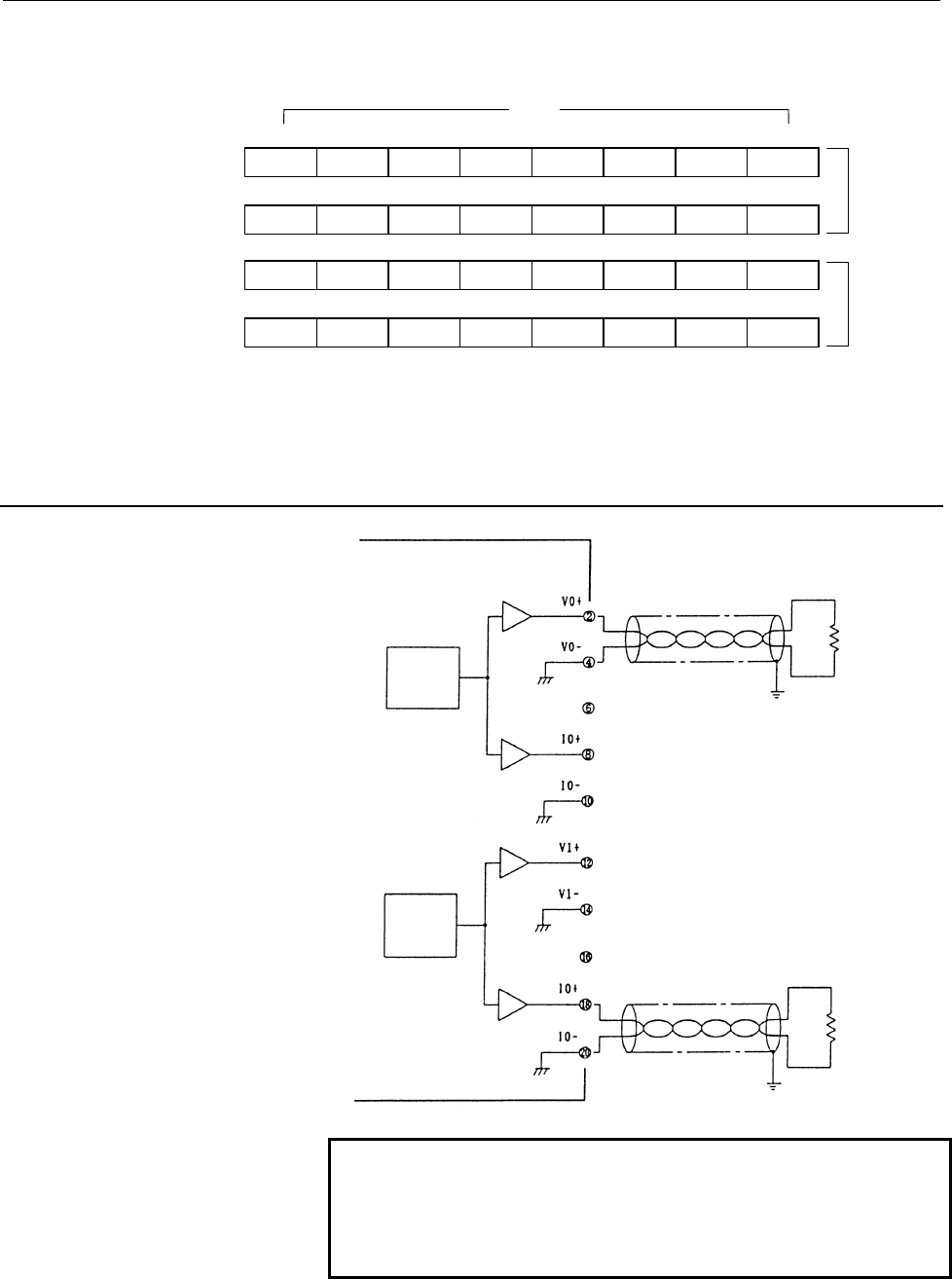

7.2.3 Connection between the Analog Output Module and Load
NOTE
1 Use a shielded 2-conductor twisted pair cable for the
connection between the analog output module and
load.
2 Ground the cable shielding on the load side.
Bits
DA02B
Voltage output
Load
Channel 0
Voltage
10 kΩ or hi
g
he
r
D/A
converter
D/A
converter
Current
amplifier
Current
amplifier
Voltage
Load
Channel 1
Current output
400Ω or lower
