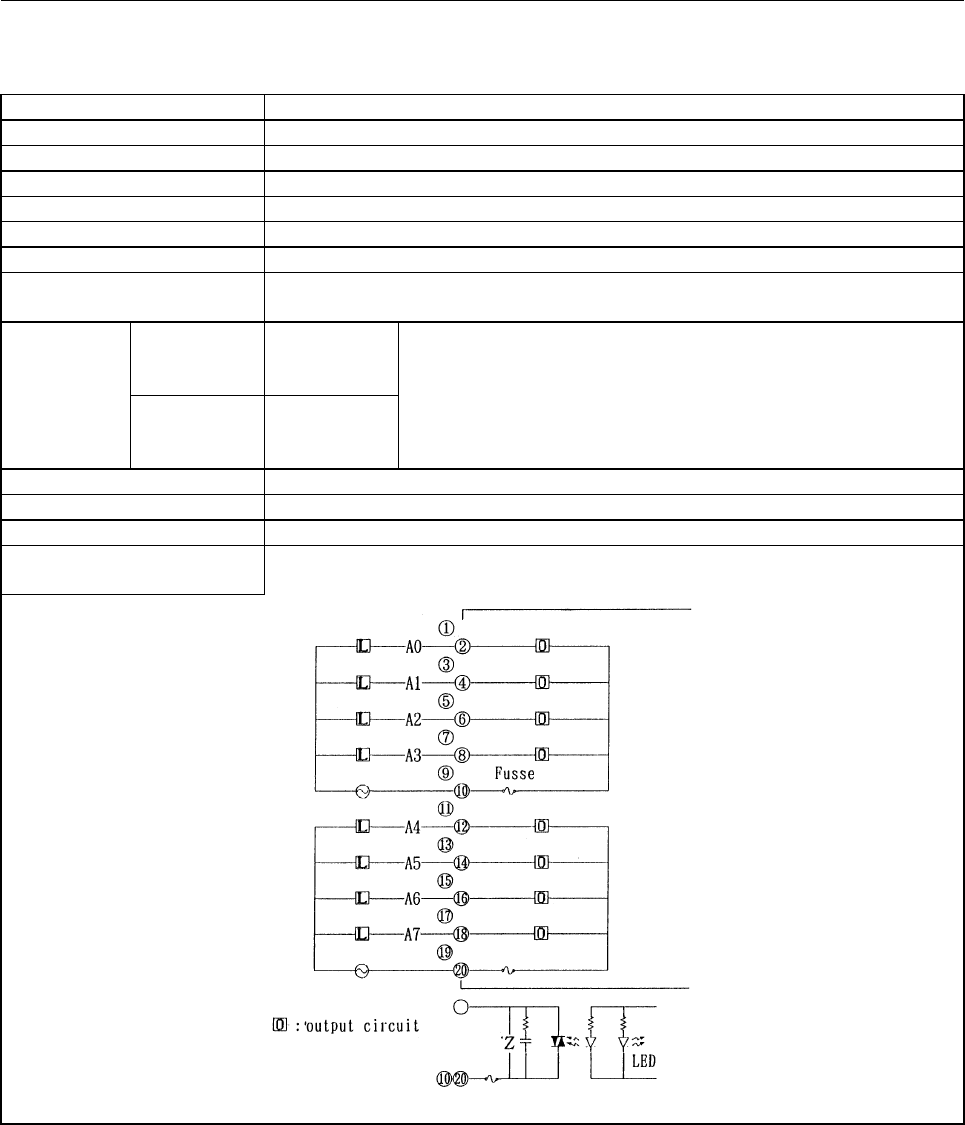

FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 62

Connection And Maintenance Manual
B-61813E/03 CONNECTIONS 5. DIGITAL INPUT/OUTPUT MODULES
−53−
(23) Output module AOA08E
Item Specifications
Points/module 8 points
Points/common 4 points/common
Rated load voltage 100 to 230VAC ±15%, 47 to 63Hz
Maximum load current 1A/point ( howerver 2A/common)
Maximum in rush current 10A ( 1 period)
Maximum voltage drop when ON 1.5Vrms
Maximum leak current when
OFF
3.0mA (115VAC), 6.0mA (230VAC)
OFF→ON
Max.1ms
Response
time
ON→OFF
Half of the load
ferquency or
less
This is the value from input to output in the module. The actual value is
determined by adding it to the scanning time depending on each
system.
Output display LED display
External connection Terminal block connector (20 terminals, M3.5 screw terminal)
Fuse 3.2A, 1 piece for each output A0 to A3 and A4 to A7
Terminal connection and
circuitry
