FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 63

Connection And Maintenance Manual
5. DIGITAL INPUT/OUTPUT MODULES CONNECTIONS B-61813E/03
−54−
(24) Output module AOA12F
Item Specifications
Points/module 12 points
Points/common 6 points/common
Rated load voltage 100 to 115VAC ±15%, 47 to 63Hz
Maximum load current 0.5A/point ( howerver, 2A/common)
Maximum in rush current 5A ( 1 period)
Limit of load Refer to load derating curve (Fig. 5.3 (c))
Maximum voltage drop when ON 1.5Vrms
Maximum leak current when
OFF
1.5mA (115VAC)
OFF→ON
Max.1msResponse
time
ON→OFF
Half of the load
ferquency or
less
This is the value from input to output in the module. The actual value is
determined by adding it to the scanning time depending on each
system.
Output display LED display
External connection Terminal block connector (20 terminals, M3.5 screw terminal)
Fuse 3.2A, 1 piece for each output A0 to A5 and B0 to B5

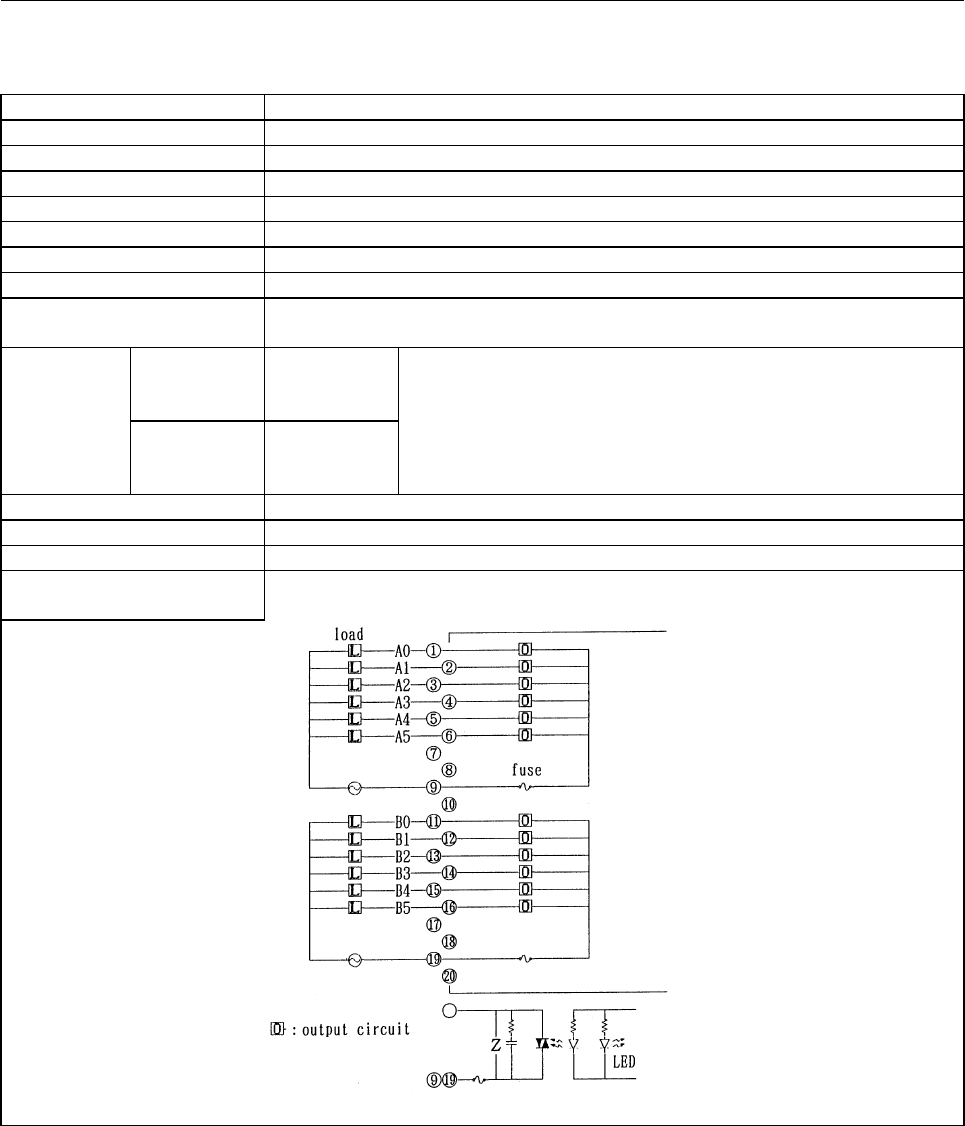

Terminal connection and
circuitry
