FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 178

Connection And Maintenance Manual

Page of 186

/ 186

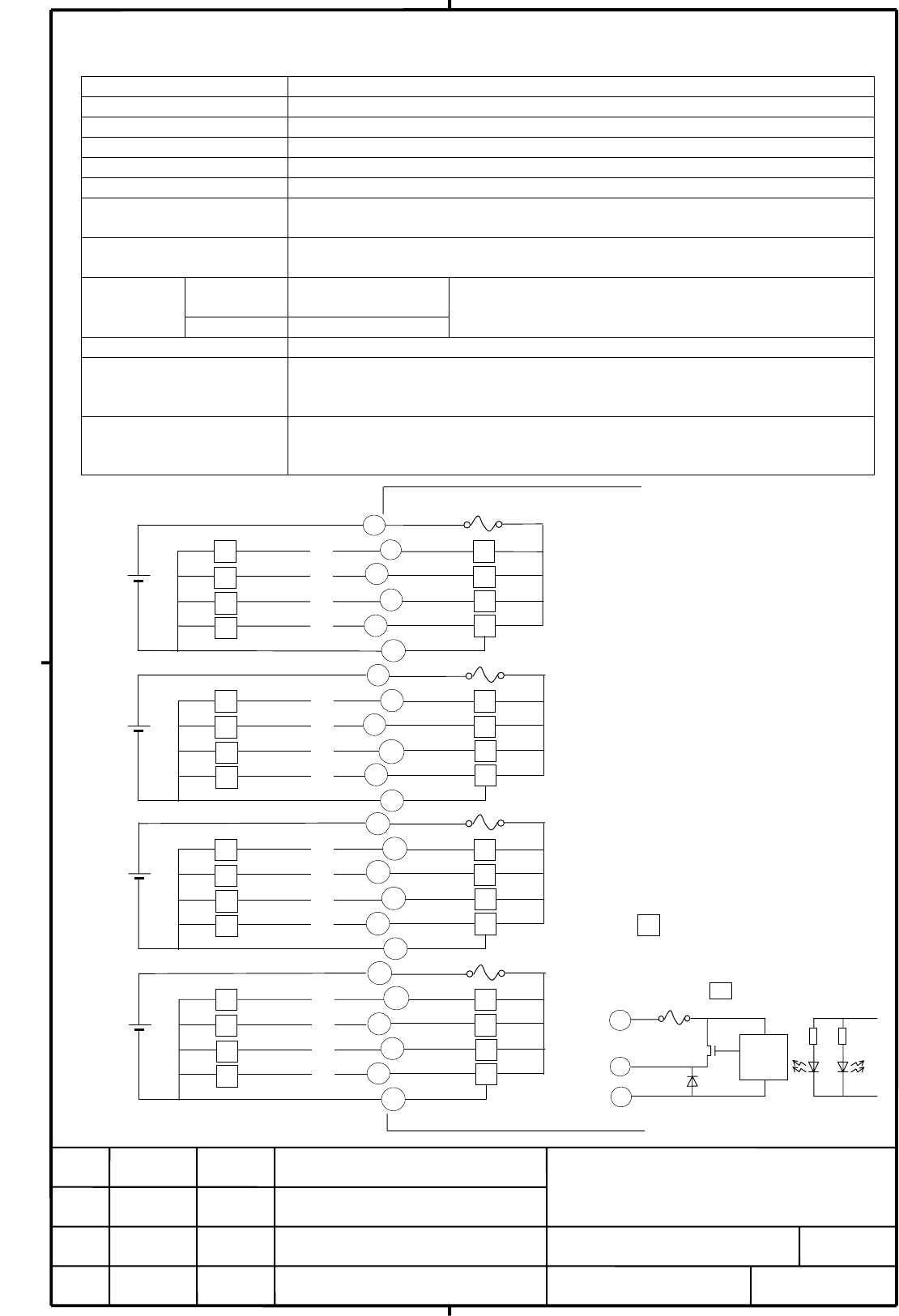

Item Specification

Points / module 16 Points

Points / common 4 points/common

Sink / source current Source current type

Rated load Voltage 12~24VDC +20%, -15%

Maximum load current 2A (4A/common)

Maximum voltage drop

when ON

0.4V (load current × 0.2Ω)

Maximum leak current

when OFF

0.1mA

Response

time

OFFÆON Max.2ms This is the value from input to output in the module.

The actual value is determined by adding it to the

ONÆOFF Max.2ms scanning time depending on each system.

Output display LED display

External connection Terminal block connector (Weidmuller BL 3.5/24/90F 24 terminals)

Clamping range max. 1.5mm

(VDE) / AWG 14(UL/CSA)

Note) Terminal block for cable side is attached with this module.

Fuse 5A, 1piece for each output A0-A3, A4-A7, B0-B3 and B4-B7.

MP50:(A60L-0001-0046#5.0) Daito Communication Apparatus Co.,Ltd.

Fuse set (A03B-0819-K104) 4 fuses are set

per a drawing number.

EDIT

FANUC

SHEET

DRAW. NO.

CUST

TITLE

DESCRIPTION

DESIG. DATE

02 04.12.10 Yamanak Out of frame #2 is added

FANUC I/O Unit-MODEL

16pt DC output module

(AOD16D3)

B-61813E/03-4

Ordering specification : A03B- 0819 -J185 Unit drawing No. : A03B- 0819 -C185

PCB drawing No. : A20B-8002-0520

Terminal connection and circuitry

Internal

circuit

LED

:Output circuit

Output terminal

Fuse 5A

:Load
