  2. FANUC I/O Unit-MODEL A

FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 171

Connection And Maintenance Manual
Item Specification
Points / module 16 Points
Points / common 8 points/common
Sink / source current Source current type
Rated load Voltage 12~24VDC +20%, -15%
Maximum load current 0.3A (2.4A/common)
0.5A (2A/common) Refer to load reduction curve
Maximum voltage drop
when ON
0.63V (load current × 1.25Ω)
Maximum leak current
when OFF
40µA
Response
time
OFFÆON Max.2ms This is the value from input to output in the module.
The actual value is determined by adding it to the
ONÆOFF Max.2ms scanning time depending on each system.
Output display LED display
External connection Terminal block connector(20 terminals, M3.5 screw terminals)
EDIT
FANUC
SHEET
DRAW. NO.
CUST
TITLE
03
04.3.23
Yamana
2
/
3
DESCRIPTION DESIG. DATE
02 04.2.24 Yamana Out of frame #2 is added / altered
Out of frame #3 is altered

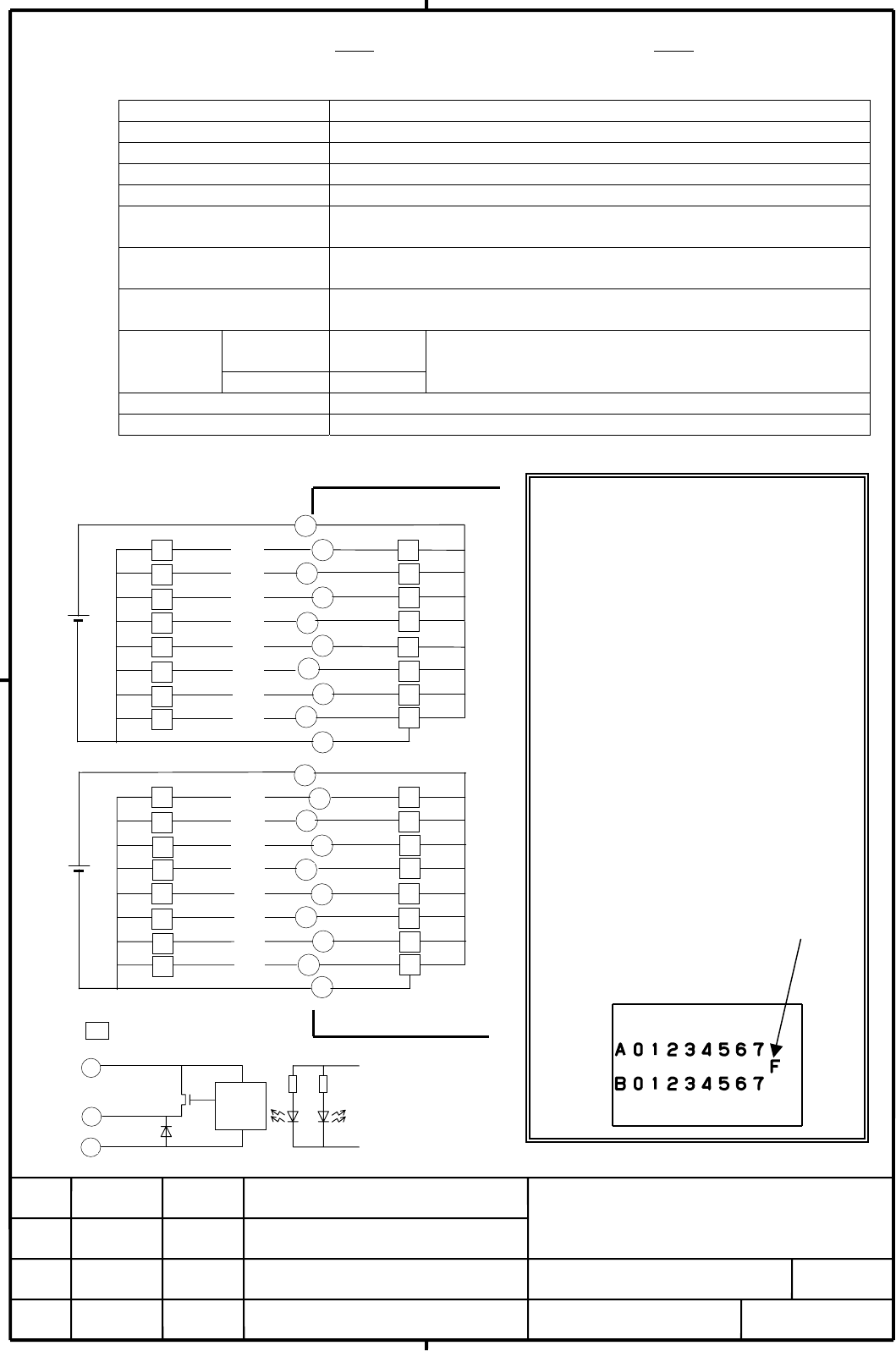

FANUC I/O Unit-MODEL
A
16pt DC output module with short
circuit protection (AOD16DP)
B-61813E/03-1
-Short circuit protection-
The DO driver of this module is
capable of detecting an overcurrent
and measuring its own temperature. I
f
an accident (such as the connecting o
f
the cable to ground, causes an
abnormal increase in the load current
or in the driver temperature), a
protection circuit that is provided
for each DO driver (4 bits) is activated
and keeps the DO signal for the
relevant 4 bits in the OFF state until the
cause of the problem is eliminated.
If an accident occurred, the LED of "F"
is turned on.
0819 0819
Ordering specification : A03B- 0807
-J182 Unit drawing No. : A03B- 0807 -C182
PCB drawing No. : A20B-8002-0070
