FANUC SERIES 15-150 MODEL B Maintenance manual Page 111

Maintenance manual

Page of 420

/ 420

B–62075E/04

2. HARDWARE

The CNC cables that required shielding should be clamped by the method

shown below. This cable clamp treatment is for both cable support and

proper grounding of the shield. To insure stable CNC system operation,

follow this cable clamp method.

Partially peel out the sheath and expose the shield. Push and clamp by

the plate metal fittings for clamp at the part. Metal fittings for clamp are

attached to the control unit. The ground plate must be made by the

machine tool builder, and set as follows:

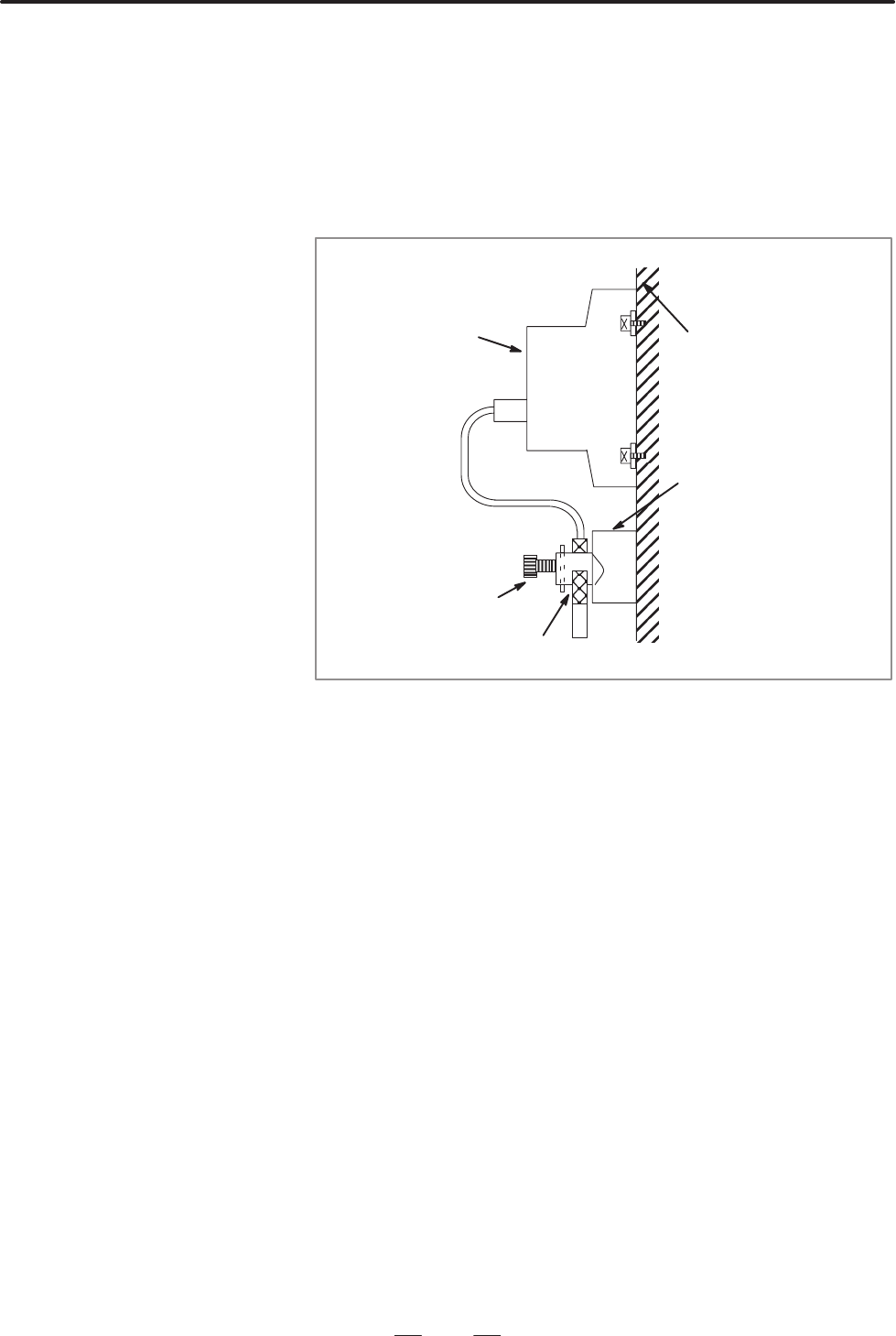

Control unit

Machine side

installation

board

Ground plate

Metal fittings

for clamp

Shield cover

Use a cable of the appropriate length. A cable that is longer than necessary

is undesirable because immunity to noise is likely to degrade and the cable

may induce noise on another cable. If the excess length of cable is coiled,

increased inductance will result. Such an increased inductance may

induce a very high voltage when a signal is turned on or off, and could

cause a failure or noise–based malfunction.

D Cable clamp and shield

processing
