B–62075E/04

5. TROUBLESHOOTING

273

WARNING

Maintenance of a CNC unit involves many dangers and,

therefore, must be performed only by a qualified technician.

Confirm the green LED PIL and red LED ALM on the front of power unit.

1) Proceed to item 1 when green LED PIL is turned off.

2) Proceed to item 2 when green LED is lit and red LED AML is turned

off.

3) Check item 3 when red LED ALM is lit.

(1)Fuse F1 or F2 on the power unit front panel is blown.

(a) Input power voltage is too high.

(b)Power unit is faulty.

(2)Input voltage is low

Measure voltage at R and S terminals of connector CPI to confirm

appropriate voltage is supplied.

If it is not normal, check machine side magnetics circuit.

200VAC, –15%, 50/ 60Hz, "1Hz, 1φ

240VAC, +10%, 60Hz, "1Hz, 1φ

(3)Power supply unit is faulty.

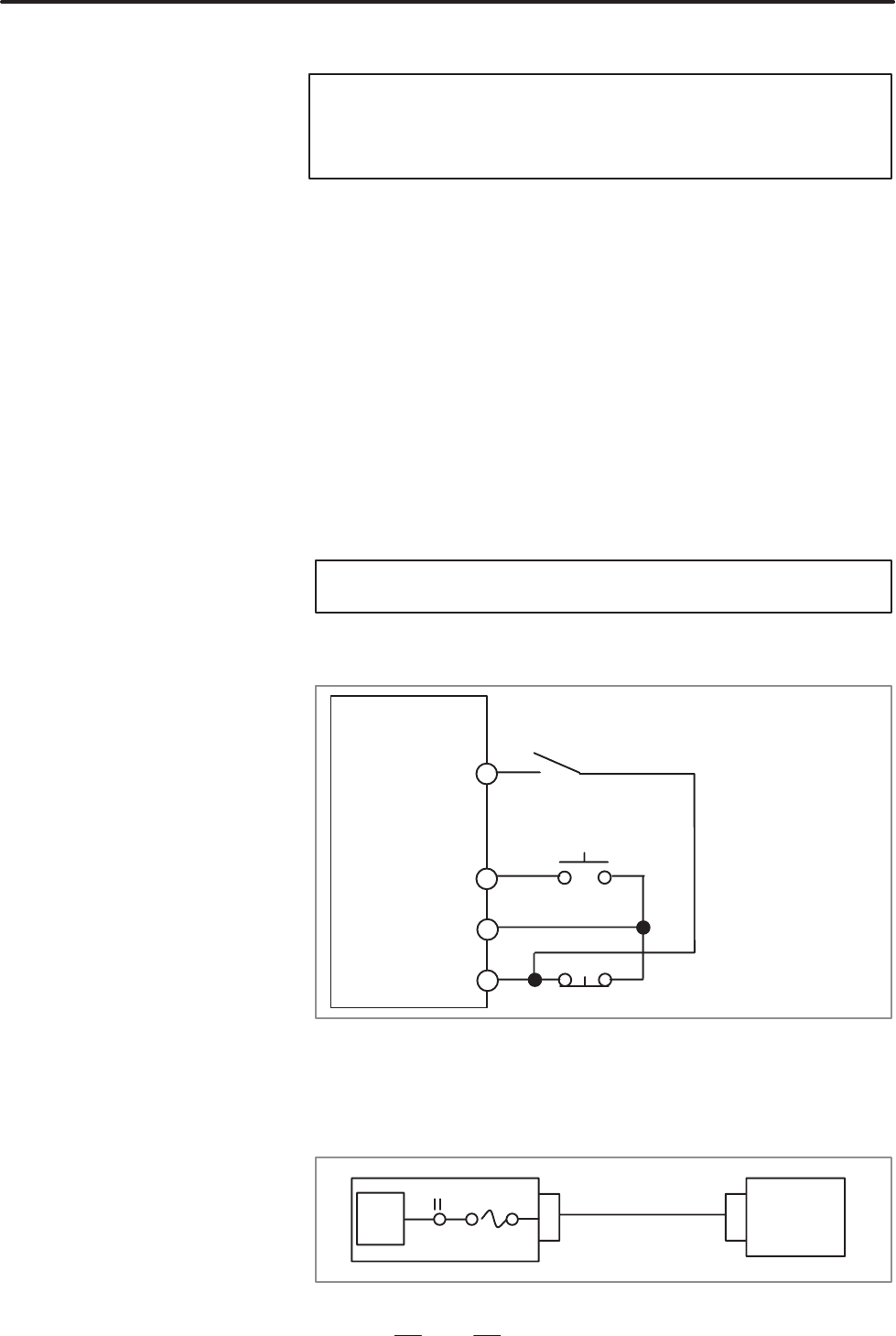

Conditions for power on are as follows:

COM

OFF

ON button

OFF button

Contacts of external alarm

is open.

Contacts of power on is

closed.

Contacts of power off is

closed.

Power supply unit

Fig. 5.2 (a)

For details, refer to 2.5.1 Configuration of the Power Supply Unit.

(1)Fuse F3 is blown on the front panel of power unit

Check whether +24V is short–circuited or grounded. (See Fig. 5.2(b)).

Regu

lator

+24V

CP5 CP2

9ICRT/MDI

Unit

5.2

POWER CANNOT BE

TURNED ON

Points

Causes and Remedies

1. LED is turned off

2. Conditions for power on

are not satisfied.

(PIL is lit and ALM is off)

3. LED ALM is lit
