FANUC SERIES 15-150 MODEL B Maintenance manual Page 221

Maintenance manual
B–62075E/04
3. INPUT AND OUTPUT OF DATA
201

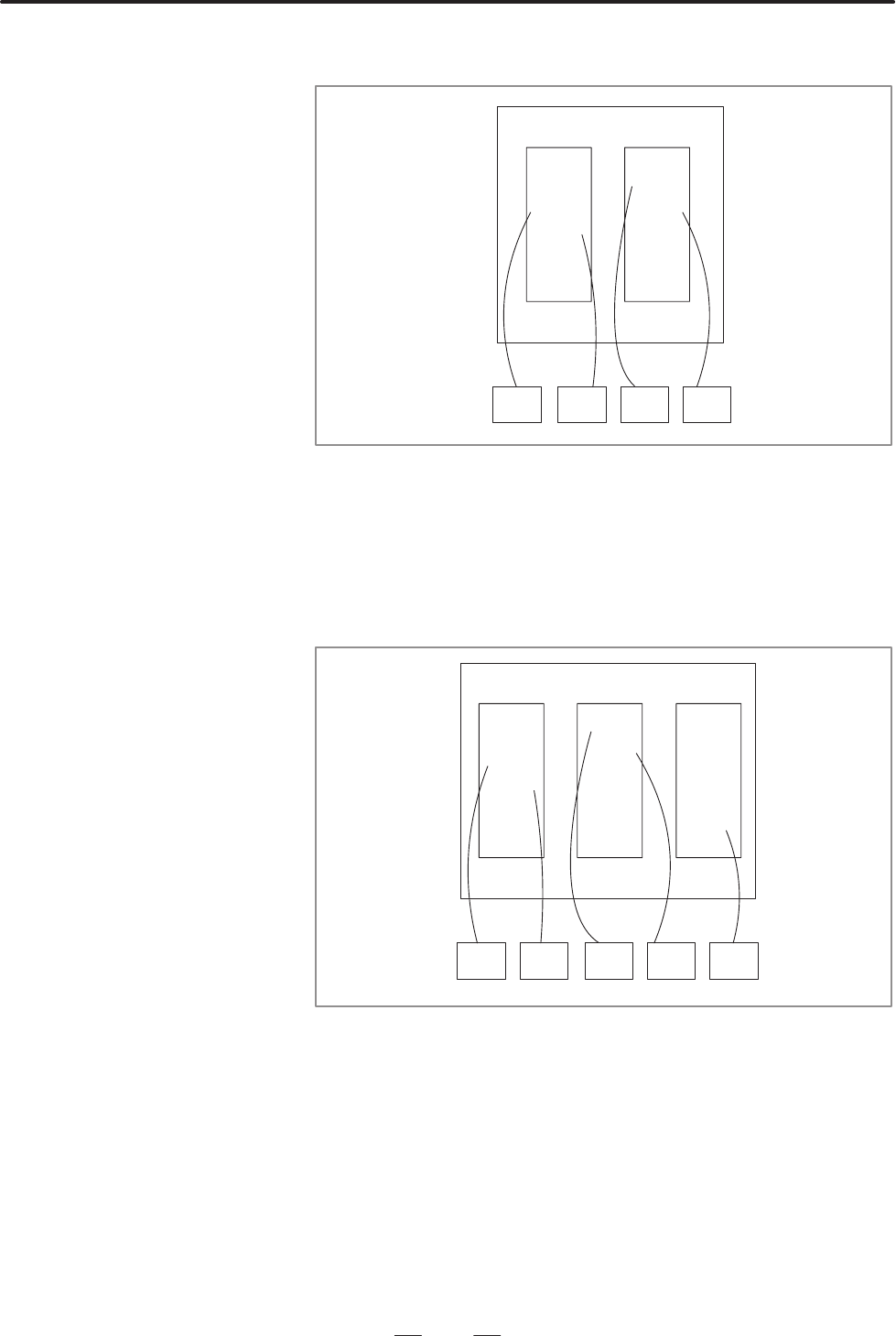

2) Main CPU board + Additional axis board (SUB, ADAX)
R/P R/PR/P R/P
Main
Series 15–B
SUB
JD5A
JD5B
JD5J
JD6D
Channel 1 : JD5A of the main CPU board
Channel 2 : JD5B of the main CPU board
Channel 3 : JD5J of the sub–board
Channel 13 : JD6D of the sub–board
3) Main CPU board + Sub–board (additional axis) + Option 1 board (with
communication functions)
R/P R/PR/PR/P R/P
Main
Series 15–B
SUB
JD5A
JD5B
JD5C
JD6A
OP 1
JD5J
JD6D
Channel 1 : JD5A of the main CPU board
Channel 2 : JD5B of the main CPU board
Channel 3 : JD5J of the sub–board
Channel 13 : JD6D of the sub–board
Channel 10 : JD5C or JD6A of OP1.
Only one of the two can be used.
Which is used is specified with bit 0 of parameter
No. 5000.
Connector for RS–232–C : JD5A, JD5B, JD5C, JD5J
Connector for RS–422 : JD6A, JD6D
