B–62075E/04

2. HARDWARE

195

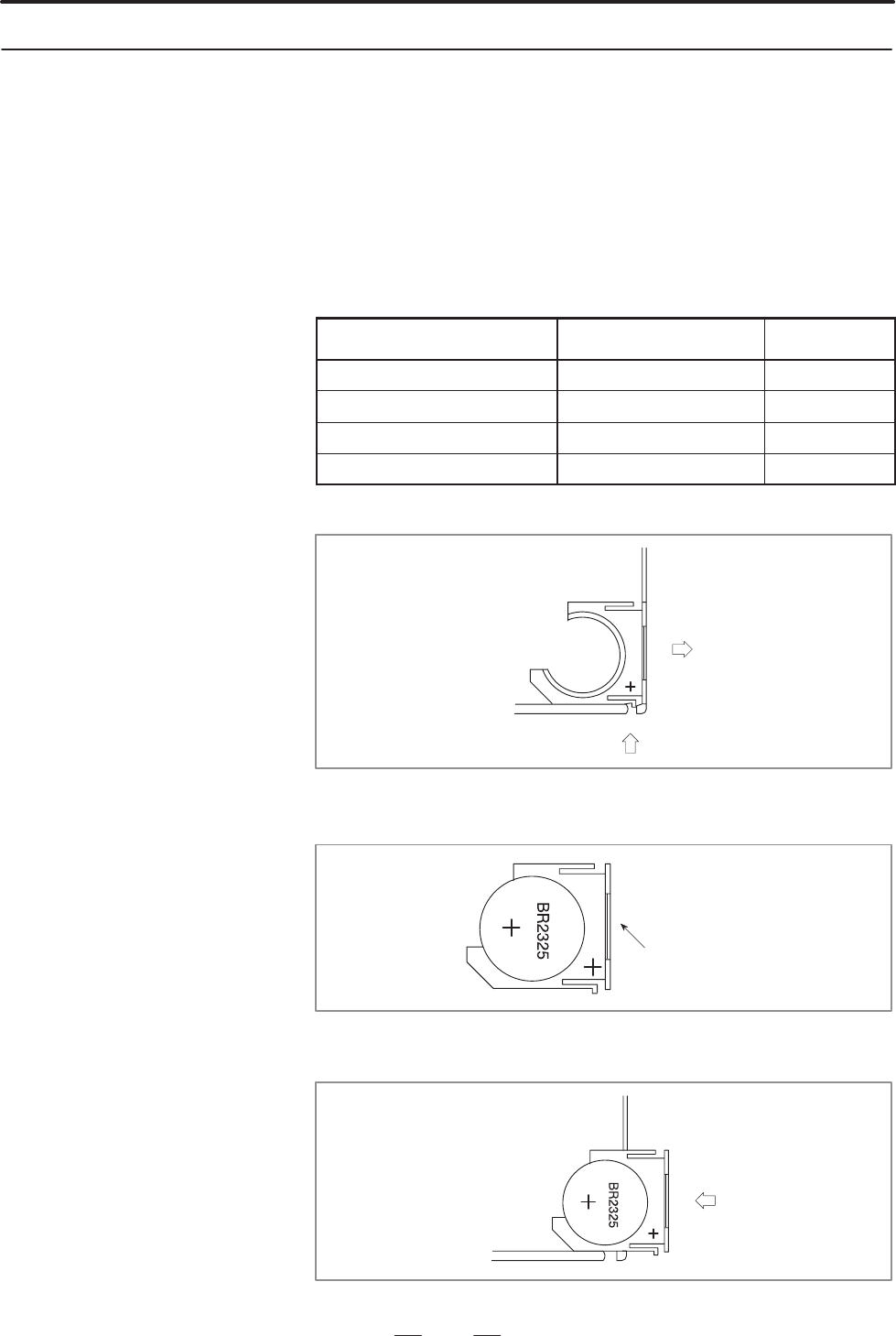

A BR2325 or equivalent battery is used.

The lives of batteries are listed below. Note that the life of a battery

depends on its environment, including the ambient temperature. So, the

values given should be used for reference only.

(Ambient temperature: 20°C)

Drawing number Manufacturer model Battery life

A87L–0001–0150#256K MB98A90823–20 About 1 year

A87L–0001–0150#512K MB98A90923–20 About 6 months

A87L–0001–0150#1M MB98A91023–20 About 1 year

A87L–0001–0150#2M MB98A91123–20 About 6 months

(1)While holding down the locking clip, pull out the battery case.

(2)Replace the battery with a new one.

Align the + mark of the new battery with the + mark on the battery case.

Battery case

(3)Reinstall the battery case, then check that the battery operates

normally.

2.18.5

Replacing the Battery

D Battery

D Battery life

D Replacing the battery
