1. OPERATION OF MDI PANEL
35

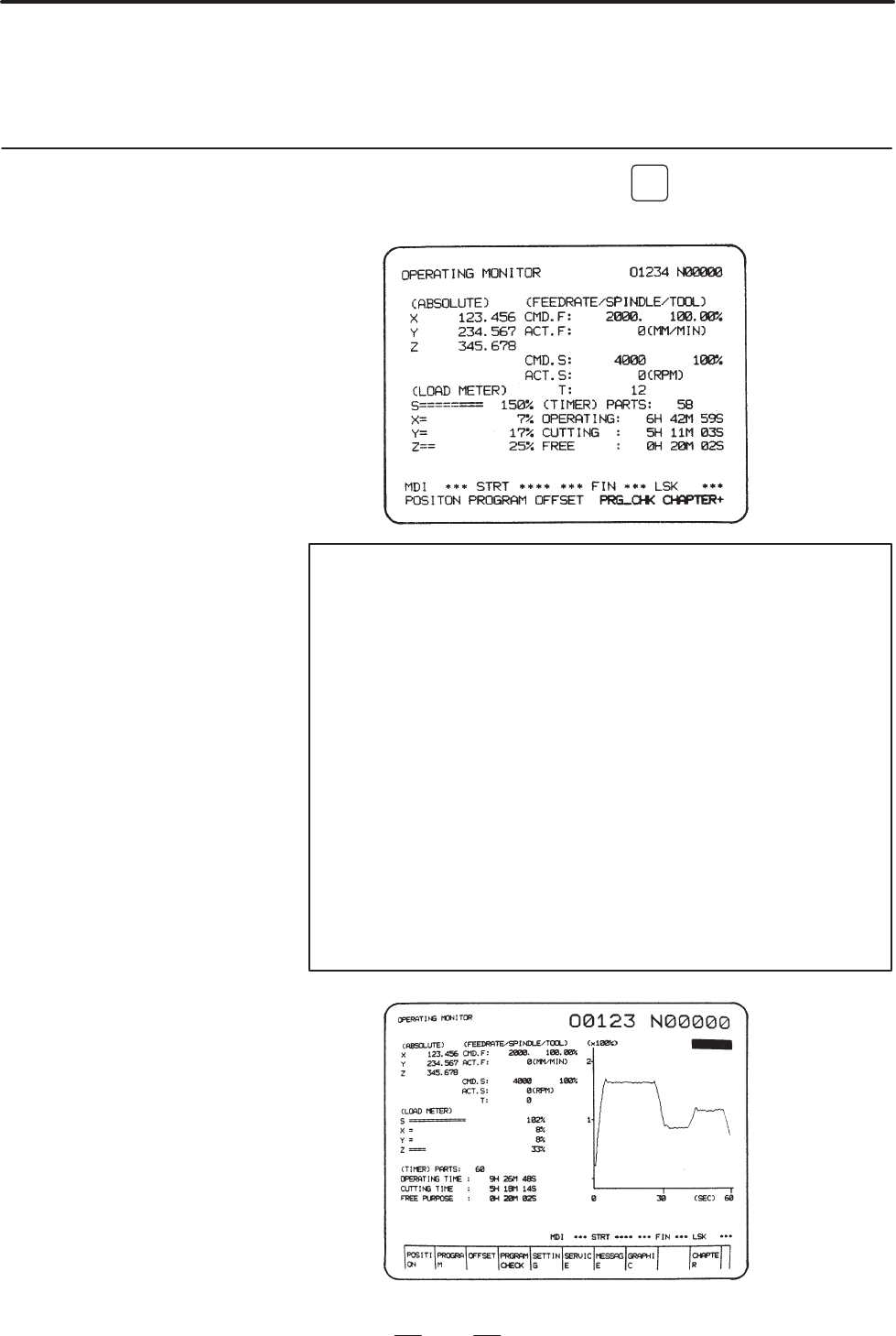

1. Press the <PRG–CHK> soft key or
P–CHECK
key.
2. Press the <OPE.MNTR> key.
NOTE
1 Set the numbers of the axes whose load is to be displayed
in parameter Nos. 2231 to 2333. Set the rated load of the
motor corresponding to each load meter in parameter Nos.
2234 to 2237. When the applied load reaches the rated
load, the load meter indicates 100%.
2 Load meter data is displayed using a bar graph and
percentages. The range of the bar graph is 0% to 200%.
100% is indicated by a change in color on the 14″ screen or
a change in brightness on the 9″ CRT screen.
3 The 14″ CRT screen displays a graph indicating the
fluctuations in load over one minute. One screen displays
the fluctuations for one load meter. The cursor keys <↑>
and <↓> can be used to select the load meter for which this
type of graph is to be displayed.
1.8
OPERATING
MONITOR SCREEN
1.8.1
Display Method
Previous page
Next page
