FANUC SERIES 15-150 MODEL B Maintenance manual Page 365

Maintenance manual

Page of 420

/ 420

B–62075E/04

B. BOOT SYSTEM

APPENDIX

347

A user file is written to a memory card from flash memory. A user file

stored in flash memory can be saved to a memory card, but no system files

can be saved.

(1)

(2)

(3)

(5)

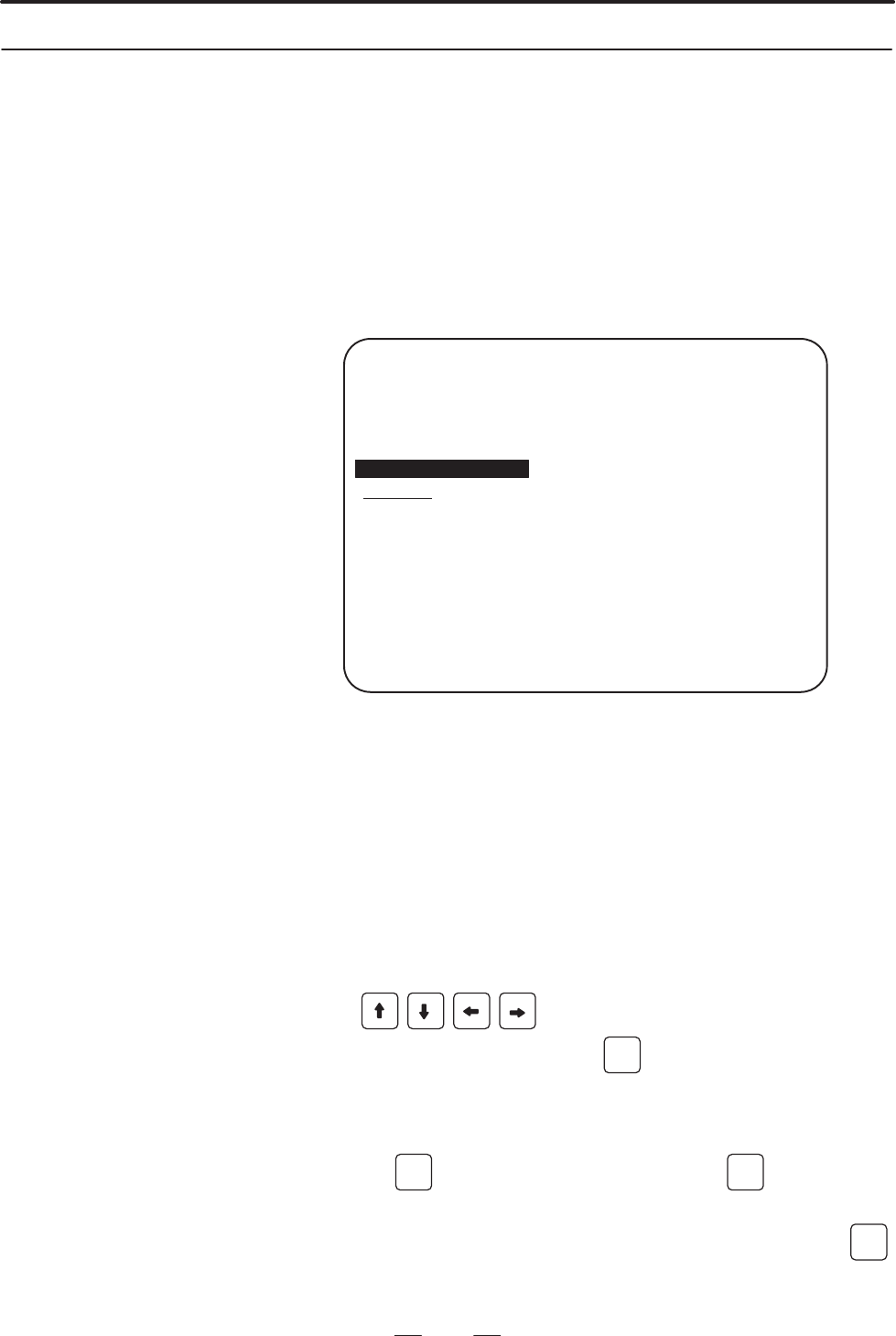

SYSTEM DATA SAVE

FILE DIRECTORY

1. OPTIONA2 ( 2)

2. DG SERVO ( 1)

3. NC BASIC ( 8)

4. PMC–NAOB ( 1)

(4) END

*** MESSAGE ***

SELECT FILE AND HIT INPUT KEY

(1) : Title

(2) : Flash memory directory display

(3) : ROM file name. The number of management units used is

indicated in parentheses.

(4) : Ending the processing

(5) : Message field

(For example, a quick operation guide may be displayed.)

The ROM files in flash memory are listed together with the number of

management units (128KB management units) in each file. Press a cursor

key (

) to position the cursor to the file to be saved

to a memory card. Then, press the

INPUT

INSERT

key.

The INPUT FILE NAME (CAN: RESET) message appears in the

message field. Enter the name of the desired file on the memory card, then

press the

INPUT

INSERT

key. To abandon saving, press the

RESET

key.

To end the processing, position the cursor to END, then press the

INPUT

INSERT

key. The main menu appears again.

B.2.3

SYSTEM DATA SAVE

Screen

D Description

D Screen configuration

D Operating procedure
