5. TROUBLESHOOTING
300
A parameter setting related to the reader/punch interface is invalid.

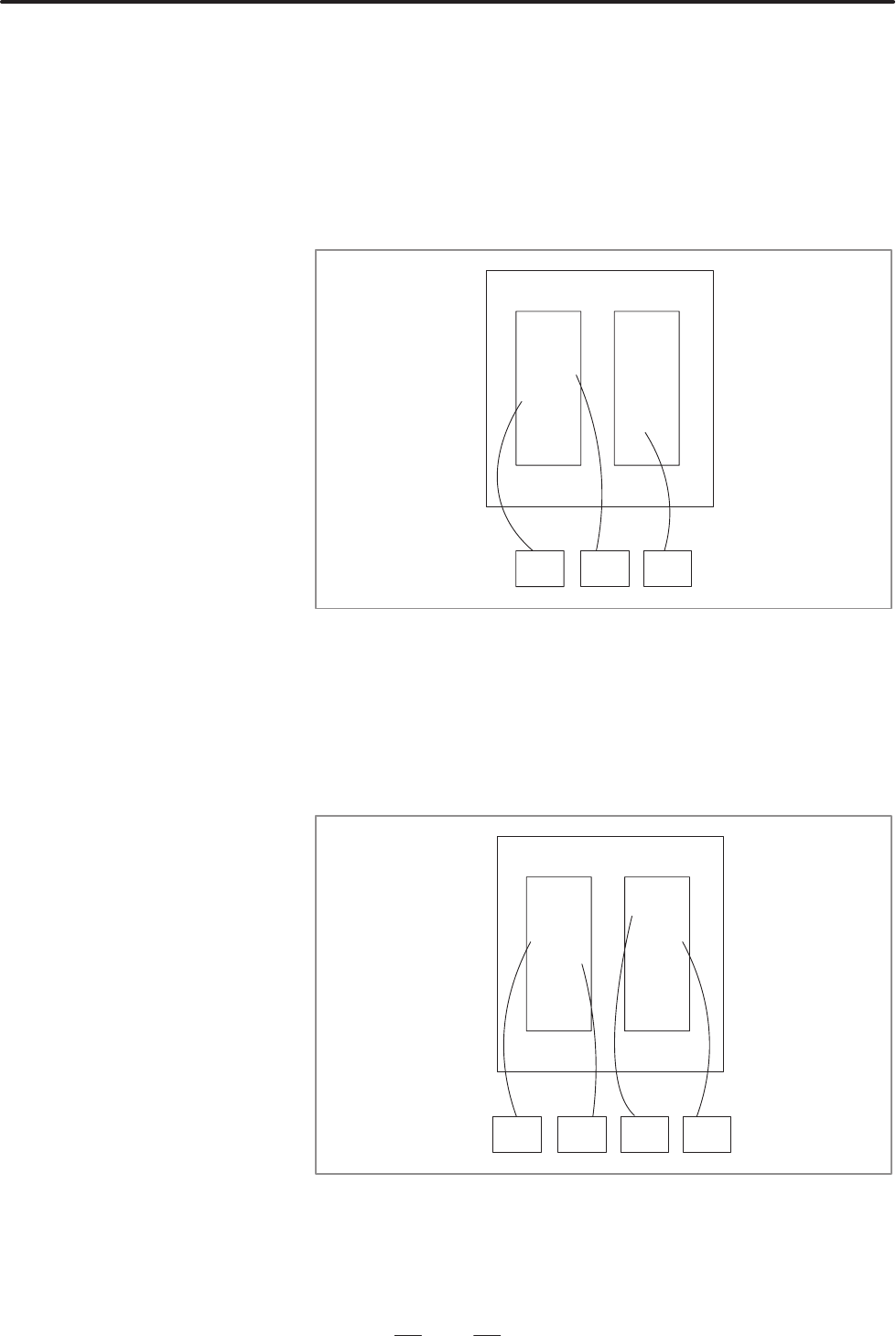

Correlation diagrams for parameters related to reader/punch interfaces are
given below.
Parameters related to the reader/punch interface
The correlation diagrams of the parameters related to the reader/punch
interface are given below.
1) Main CPU board + Option 1 board (with communication functions)
Main
Series 15–B
OP 1
R/P R/P R/P
JD5A
JD5B
JD5C
JD6A
Channel 1 : JD5A of the main CPU board
Channel 2 : JD5B of the main CPU board
Channel 10 : JD5C (RS–232–C) or JD6A (RS–422) of OP1.
Only one of the two can be used.
Which is used is specified with bit 0
of parameter No. 5000.
2) Main CPU board + Additional axis board (SUB, ADAX)
R/P R/PR/P R/P
Main
Series 15–B
SUB
JD5A
JD5B
JD5J
JD6D
Channel 1 : JD5A of the main CPU board
Channel 2 : JD5B of the main CPU board
Channel 3 : JD5J of the sub–board
Channel 13 : JD6D of the sub–board
Action a
D Parameters related to
reader/punch interfaces
Previous page
Next page
