FANUC SERIES 15-150 MODEL B Maintenance manual Page 202

Maintenance manual

Page of 420

/ 420

B–62075E/04

2. HARDWARE

182

It is necessary to regulary clean the heat transformer, because the heat

transformation ability will be reduced by the accumulation of dust. The

frequency of the cleaning needed differs according to the installation

environment and therefore should be determined by your own judgment

accordint to the degree of dirt.

Air filter cleaning and replacement method

1 When cleaning and replacing the filter, be sure to cut off the fan’s

electric power source.

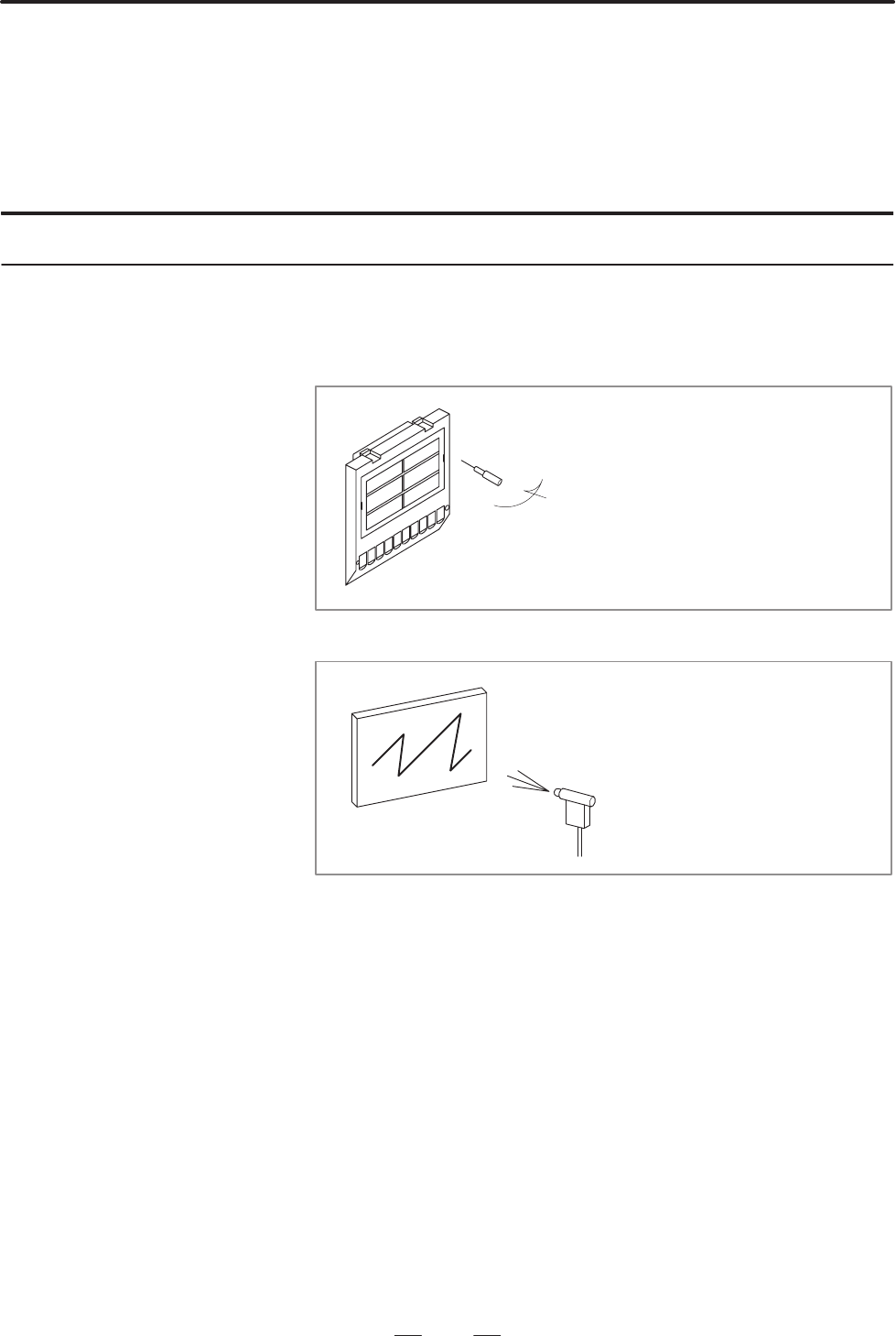

2 Detach the filter cover and take out the filter inside.

Detach the cover by pressing, the flanges

which are in the grooves of both sides

towards the inside by minus screwdriver, etc.

3 Protect the filter from silting due to dust by blowing air on both sides.

4 When dirt is conspicuous, press wash with a neutral detergent, rinse

with fresh water, and the washing, allow to dry naturally. When

replacing with the same product.

5 Insert the filter in the cover, align the flange in the groove, and install

by pressing. Confirm that the cover will not come loose even if it is

pulled.

2.11

MAINTENANCE OF

HEAT PIPE TYPE

HEAT EXCHANGER
