B–62075E/04

4. INTERFACE BETWEEN NC AND PMC

234

1. Use the cursor keys to change display positions.

2. [TOP]:Searches top of ladder.

3. [BOTTOM]:Search bottom of ladder.

4. Address.bit,[SRCH] or Signal name, [SRCH]

5. Address.bit,[W–SRCH] or Signal name ,[W–SRCH]

6. Net no.[N–SRCH]:Ladder is displayed from the specified net.

7. Functional instruction no. [F–SRCH] or Functional instruction name

[F–SRCH]

8. [ADRESS]:Signal is displayed by address and bit no.

9. [SYMBOL]:Signal is displayed by signal name (symbol).

(If symbol is not registered at program preparation time, the address

of the signal is displayed).

[Remarks]

⋅ The search function searches a signal in the forward direction and

displays the ladder with the searched signal at its head. Because there

may exist plural contacts, repeat the search operation to find plural

locations, repeat the search operation to find plural locations with the

specified signal.

⋅ If a specified signal is not found up to the end of the program (ladder),

execution returns to the head of a program and search continues.

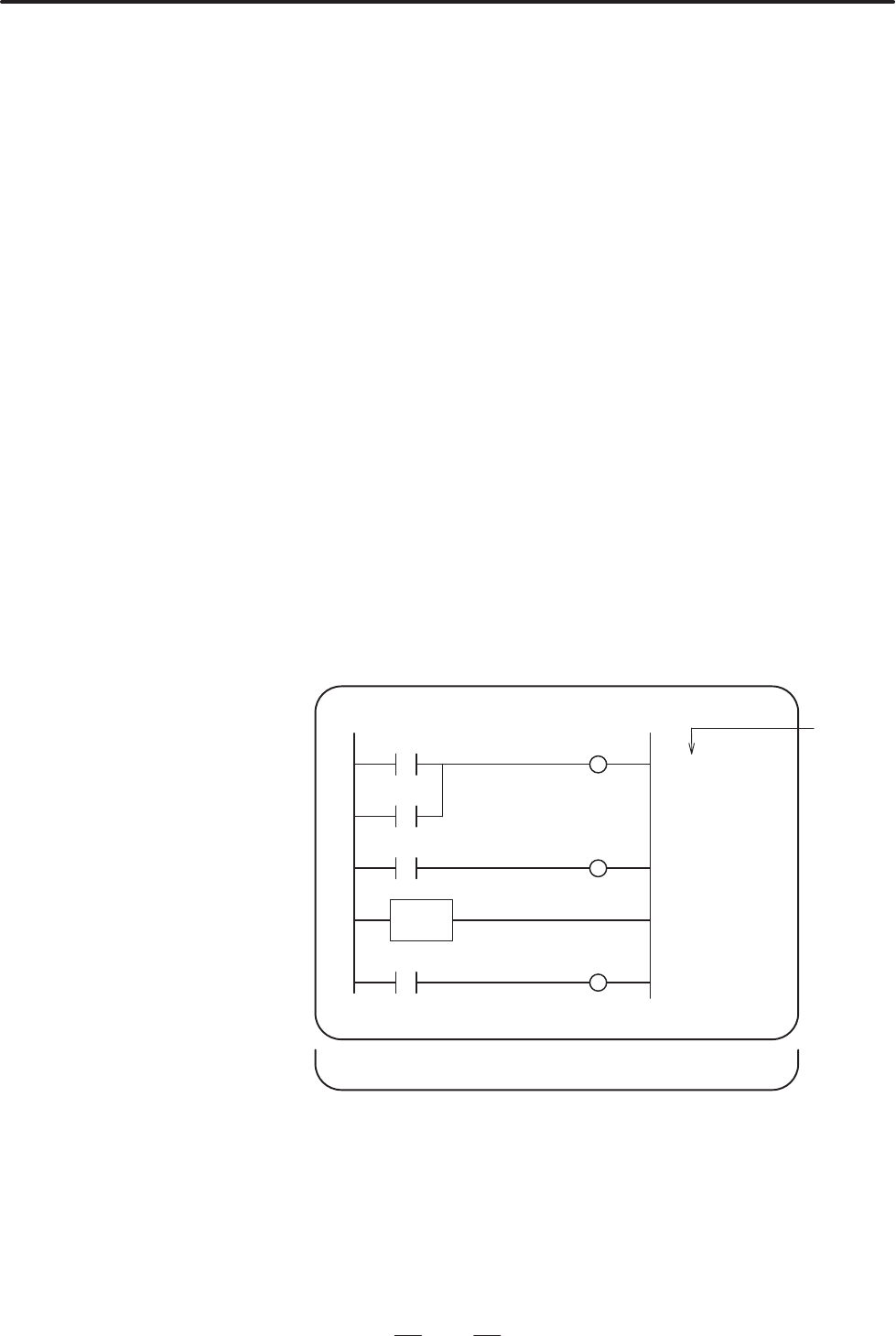

Press soft key [PMCLAD]. A ladder program is displayed dynamically,

allowing operation monitoring to be confirmed.

LADDER NET0001–0004 MONIT RUN

Comment

[SEARCH ][ADRESS][TRIGER][WINDOW][ ]

ALWAYS1

LOG1

X008.4

END1

PORD

*EMG

POR

EMERGENCY

STOP

POWER ON

RESET

[ DUMP ][DPARA ][ ][ONLEDT][ ]

(1)Green (low brightness) display

Contacts: open

Relay: off

(2)White (high brightness) display

Contacts: closed

Relay: on

D Search method

D PMC–NB

D Contents displayed
