B–62075E/04

5. TROUBLESHOOTING

312

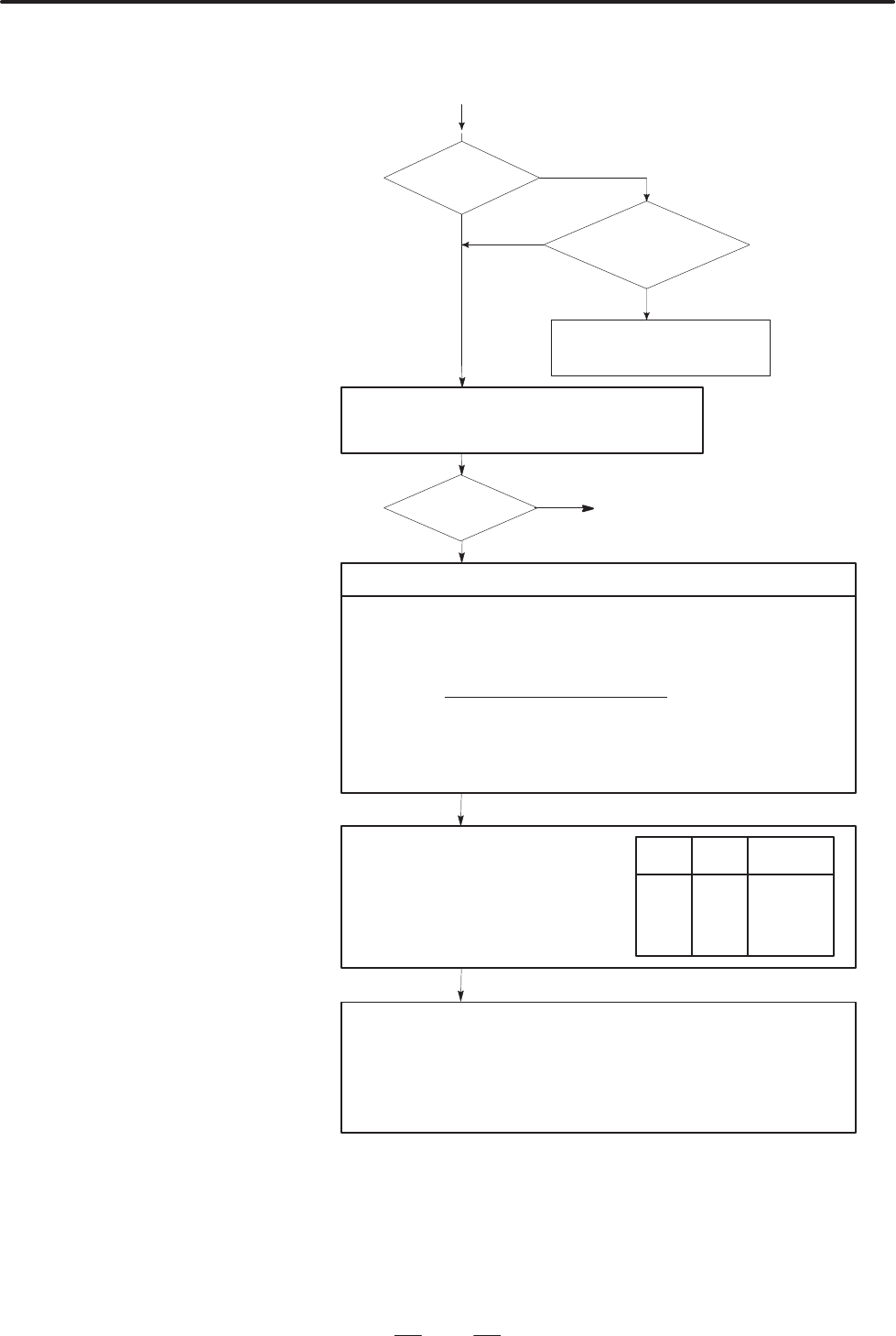

Check whether position gain is greater than 128 pulses

(DGN 3000) before or during reference position return.

128 or more

Position error

amount : 3000

Check feed rate command:

PRM 1420 F : Rapid traverse rate (mm/min)

PRM 1424 Manual rapid traverse rate (mm/min)

PRM 1825 G : Servo loop gain (0.01sec–1)

F 5000/3

Position error=

G detection unit [µm/PLUSE]

Detection unit : Move amount to a command pulse (usually 1µm)

In metric machine, if the no. of digits below decimal point is 4

on the position display screen, detection unit is 0.1 mm.

Check rapid traverse override signals :

ROV1 DGN 006.5 (M/T series)

101.5 (TT series)

005.5 (Multi–puth)

ROV2 DGN 006.6 (M/T series)

101.6 (TT series)

005.6 (Multi–puth)

Check reference position return deceleration signal

*DECn (DGN)

064.5+4(n–1) (M/T series)

128.5+4(n–1) (TT series/Multi–path)

When reference position return is started from deceleration signal 0, feed rate

becomes FL rate.

PRM 1425 FL rate

ROV1 ROV2

YES

(1) Next page

Override

100%

50%

25%

Fo rate

Raise the speed

Absolute

pulse coder?

(ST ART)

First reference

position return after first

power–on of pulse

coder?

Turn the NC power off then

back on, then perform refer-

ence position return.

YES

Countermeasures
