Manual Guide 16i/18i/21i - TA Operators manual Page 110

Operators manual

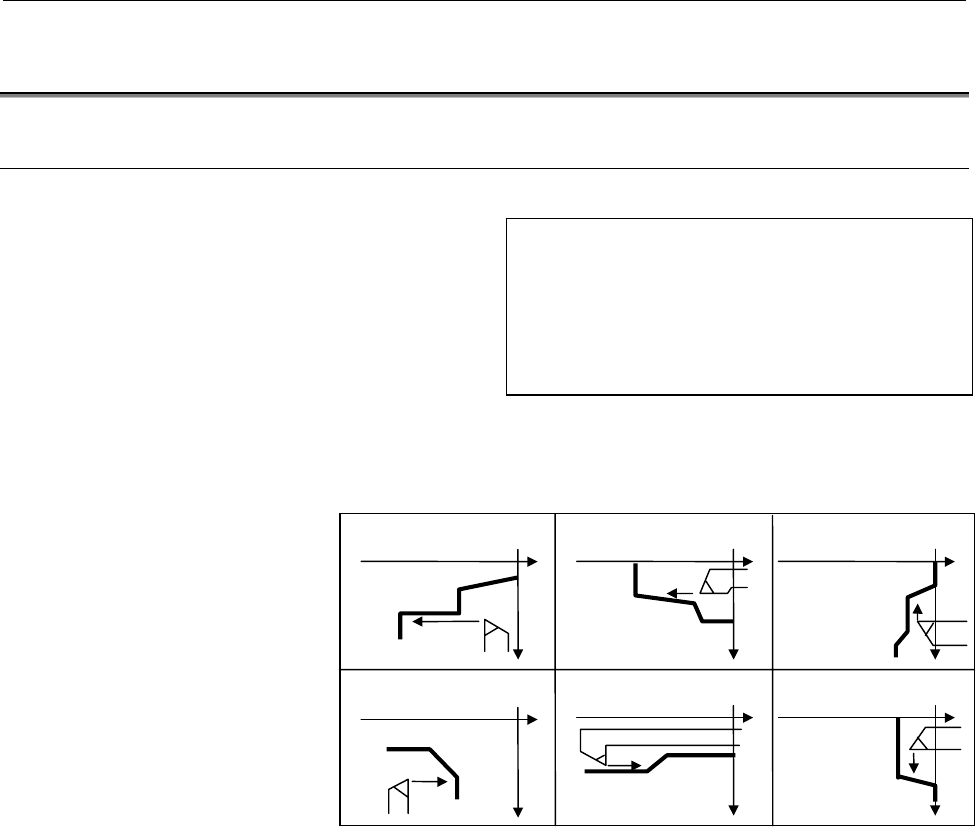

1.BAR MACHINING (ROUGHING) TYPES OF CYCLE MOTIONS B-63343EN/02
- 98 -
1.1 DETAIL OF PROCESS DATA
1.1.1 Process Data Window
AREA
Select from [OUTER]/[INNER]/[FACE]/[OUTER
REVERS] /[INNER/REVERS]/[FACE REVERS]
TOOL NO.
Number of tool used for roughing bar machining
FEED/REV.
Cutting feedrate, and it can be changed to FEED/MIN. by
pushing soft-key [FEED/MIN.].
S-SPD/MIN
Cutting speed, and it can be changed to REV/MIN. by
pushing soft-key [REV/MIN.].
S-DIRECT
Spindle rotating direction. Select from [NORMAL] and
[REVERS].
CUT ST X/Z
Coordinate of cutting start position. These are
automatically set by inputting figure data.
FIN X
X direction amount of finishing.
FIN Z
Z direction amount of finishing.
INFEED AM
Infeed amount of the first cutting motion.
BAR MACHINING (ROUGH)
CUT ST Z =
FIN X =
FIN Z =
INFEED AM =
AREA =
TOOL NUM. =
FEED/REV. =
S-SPD/MIN =
S-DIRECT =
CUT ST
X
=
+Z
+X
FACE
FACE REVERS
OUTER
OUTER REVERS
INNER
INNER REVERS
+Z
+X
+Z
+X
+Z
+X
+Z
+X
+Z
+X
