Manual Guide 16i/18i/21i - TA Operators manual Page 294

Operators manual
A.PARAMETERS APPENDIX B-63344EN/02
- 282 -

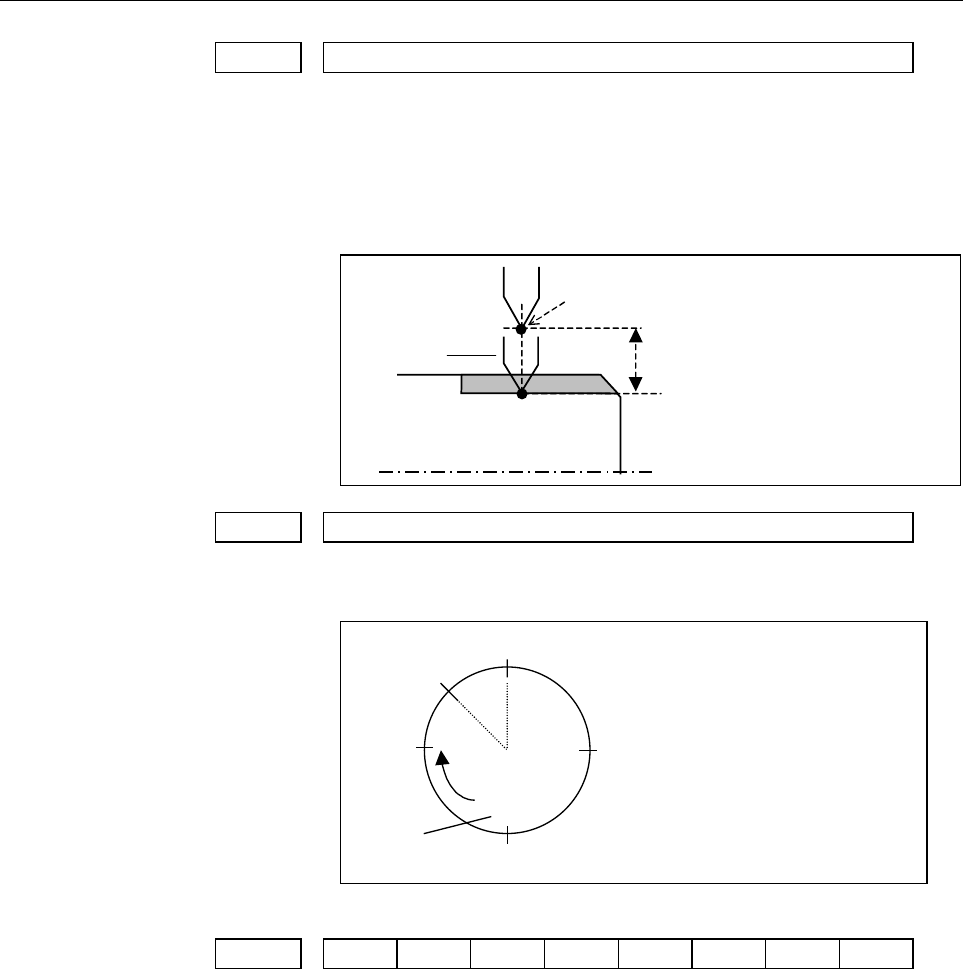

9843 ESCRNG
ESCRNG When the tool is within the distance from the thread phase
synchronization position that is specified by this parameter and soft-
key [CAN OR] or [EXEC] is pressed, a warning message is displayed.
Valid data range : 0 to 99999999
Units : 0.001mm
0.0001inch
Taught position =
thread phase synchronization
position
Tool
Position where soft-keys [CAN OR] and [EXEC]
are enabled
Distance X specified by the parameter
9844 SPLANG
SPLANG Qz is measured and set for this parameter. If P0 is equal to P1, set this
parameter to 0.
P0: Zero position after completion of
spindle orientation
P1: Position at which the one-
rotation signal is detected
Qz: Angle of P1 (absolute angle
position between 0 and
359.999. The position of P0 is 0
and the clockwise direction is
used as the positive direction.)
180
P0
P1
90
270
CW
Spindle
#7 #6 #5 #4 #3 #2 #1 #0
9845 SPE RSC ETC WOP UMC NEX NTL
NTL 1 : The tool data window is not displayed.
0 : The tool data window is displayed.
NEX 1 : Soft-key for executing playback [EXEC] is not displayed.
0 : The above soft-key is displayed.
UMC 1 : Each auxiliary function specified by calling a user program is
enabled on the MANUAL GUIDE initial screen, guidance and
single cutting screens, and cycle screen.
0 : Each auxiliary function specified by calling a user program is
enabled only on the MANUAL GUIDE initial screen and
guidance and single cutting screens.
WOP 1 : A user window can be displayed using an external key. Eight
types of windows can be displayed. A user window can be
displayed at a time; multiple user windows cannot be displayed
simultaneously.
0 : No user window can be displayed using any external key.
