5.WASTE CUTTING CANCEL FUNCTION SUPPLEMENT B-63344EN/02
- 242 -

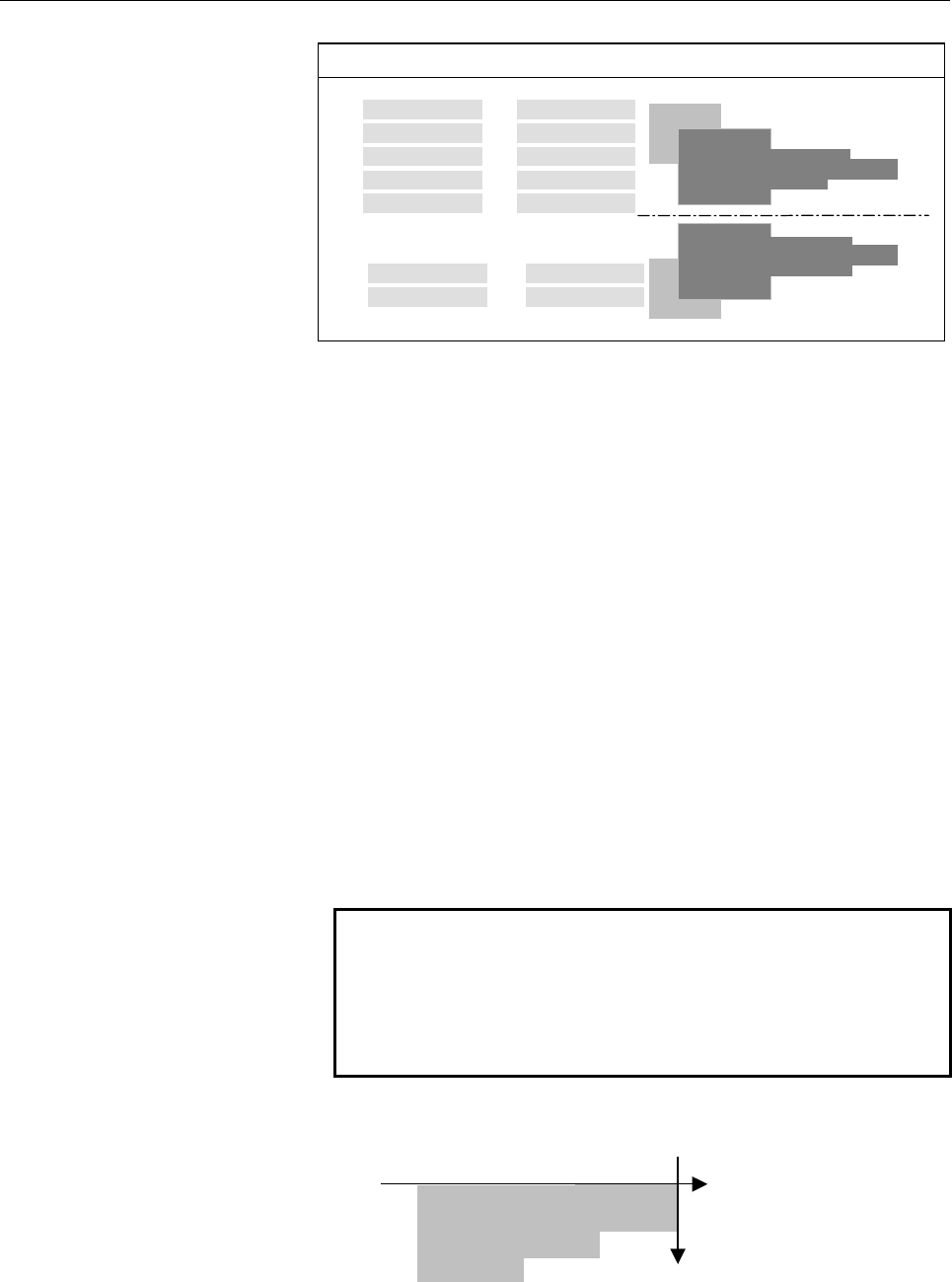

SPECIFYING ROUGH SHAPE
OUTER
X1
Z1
X2
Z2
X3
Z3
X4
Z4
X5
Z5
: :
: :
X11
Z11
X12
Z12
1
2
12
1
12
2
[DLTALL] [FIGEND] [ ]. . .. . .[RETURN] [ ] [ ]
(The above is an example of a window displayed for a back tool post
lathe.)
[FIGEND]:
Saves the input blank figure data into the program and closes this
window. (The input blank figure data is saved into the program
only when soft-key [FIGEND] is pressed.)
[DLTALL]:
Deletes all data displayed in the window. (Only the data keyed in
and stored in the key-in buffer is deleted, and the data saved into
the program is not deleted.)
[RETURN]:
Closes the window for inputting the blank figure.
Only blank figures as shown in the following examples can be
specified. These blank figures are made only with vertical and
horizontal lines and have the shape of a staircase whose coordinate
monotonously increases (for outer machining) or decreases (for inner
machining) in the direction from the end face of each blank to the
chuck. The coordinates of up to 12 corner points of a blank figure can
be specified for each of outer and inner machining. Select outer or
inner machining using page keys [↑] and [↓].
NOTE
When specifying the figure of a formed material for
which only inner machining is to be performed,
always specify the outer figure.
When only outer machining is to be performed, the
inner figure need not be specified.
• Examples of blank figures that can be specified
Outer machining
+X
+Z
Previous page
Next page
