Manual Guide 16i/18i/21i - TA Operators manual Page 96

Operators manual

Page of 333

/ 333

9.SETTING DATA OPERATION B-63344EN/02

- 84 -

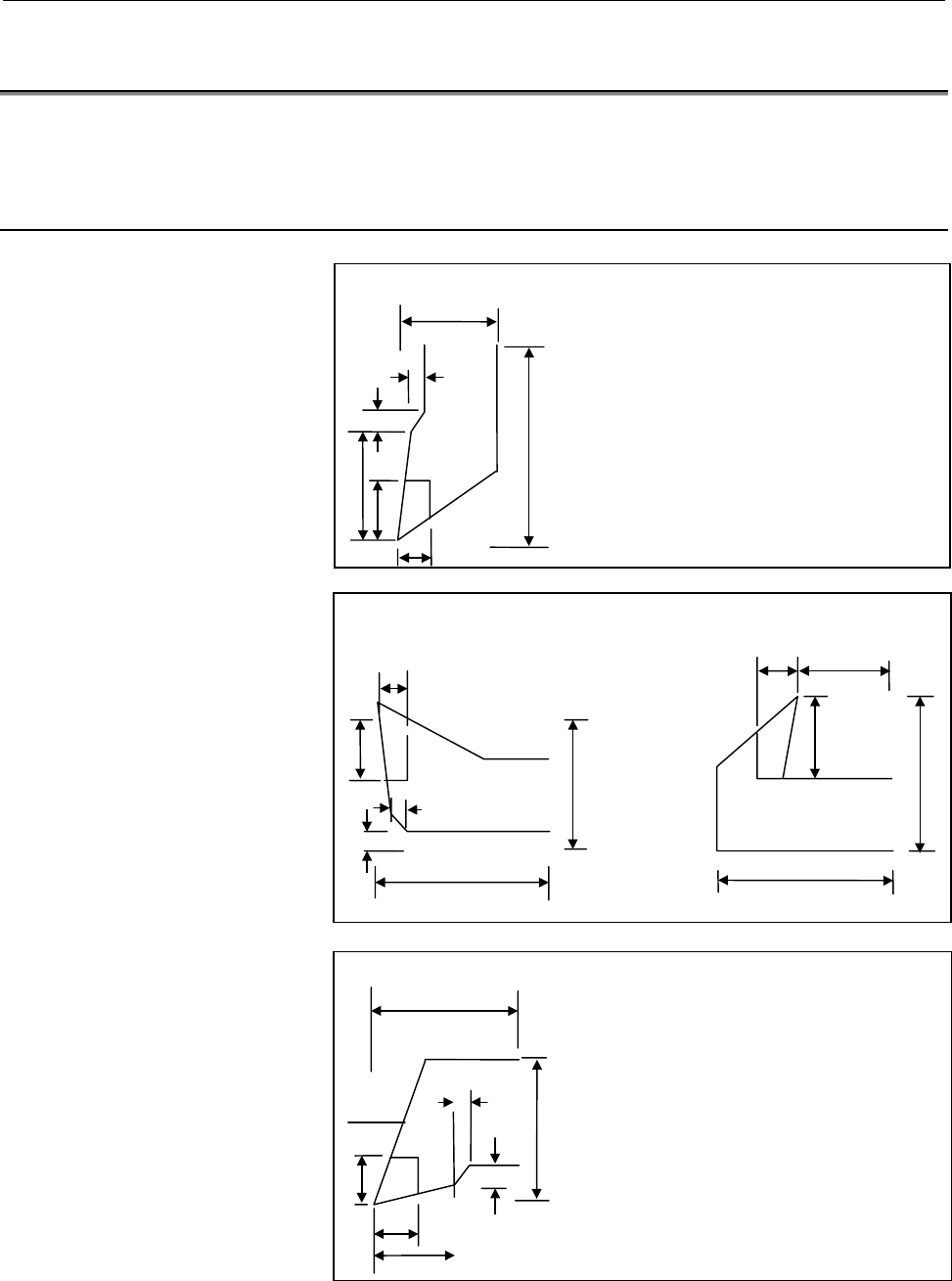

9.3 TOOL FORM FOR ANIMATED DRAWING

The tool form for animated drawing is automatically specified as

follows.

9.3.1 General-Purpose Cutting Tools

[BAR MACINING / INNER] [BAR MACHINING / INNER REVERS]

SW(shank width) = Parameter No.9081

TT(tip thickness) = SW/4

TW(tip length) = SL/2

Cutting edge angle = Data in a program

Tool nose angle = Data in a program

SW/8

SL/8

SL/2

[BAR MACINING / FACE]

SL/2

SW/8

SL/8

SW(shank width) = Parameter No.9082

SL(shank length) = SW * 1.5

TT(tip thickness) = SW / 4

TW(tip width) = SL / 2

Cutting edge angle = Data in a program

Tool nose angle = Data in a program

Note)

A tool for [FACE REVERSE] is symmetrical

with the above tool.

TIP color is changed by spindle rotating

direction.

[BAR MACINING / OUTER]

SW/8

SL/8

SL/2

SW(shank width) = Parameter No.9080

SL(shank length) = SW * 1.5

TT(tip thickness) = SW / 3

TW(tip width) = SL / 3

Cutting edge angle = Data in a program

Tool nose angle = Data in a program

Note)

A tool for [OUTER REVERSE] is symmetrical

with the above tool.

TIP color is changed by spindle rotating direction.
