Manual Guide 16i/18i/21i - TA Operators manual Page 197

Operators manual
B-63344EN/02 SUPPLEMENT 3.USEFUL FUNCTIONS FOR MACHINING PROCESSES
- 185 -
3.1 INCREMENTAL COORDINATE INPUT
Incremental values can be input for the following data in each
machining below by parameter setting:
• Single Cutting
Coordinates of the end point in each block
Coordinates of the center of an arc
• Bar machining (Roughing, Finishing)
Coordinates of the end point of each figure
Coordinates of the center of an arc
• Threading
Coordinates of the end point of a thread
• Standard grooving
X coordinate (outer or inner surface) or Z coordinate (end face)
of the end point of a groove
• Trapezoidal grooving (Roughing, Finishing)
Coordinates of each point other than the start point of a
trapezoidal groove
Each incremental coordinate indicates the distance from the start
point to the end point of a line or arc. Each incremental coordinate of
the center of an arc indicates the distance from the start point of the
arc.

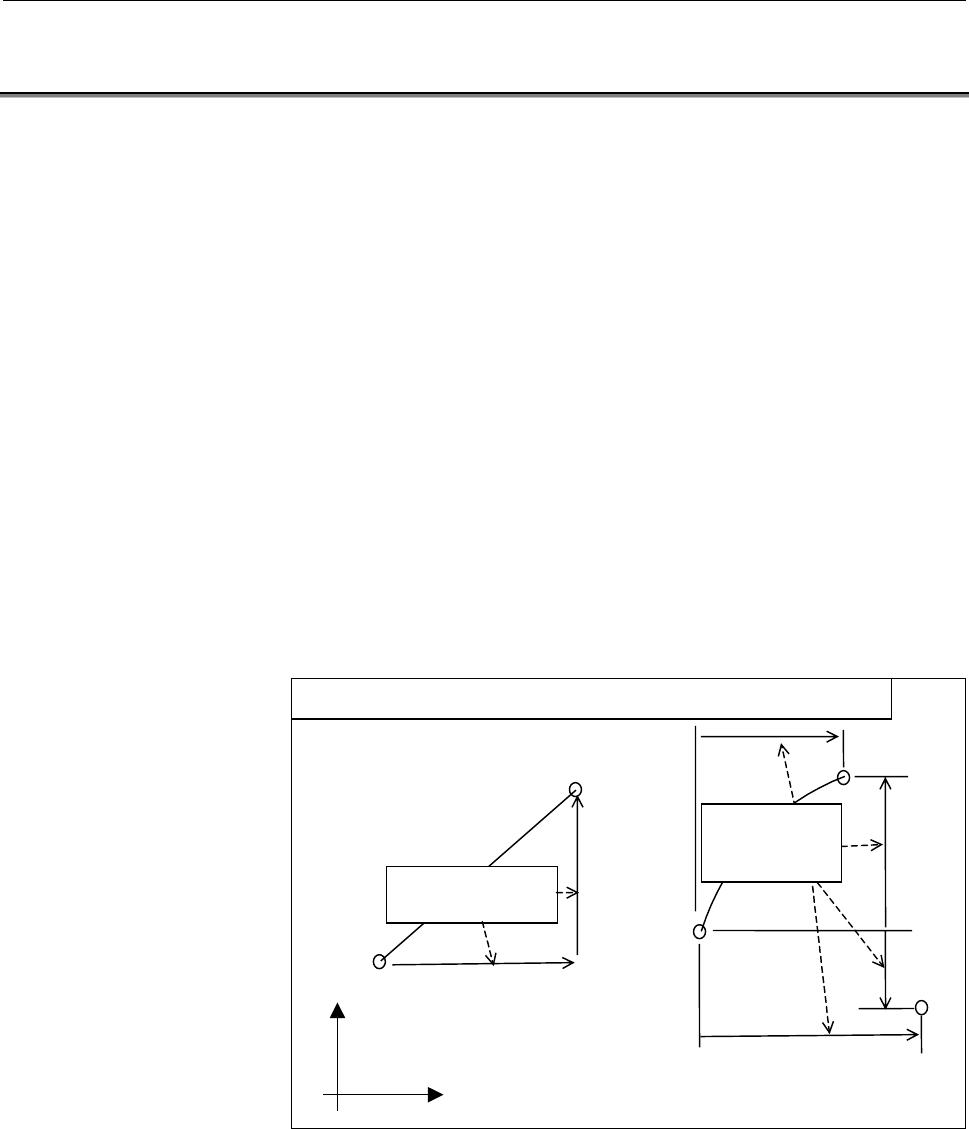

Cente
r
End
p
oint
Z
X
Incremental
coordinate value
Incremental input at single cutting and bar cutting
Incremental
coordinate
value
End
p
oint
Start
p
oint
Start
p
oint
