1.BAR MACHINING (ROUGHING) TYPES OF CYCLE MOTIONS B-63343EN/02

- 108 -

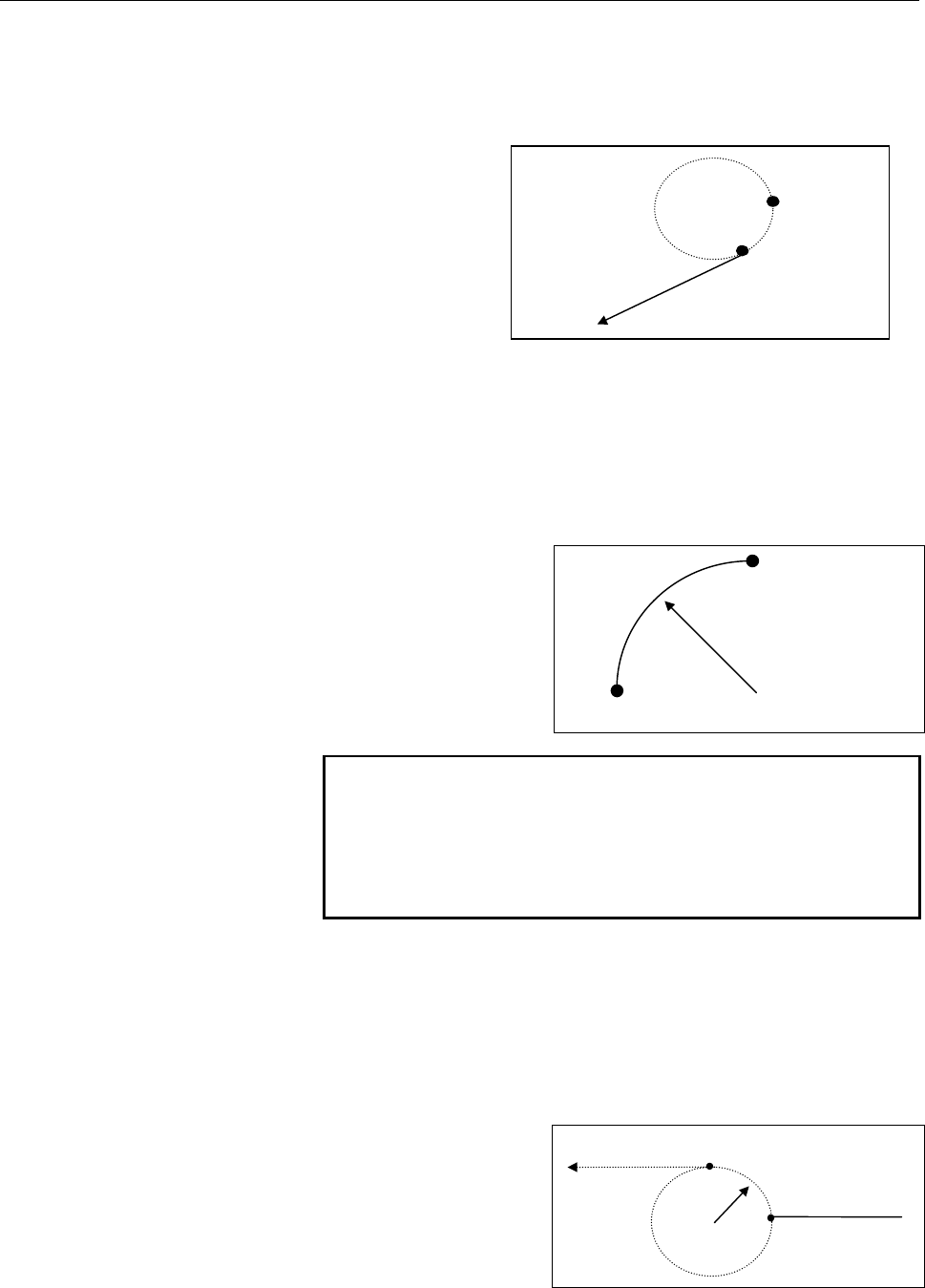

(iv) A and both X and Z are inputted

-> The end point of the arc and line will be determined.

The tangential point selection request window is not

displayed.

(4) ARC

(a) When the preceding figure block is not pending, and TANGNT

is not specified

(i) I and K are inputted

-> This arc will be pending.

(ii) X, Z and R are inputted, or

(iii) X, Z, I and K are inputted

-> A minor arc will be determined.

NOTE

In the distance (radius) between the start point and

center differs from the one between the end point

and center, the figure displayed in a graphic

window will differ from the actual form, and

machining will not be performed correctly.

(iv) Only R is inputted

-> By specifying TANGNT and inputting a line with A =

180 degree and X coordinate as an immediately after

figure, this arc can be determined.

However, there are two possible tangential points, so

one of them must be selected by inputting number data

1 or 2.

Start point

Center (I, K)

End point (X, Z)

Tangential point

Start point

Tangential point

(X, Z)
