B-63344EN/02 OPERATION4.GUIDANCE CUTTING OPERATIONS

- 33 -

NOTE

Similar to line cutting, the Nose-R compensation is

done automatically, and the nose radius value of

inputted tool number in a process data window is

used for it.

So, the above distance data display the distance

between 2 imaginary nose point of the current tool

position and the position of that a nose circle is

touched to the target line.

After inputting necessary data in the above window, by pushing

[INPUT END], an operator can begin guidance cutting. By switching

the guidance handwheel mode on a machine operator’s panel, an

operator can select one of Approaching Cutting or Along Cutting.

(1) Approach Cutting

By switching the guidance handwheel mode on a machine operator’s

panel, an operator can select an Approaching Cutting mode.

In an approach cutting mode, a tool moves along a line connecting the

center of the tool nose and the center of the target circle according as

an operator rotates a guidance handwheel.

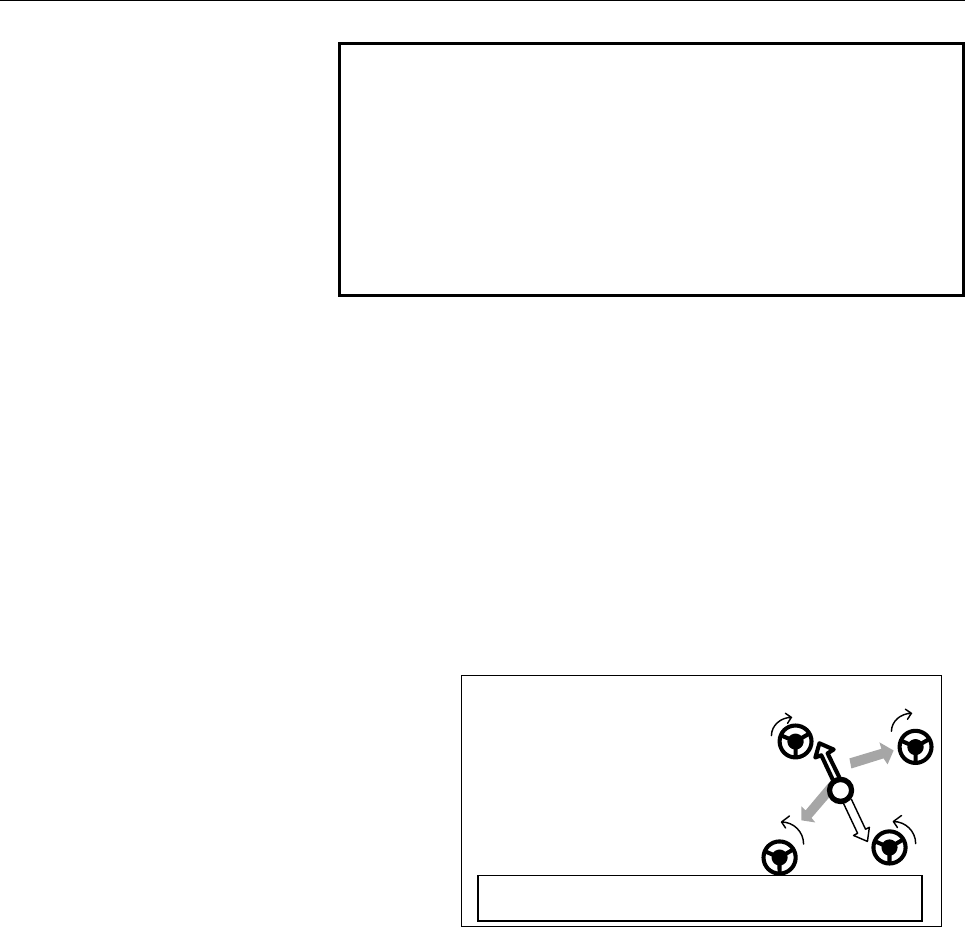

During approach cutting mode, the following guidance is displayed in

a pop-up window.

In the guidance displayed in a pop-up window, pink and green arrows

indicate the direction in which the tool is moved. The direction in

which the handwheel is rotated determines the direction of approach.

At the end of hollow arrow, the handwheel and the direction of its

rotation are displayed.

The feedrate of the tool motion depends on the speed at which the

guidance handwheel is rotated.

(2) Along Cutting

By switching the guidance handwheel mode on a machine operator’s

panel, an operator can select an Along Cutting mode.

In an along cutting mode, a tool moves along a circle having the same

center as the target line according as an operator rotates a guidance

handwheel.

During along cutting mode, similar to the former approach cutting

mode, the guidance for handwheel rotation is displayed in a pop-up

window.

CENTER X = 50.000

CENTER Z =-100.000

RADIUS = 50.000

D 6.576
