B-63343EN/02 TYPES OF CYCLE MOTIONS 2.BAR MACHINING (FINISHING)

- 117 -

2.1.2 Supplemental Process Data in a Pop-up Window

These supplemental process data are automatically set always, so in

ordinary case, an operator need not to call this pop-up window

excepting the case of checking these data.

EDGE ANGL Angle of the cutting edge, normally it is set automatically

to 90 degrees. In the case of that it was set to the

value

less than 90 degrees, cutting edge compensation

will be done automatically.

Parameter No.9033 value

is automatically set into this data at initially inputting this

process.

NOSE ANGLE

Angle of the tool tip, its default value can be set by

parameter. In the case of that pocket figure was inputted

as contour figure, cutting back compensation will be

done automatically. Parameter No.9034 value is

automatically set into this data at initially inputting this

process.

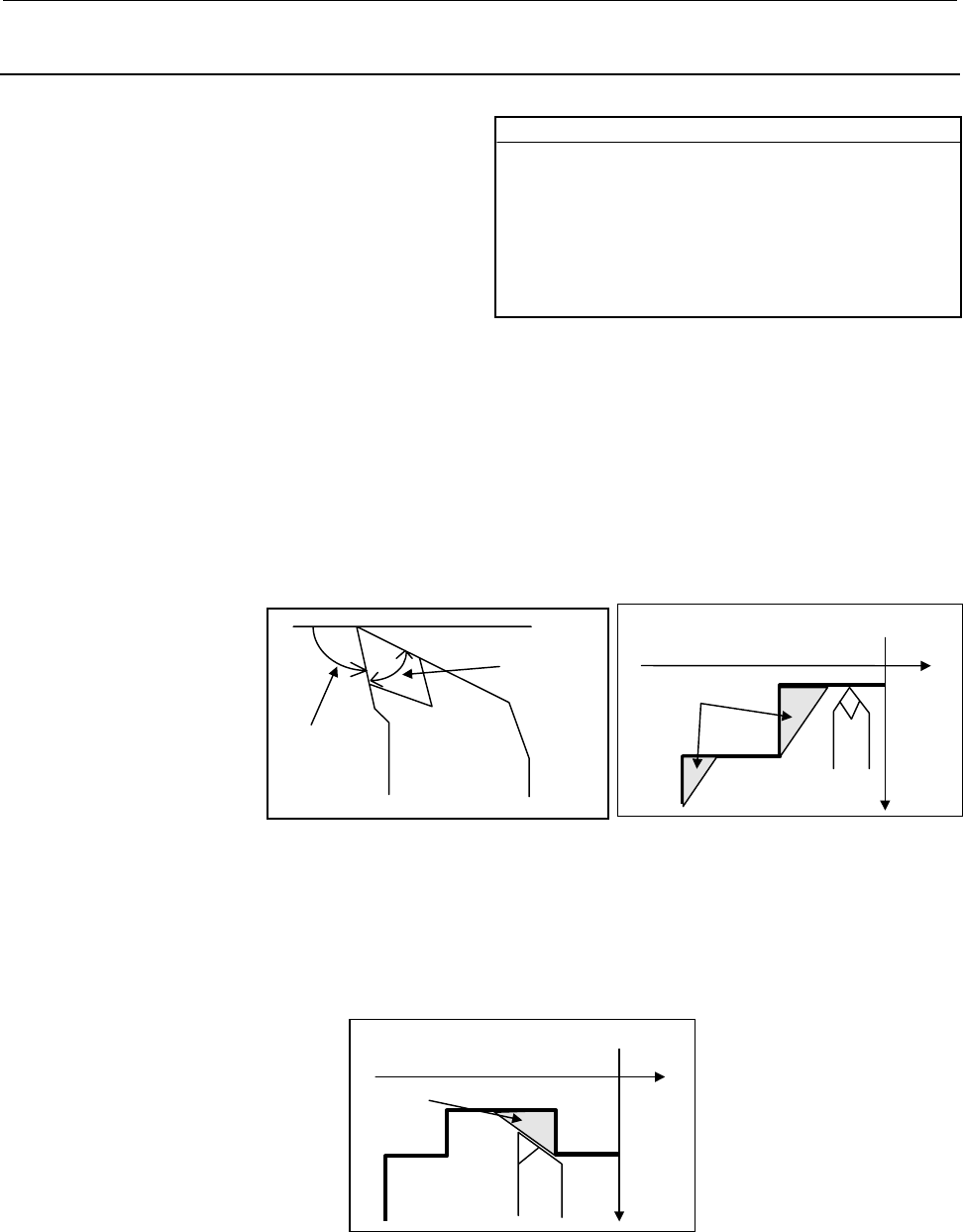

Nose Angle

Edge Angle

+ZNon-cut area

Cutting Back Compensation

EDGE ANGL = SP.GEAR=

NOSE ANGL =

RESE AMNT =

APPROACHX =

APPROACHZ =

COOLANT =

Non-cut area

Cutting Edge Compensation
