Manual Guide 16i/18i/21i - TA Operators manual Page 290

Operators manual
A.PARAMETERS APPENDIX B-63344EN/02
- 278 -
A.7 PARAMETER FOR GROOVING
9820 CLGRVX
CLGRVX Clearance (diameter) of the X-axis in outer or inner grooving.
Valid data range : 0 to 99,999,999
Units : 0.001mm
0.0001inch
9821 CLGRVZ
CLGRVZ Clearance (radius) of the Z-axis in end face grooving.
Valid data range : 0 to 99,999,999
Units : 0.001mm
0.0001inch

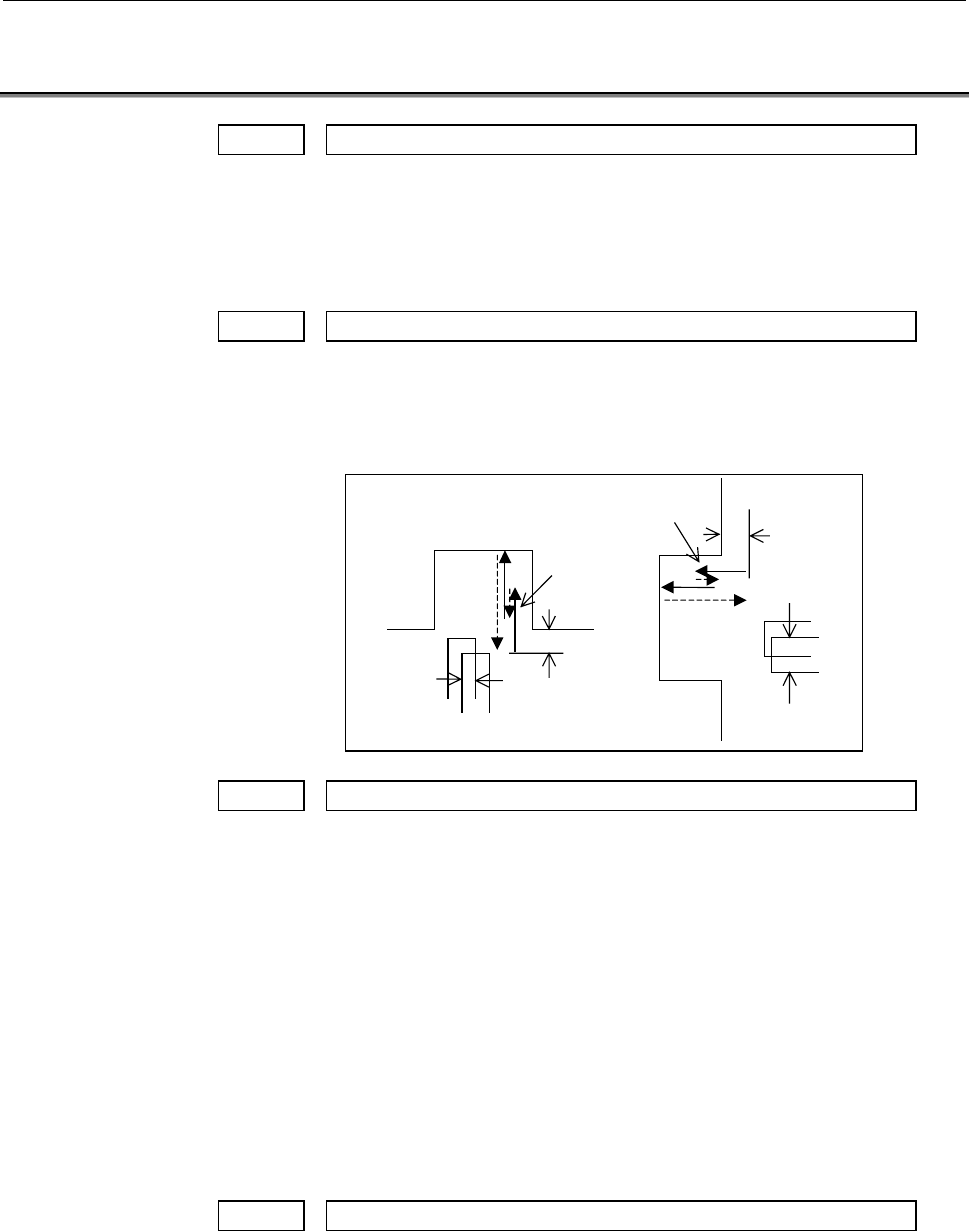

CLGRVX
GRVBCK
OVRGRV
CLGRVZ
GRVBCK
OVRGRV
9822 GRVCHG
GRVCHG Rate of change in the depth of cut in grooving. If the parameter is set
to 0, the depth of cut remains unchanged.
Valid data range : 0 to 200
Units : 1%
Example)
When the depth of cut is 5mm, CUTCHG is 70%, and CUTMIN
is 1.5mm, the depth of cuts are as follows.
First cut 5mm
2nd 3.5mm
3rd 2.45mm
4th 1.715mm
5th 1.5mm
6th 1.5mm
9823 GRVMIN
GRVMIN Minimum limit value (radius) for the depth of cut in grooving.
Valid data range : 0 to 99,999,999
Units : 0.001mm
0.0001inch
