Manual Guide 16i/18i/21i - TA Operators manual Page 132

Operators manual
2.BAR MACHINING (FINISHING) TYPES OF CYCLE MOTIONS B-63343EN/02
- 120 -

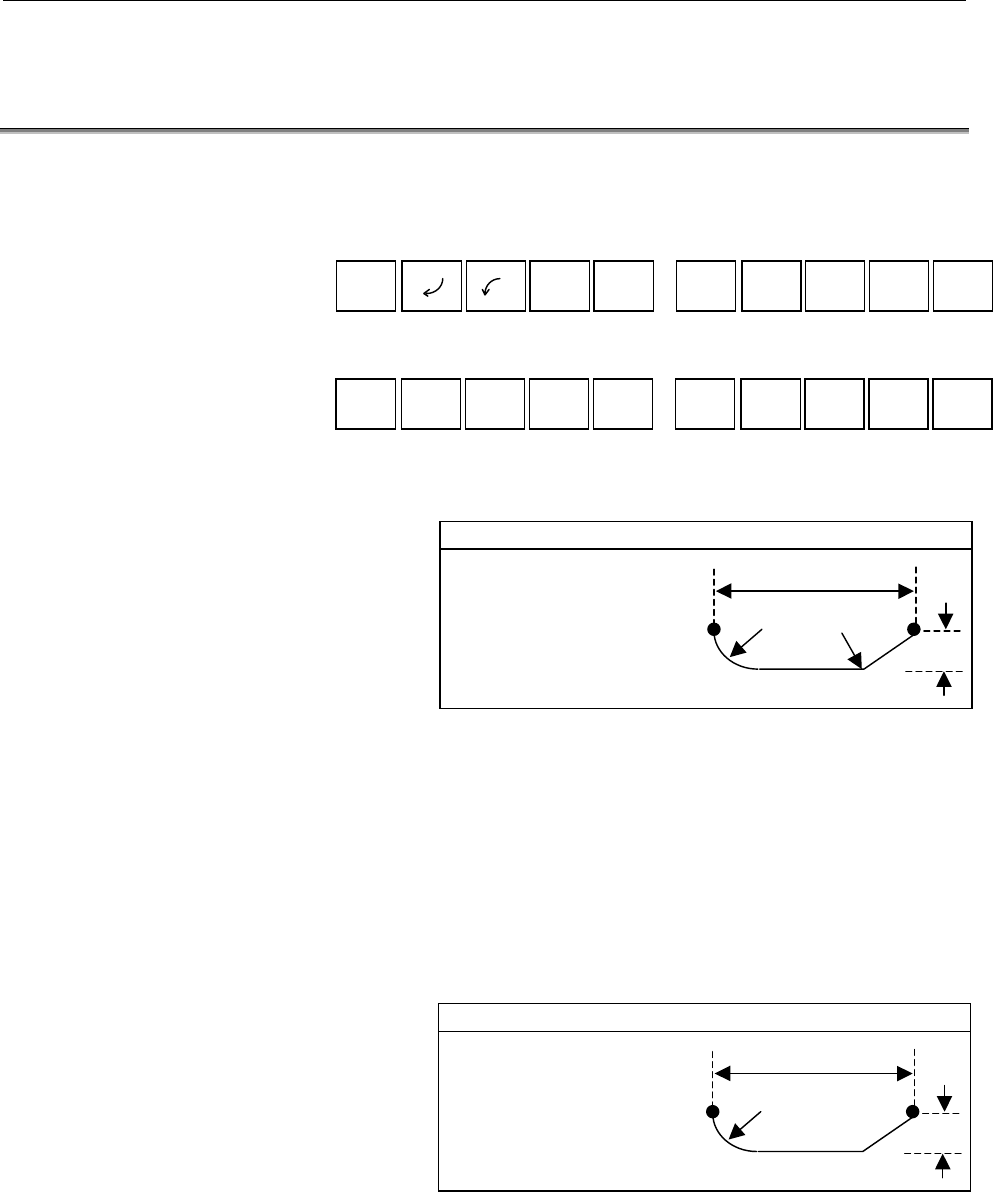

2.3 NECKING FIGURE INPUTTING OF DIN509-E, DIN509-F,
AND DIN76
(1) Selecting a necking figure menu
During inputting figures for bar machining, the following menu of
figure type appears in soft-keys.
By pushing a right end soft-key, menus for necking figure are
displayed.
(2) DIN509-E
By pushing a [DIN509], grinding necking of DIN509-E type can be
selected.
WIDTH
Width of necking figure DIN509-E
DEPTH
Depth of necking figure.
RADIUS
Corner-R radius of necking figure.
By pushing a INSERT after inputting the above data according to the
DIN509-E standard, this necking figure is converted to the group of
necessary figures, lines and corner-R, and these generated figures are
displayed in a figure window.
(3) DIN76
By pushing a [DIN76], threading necking of DIN76 type can be
selected.
WIDTH
Width of necking figure DIN76
DEPTH
Depth of necking figure.
By pushing a INSERT after inputting the above data according to the
DIN76 standard, this necking figure is converted to the group of
necessary figures, lines and corner-R, and these generated figures are
displayed in a figure window.
WIDTH WT=
DEPTH DT=
RADIUS R=
OVERRIDE P=
R
CONTOUR FORM
(
DIN509-E
)
R
WT
DT
WIDTH WT=
DEPTH DT=
OVERRIDE P=
0.6DT
CONTOUR FORM
(
DIN76
)
WT
DT
CALC.
TANGNT
CHAMFARC ROUNDARCLINE
DIN76509-FDIN509
