5.TRAPEZOIDAL GROOVING (ROUGHING AND FINISHING) TYPES OF CYCLE MOTIONS B-63343EN/02
- 142 -
5.2 DETAIL OF FIGURE DATA
START X / Z
Coordinate of a point where grooving starts.
POINT 1 to 4 X / Z
X and Z coordinates of the corners of a trapezoidal
groove shown below.
NOTE
The bottom figure of a trapezoidal groove must be
parallel to Z-axis (OUTER and INNER groove) or
X-axis (FACE groove). In other word, when OUTER
or INNER groove is specified, the X coordinate of
point 2 and 3 must be same, and when FACE
groove is specified, the Z coordinate of them must
be same.
CORNER R 1 to 4
Corner-R radius of each point 1 to 4. These data
items can be changed to chamfering figure by
pushing a [CHAMF].
CHAMFER 1 to 4
Chamfer amount for each point 1 to 4.
END X / Z
X and Z coordinates of the end point of a trapezoidal
groove shown below.

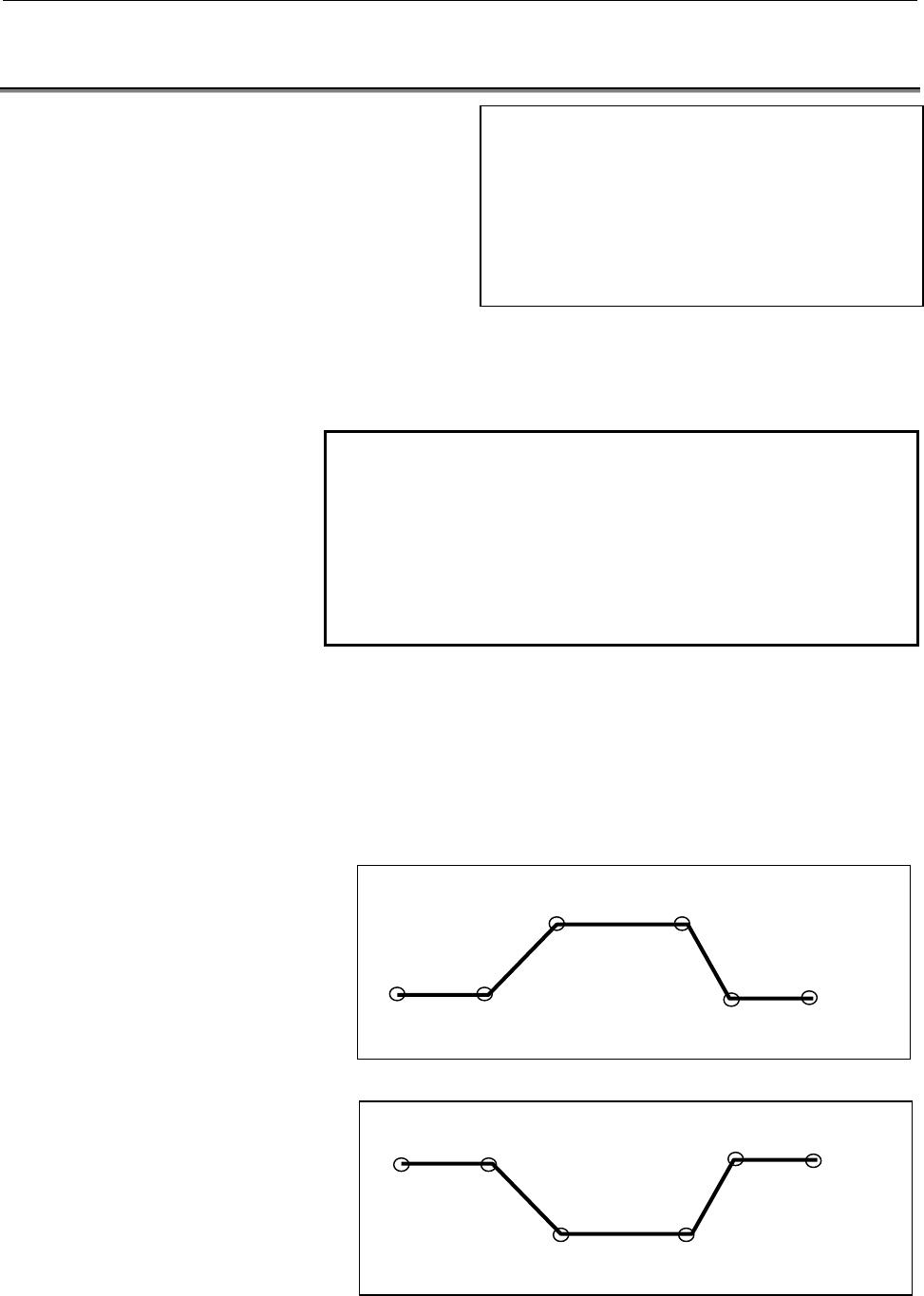

(1) OUTER
(2) INNER
START X =
START Z =
POINT 1 X =
POINT 1 Z =
CORNER R =
POINT 2 X =
POINT 2 Z =
CORNER R =
POINT 3 X =
POINT 3 Z =
CORNER R =
POINT 4 X =
POINT 4 Z =
CORNER R =
END X =
END Z =
Start
point
Point 1
Point 2
Point 3
Point 4
End
point
Start
point
Point 1
Point 2 Point 3
Point 4
End
point
