Manual Guide 16i/18i/21i - TA Operators manual Page 261

Operators manual

Page of 333

/ 333

B-63344EN/02 SUPPLEMENT 6.RETHREADING

- 249 -

6.2 OPERATION

(1) Input process data.

When rethreading is selected, the default values are

automatically set for the input items below as follows:

CUT AMUNT/CUT TIMES :

CUT TIMES is selected and 1 is set.

MULTI. : 1 is set.

For a multiple thread, input the number of threads. For multiple

cuts, input the number of cuts or the depth of cut.

(2) When the cursor is positioned at the "METHOD" input item in

the process data window, press soft-key [REPAIR].

[S-AMNT] [B-AMNT] . . ... [ ] [

REPAIR]

When rethreading is performed according to the value input for

"CUT AMUNT/CUT TIMES", " BOTH AMOUNT " is

automatically selected for "METHOD".

(3) Manually input the lead of the thread.

(4) When the cursor is positioned in the figure data window and

rethreading is specified, soft-keys [ORIENT] and [CAN OR] are

displayed.

Press soft-key [ORIENT] to perform spindle orientation. At this

time, the M code for orientation set for parameter No. 4960 is

output.

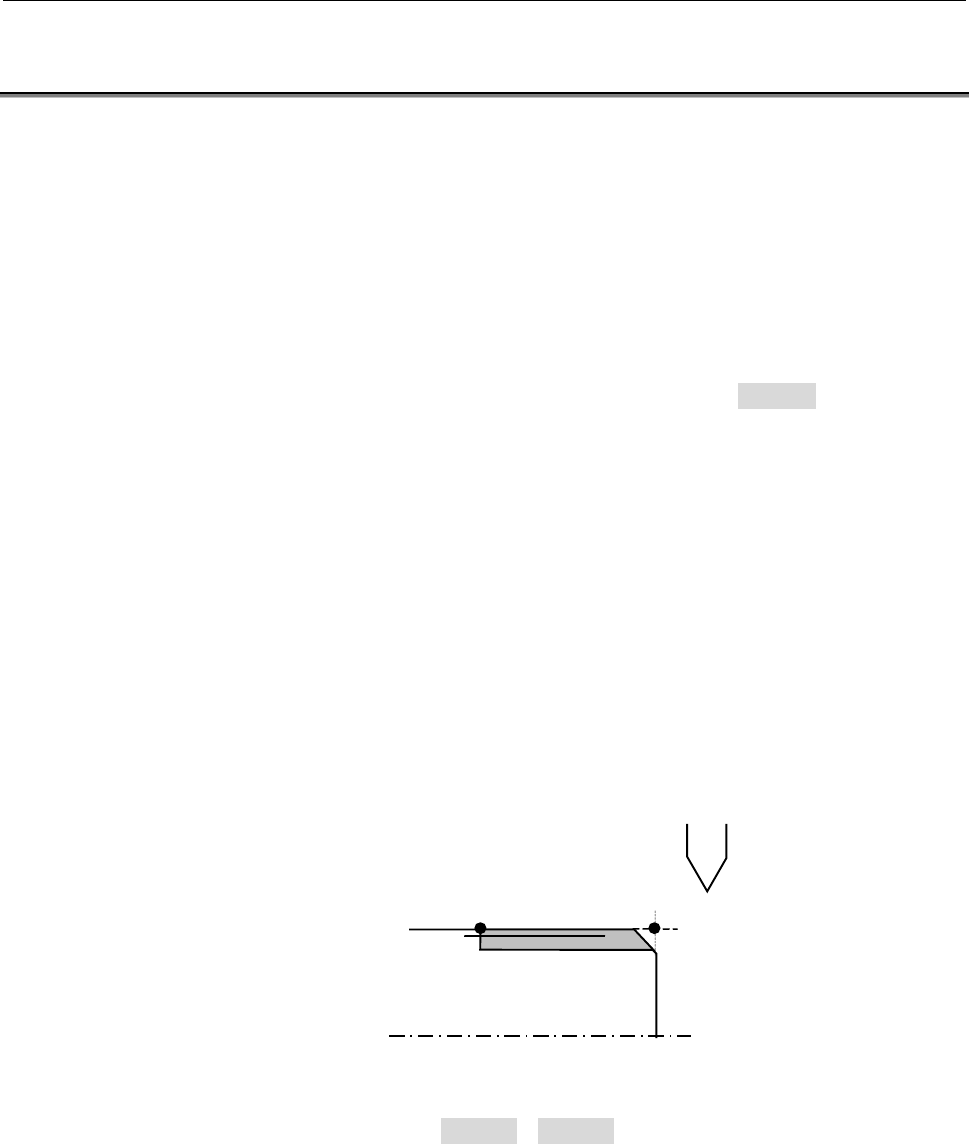

(5) Teach the figure of the thread or directly input numeric values to

specify the figure.

After inputting process data, the operator should directly input

the values for START X, START Z, END X, and END Z for the

thread figure or teach the thread figure as follows to specify the

figure:

Start point

End point

- Move the tool to the thread start point.

- Position the cursor to the "START X" input item.

- Press soft-key [RD POS].

[

RD POS] [SYNC P] [ ] [ ] . . .[ ] [ ]

At that time, the current workpiece coordinate X is set for

the "START X" input item.

- Set other figure data in the same way.
