Manual Guide 16i/18i/21i - TA Operators manual Page 292

Operators manual
A.PARAMETERS APPENDIX B-63344EN/02
- 280 -
A.8 PARAMETER FOR THREADING
9830 CLSCRX
CLSCRX Default value of the clearance (diameter) of the X-axis for threading.
Valid data range : 0 to 99,999,999
Units : 0.001mm
0.0001inch
9831 CLSCRZ
CLSCRZ Default value of the acceleration distance (radius) of the Z axis for
threading.
Valid data range : 0 to 99,999,999
Units : 0.001mm
0.0001inch

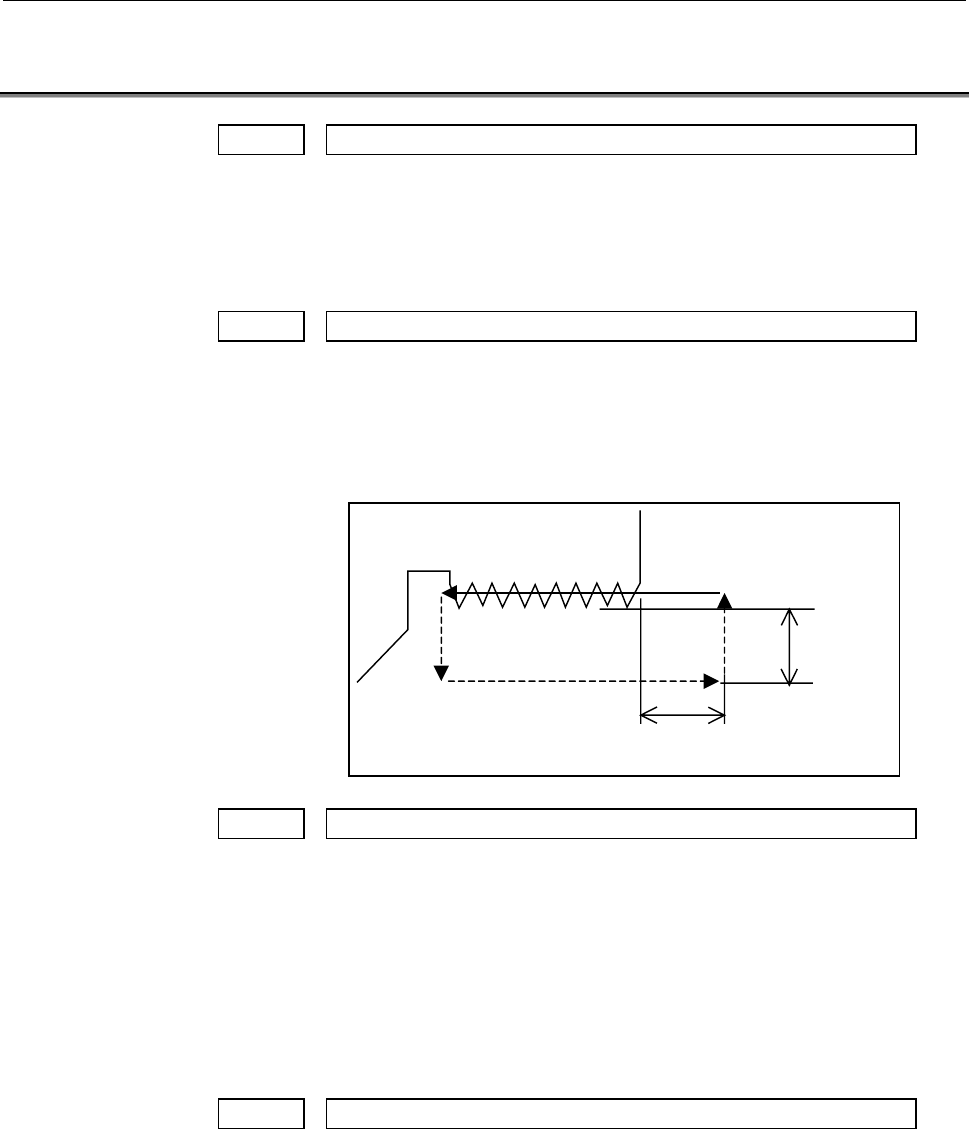

CLSCRZ
CLSCRX
9832 SCWCF
SCWCF Coefficient for the height of a general thread.
Valid data range : 0 to 32,767
Units : 1/10000
The system automatically sets the height of the thread for process data
from the following formula.
Height of a thread = thread pitch x SCWCF / 10000
Standard set value 6495 for thread angle 60degrees
6403 for thread angle 55degrees
9833 TRDMIN
TRDMIN Minimum depth (radius) of cut for threading.
Valid data range : 0 to 99,999,999
Units : 0.001mm
0.0001inch
