B-63343EN/02 TYPES OF CYCLE MOTIONS 1.BAR MACHINING (ROUGHING)

- 107 -

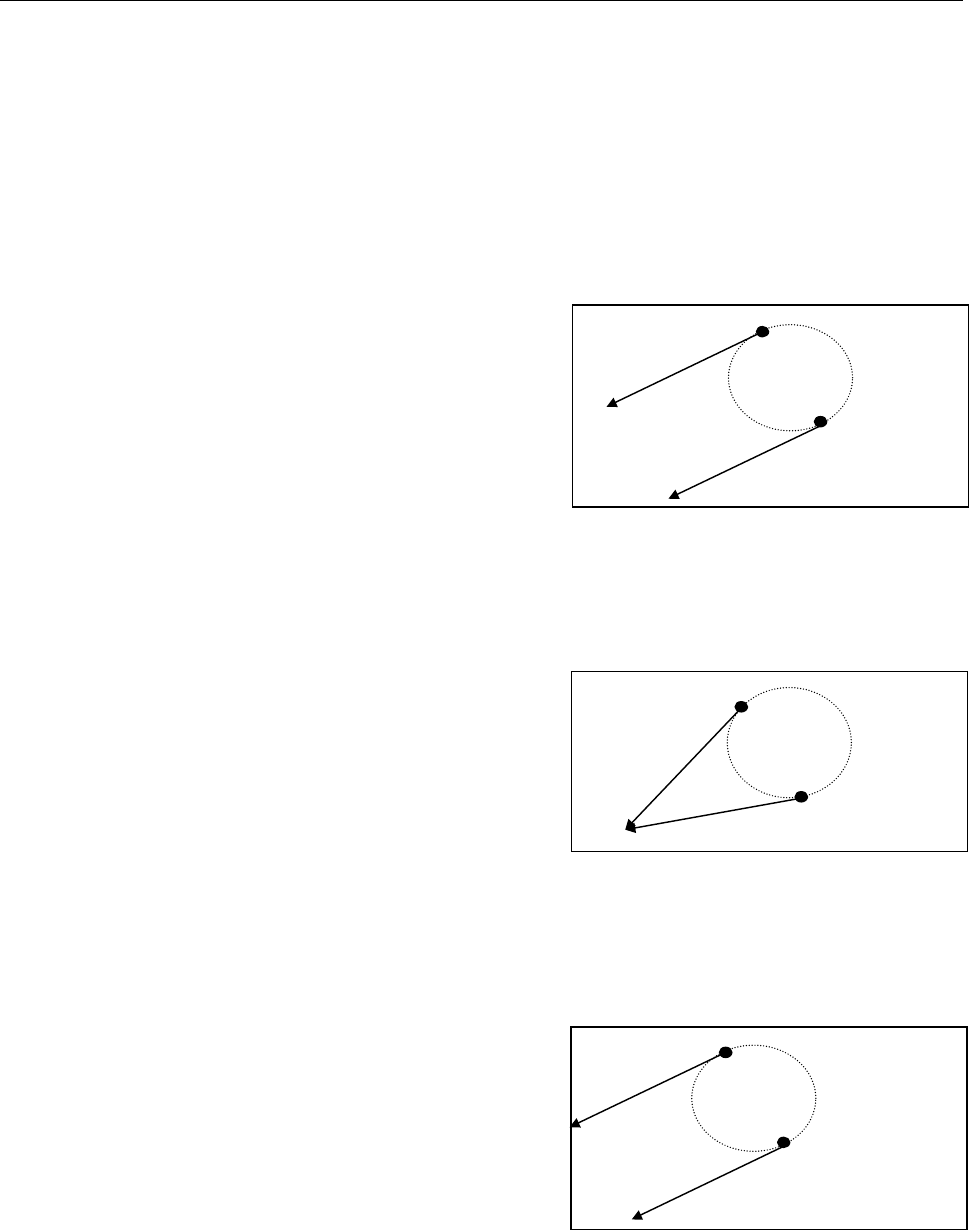

(d) When the preceding figure block is pending arc, and TANGNT

is specified.

It is assumed that the radius and the center point coordinate (I,K)

of arc have already inputted.

(i) Only A is inputted

-> The tangential point selection request window is

displayed. Input number data 1 or 2, then push

INSERT

This line will be pending.

(ii) Both X and Z are inputted

-> The tangential point selection request window is

displayed. Input number data 1 or 2, then push

INSERT

The end point of this line will be determined.

(iii) A and either X or Z are inputted

-> The tangential point selection request window is

displayed. Input number data 1 or 2, then push

INSERT

The end point of this line will be determined.

If the positional relationship between the tangential

point and the line is such that an inputted A conflicts

with the inputted X or Z, a warning message is

displayed to indicate that invalid data has been

inputted.

Tangential point

X or Z
