Manual Guide 16i/18i/21i - TA Operators manual Page 224

Operators manual
4.C-AXIS CUTTING A SUPPLEMENT B-63344EN/02
- 212 -
APPROCH X
Similar to center drilling
APPROCH Z
Similar to center drilling
COOLANT
Similar to center drilling
SPDL GEAR
Similar to center drilling

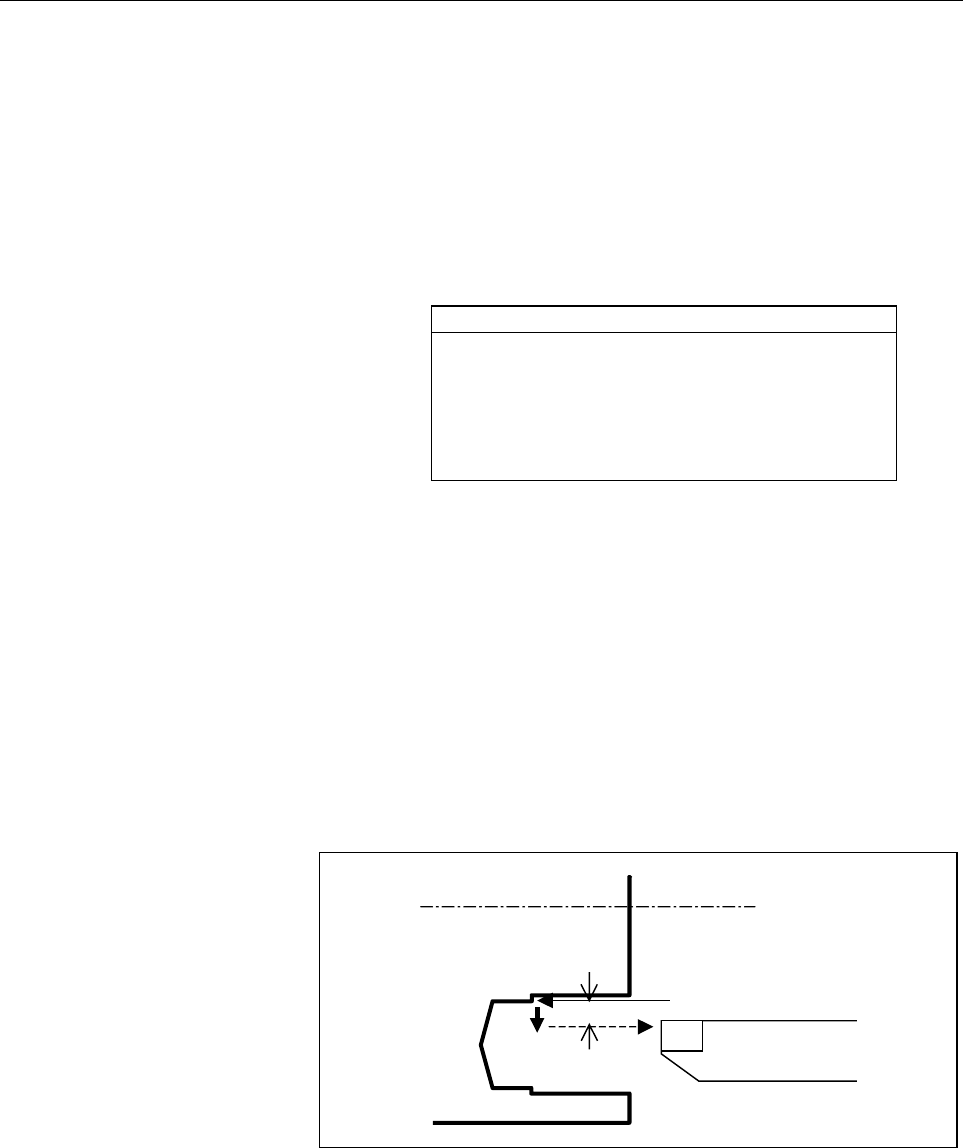

(5) C-axis boring
ORIENT M =
SFT DIRCT =
APPROCH X =
APPROCH Z =
COOLANT =
SPDL GEAR =
ORIENT M
M code for milling spindle orientation. Automatically
determined according to the value of parameter No. 9056
(CBRORM).
SFT DIRCT
Shift direction of retraction after boring. Automatically
determined according to the setting of bit 2 (BSH) of parameter
No. 9765. (Positive direction when this parameter is set to 0;
negative direction when it is set to 1)
To change the direction, select a desired direction by pressing
soft-key [+SHIFT] or [-SHIFT].
1. [+SHIFT]
+X
Shift amount
