Manual Guide 16i/18i/21i - TA Operators manual Page 233

Operators manual
B-63344EN/02 SUPPLEMENT 4.C-AXIS CUTTING A
- 221 -

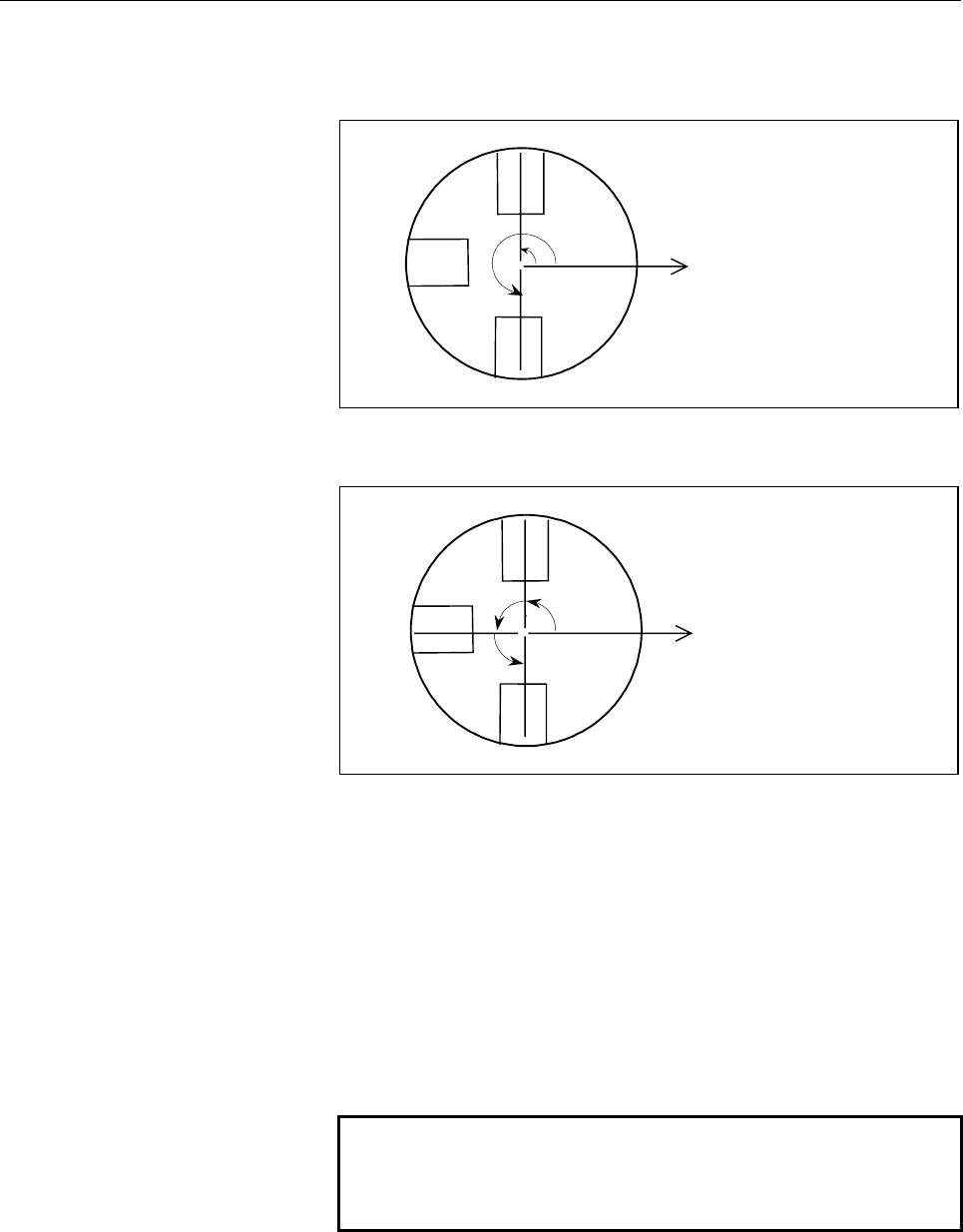

2. When no data is input for ANGLE(A), a value of 2 or more is
input for H.NUM(N), and data is input for LST.ANG(Q)
Example) C = 90.000
N = 3
Q = 270.000
C = 0
Q
C
3. When data is input for ANGLE(A), a value of 2 or more is input
for H.NUM(N), and no data is input for LST.ANG(Q)
Example) C = 90.000
A = 90.000
N = 3
C = 0
C
A
A
(2) "Unevenly spaced" figure data
Up to four side face holes can be specified at any positions with any
depths.
POINT n X
X coordinate of the position of the nth hole
POINT n Z
Z coordinate of the start point of the nth hole
POINT n C
C coordinate of the position of the nth hole
DEPTH n D
Depth of the nth hole (Specify this value for each hole.)
NOTE
A cutting motion in drilling is started the amount of
drilling clearance (parameter No. 9855 (GRDLCL))
before the start point.
