4.16i/18i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04

- -114

4.1 RULES GOVERNING THE USE OF THE DATA SERVER

FUNCTIONS

This section describes the rules governing the use of the data server

functions.

4.1.1 Data Server Modes

The data server function can run in three modes when it transfers NC

data (such as NC programs and NC parameters) between the CNC and

data server board.

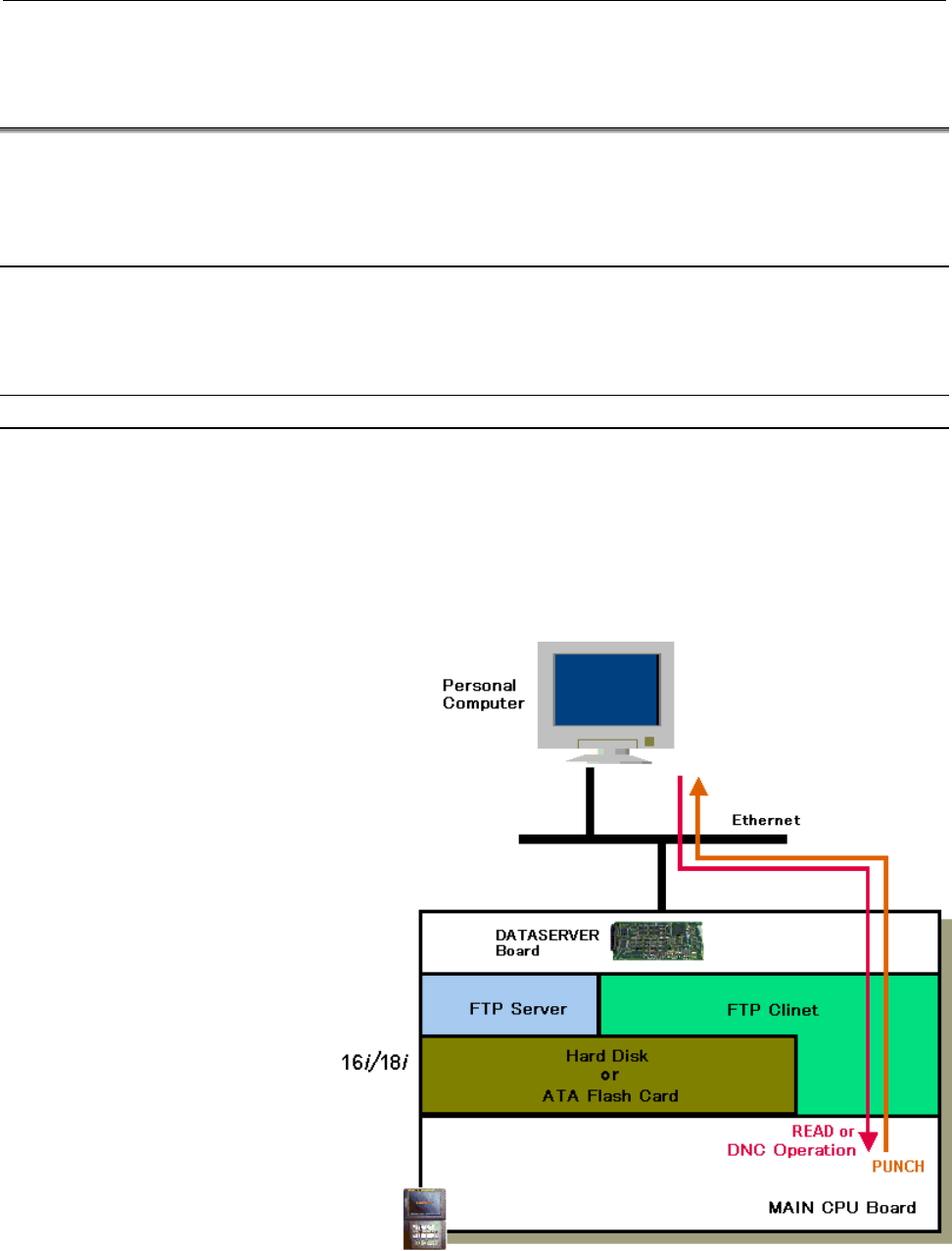

Storage mode

In the storage mode, data is transferred between the data server board

built-in hard disk and CNC part program storage.

For example, DNC operations including a DNC operation by a

subprogram call (M198) require that the related NC programs be stored

on the data server board built-in hard disk. If an NC program is output,

it will be stored on that hard disk.
