3.INSTALLATION V. CONNECTION B-63354EN/04

- -316

3.3.2 Installing a hard disk drive unit

[Installing a hard disk drive unit]

Install the hard disk drive unit in the control unit.

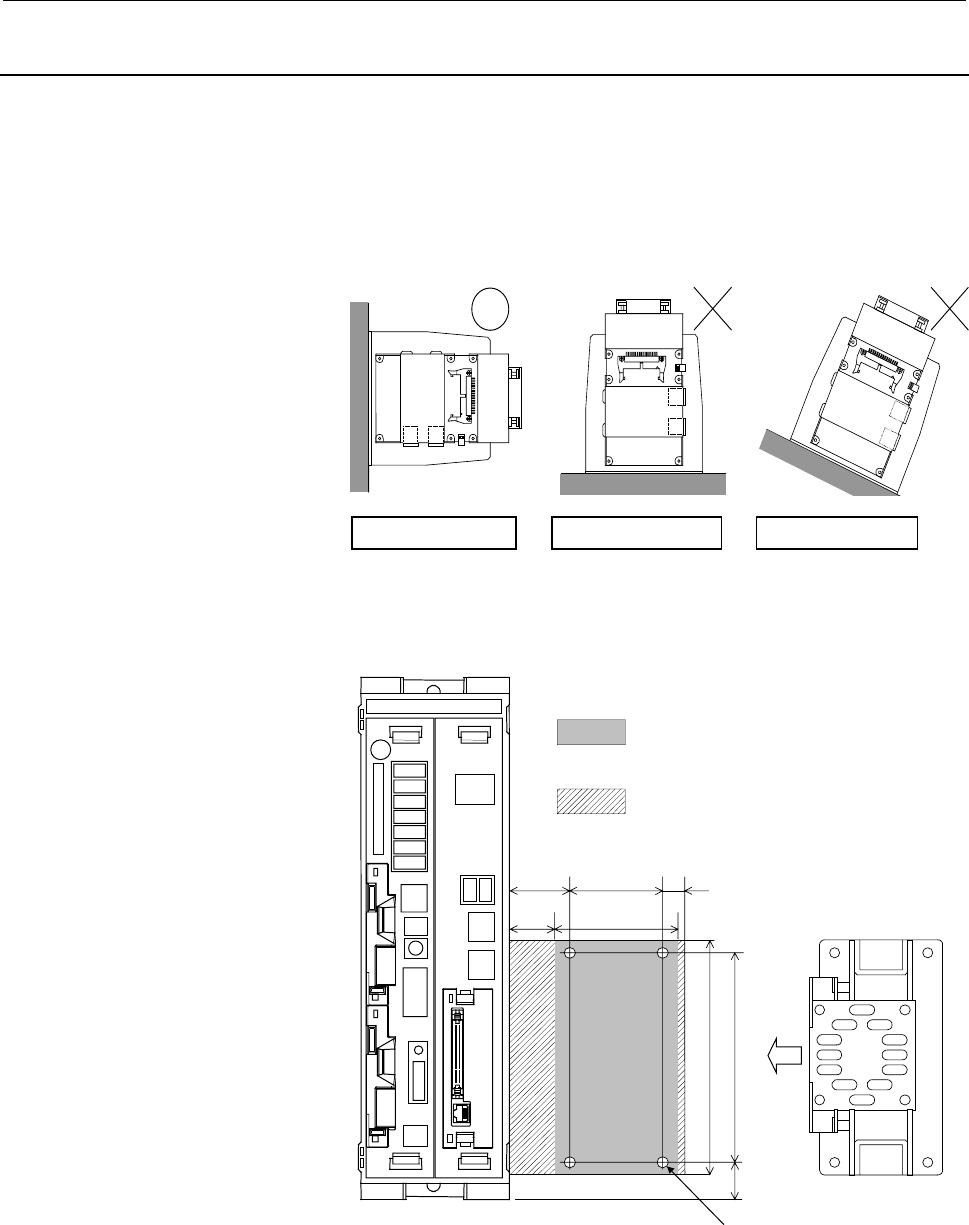

• Orientation of hard disk drive unit. The hard disk drive unit must be

installed on a vertical surface.

It cannot be installed on a horizontal or inclined surface.

• Installation position of hard disk drive unit

Install the hard disk drive unit on the right side the control unit. The

figure below shows the area to be used for installing the hard disk

drive unit.

Vertical surface Horizontal surface Inclined surface

38 59 15

151

13135

Installation location for hard disk

drive unit (must be smooth)

Space for ventilation

4-φ4.8
