Ethernet/Data Server Board Operators manual Page 312

Operators manual
3.INSTALLATION V. CONNECTION B-63354EN/04
- -298

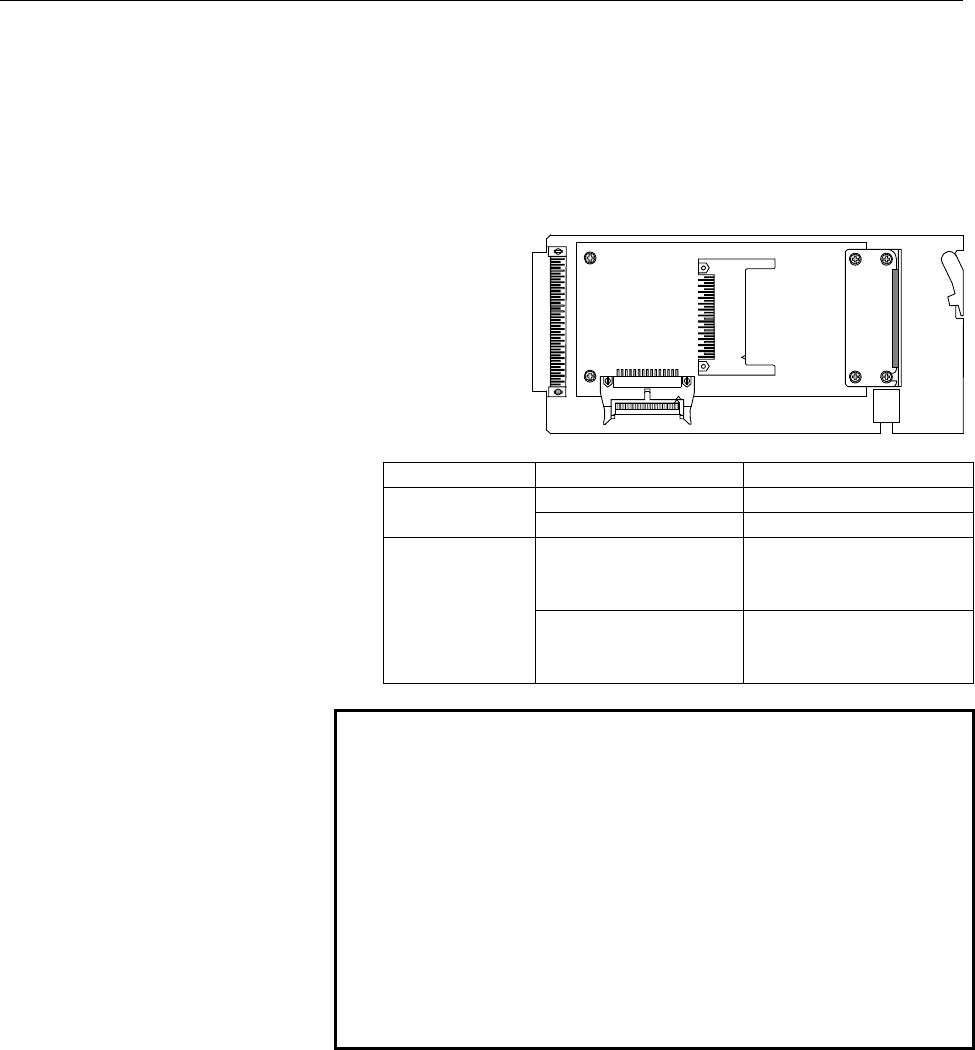

2) Installing an ATA data server board
With the ATA Card Adapter installed, the ATA data server board
must be installed in an appropriate option slots. The ATA data
server board cannot be installed in the following slots:
- Slot nearest to the LCD
- The 3-slot type slot located in the center
- The fourth slot, located farthest from the 4-slot type LCD
Drawing number Remarks
A20B-8100-0271 CNH4 (IDE) installed
Board drawing
number
A20B-2002-0960 ATA Card Adapter
A02B-0236-J145
For Series 16i/18i/21i-A
ATA Card Adapter,
including flat cable
Order
specification
A02B-0281-J145
For Series 16i/18i/21i-B
ATA Card Adapter,
including flat cable
NOTE
1 CNH4 on the motherboard and CNH4 on the ATA
Card Adapter are connected with a flat cable.
2 Connect the ATA flash card to CNH6 before installing
the ATA data server board in the option slot. The ATA
flash card cannot be attached or removed while the
ATA data server board is installed in the option slot.
3 Only an ATA flash card can be installed on the data
server board for LCD-mounted type Series 21i -A and
LCD-mounted type Series 16i/18i/21i-B. An hard disk
drive unit cannot be installed.
4 Use the ATA flash card recommended by FANUC.
CD38
CNH4
CNH6
