Ethernet/Data Server Board Operators manual Page 367

Operators manual

Page of 429

/ 429

B-63354EN/04 VI. MAINTENANCE 1.Series 16i

i/18i

i/21i

i-A/PMi

i MAINTENENCE INFORMATION

- -353

1.4.1 Determining the Communications Line Status

The most probable causes of a poor communications line status are as

follows:

u Excessive traffic on the communications line.

u Excessive electrical noise on the communications line.

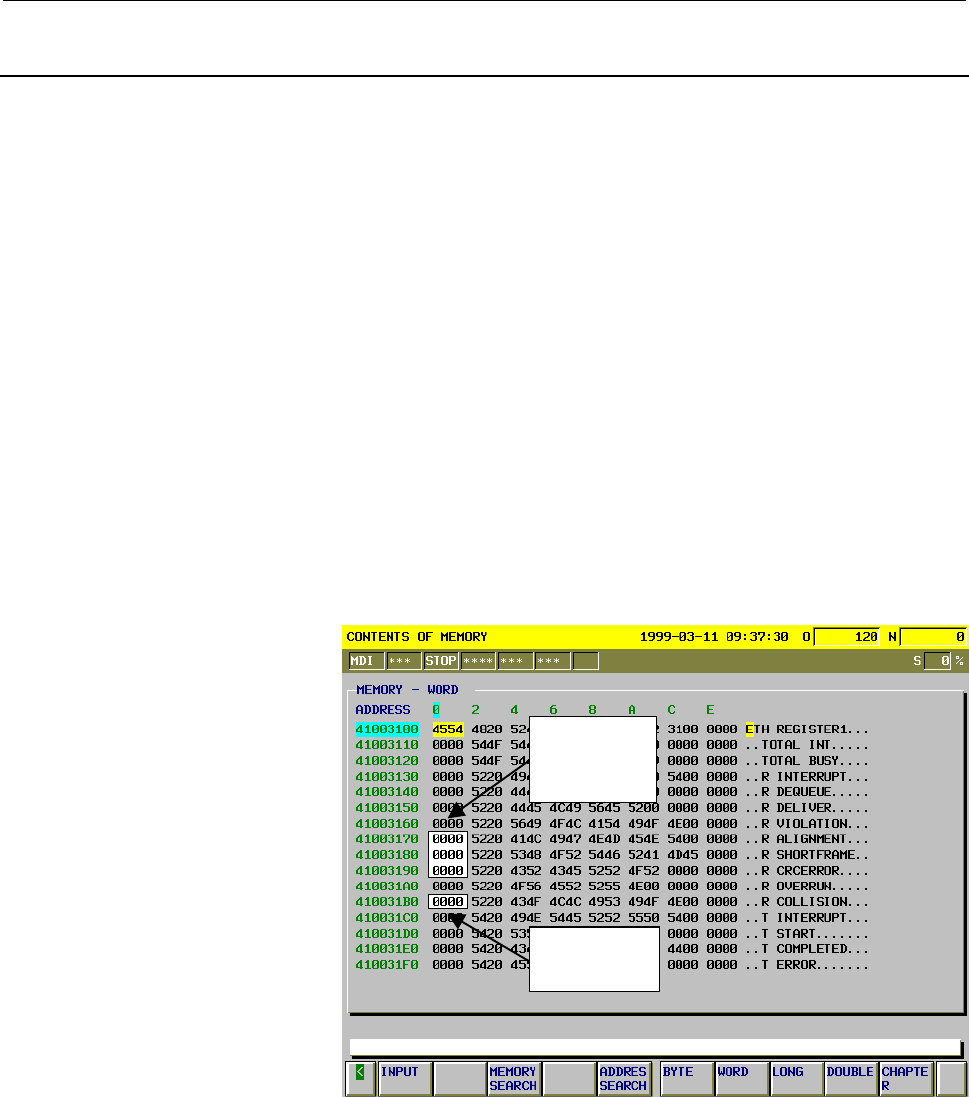

When there is a considerable amount of traffic on the communications

line, the value of the R COLLISION item increases. In the figure below,

the two bytes of data from address 0x410031B0 are the numerical

values of R COLLISION.

When there is a considerable amount of electrical noise on the

communications line, the values of the R ALIGNMENT, R

SHORTFRAME and R CRCERROR items increase. In the figure

below, the two bytes of data from address 0x41003170 are the

numerical values of R ALIGNMENT. The two bytes of data from

address 0x41003180 are the numerical values of R SHORTFRAME.

The two bytes of data from address 0x41003190 are the numerical

values of R CRCERROR.

These

numerical

values increase

as electrical

This numerical

value increases

as traffic
