1.ETHERNET FUNCTIONS II. SPECIFICATION B-63354EN/04

- -12

1.1 FACTOLINK Function

The FACTOLINK function displays a work instruction on the CNC

screen or transfers NC data, using the NC.

For details, refer to "FANUC FACTOLINK Script Function,

OPERATOR'S MANUAL (B-75054EN)."

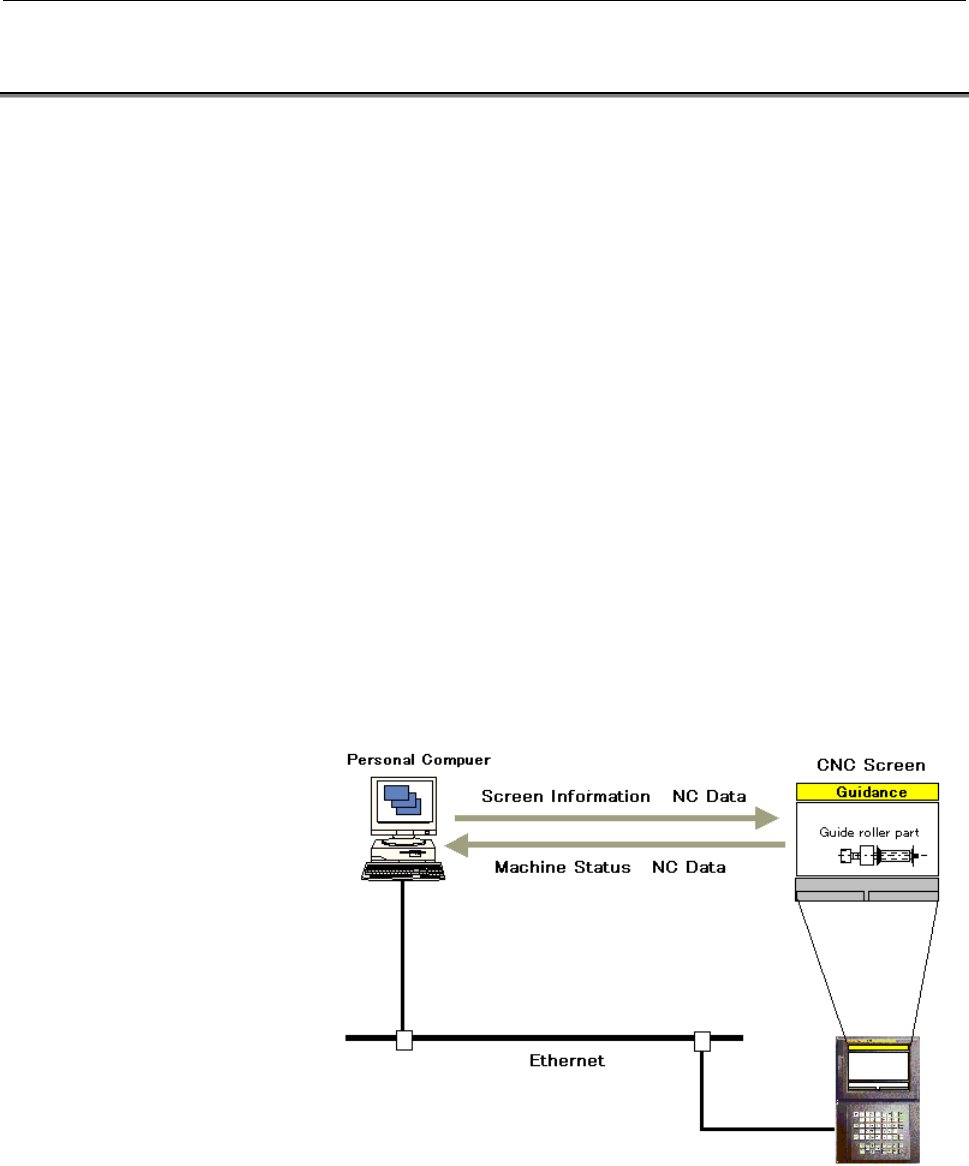

Screen display

You can display a work instruction created on a personal computer on

the NC screen, using the NC.

NC data transfer

The following NC data can be transferred by using the NC:

• NC program

• NC file data

n Parameter

n Ladder program

n C executor in executable form

n Macro executor in executable form

n NC system file

• PMC data

n Address T, K, C, D

Logging

The status of the machine can be automatically sent to a personal

computer.
