4.16i/18i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04

- -192

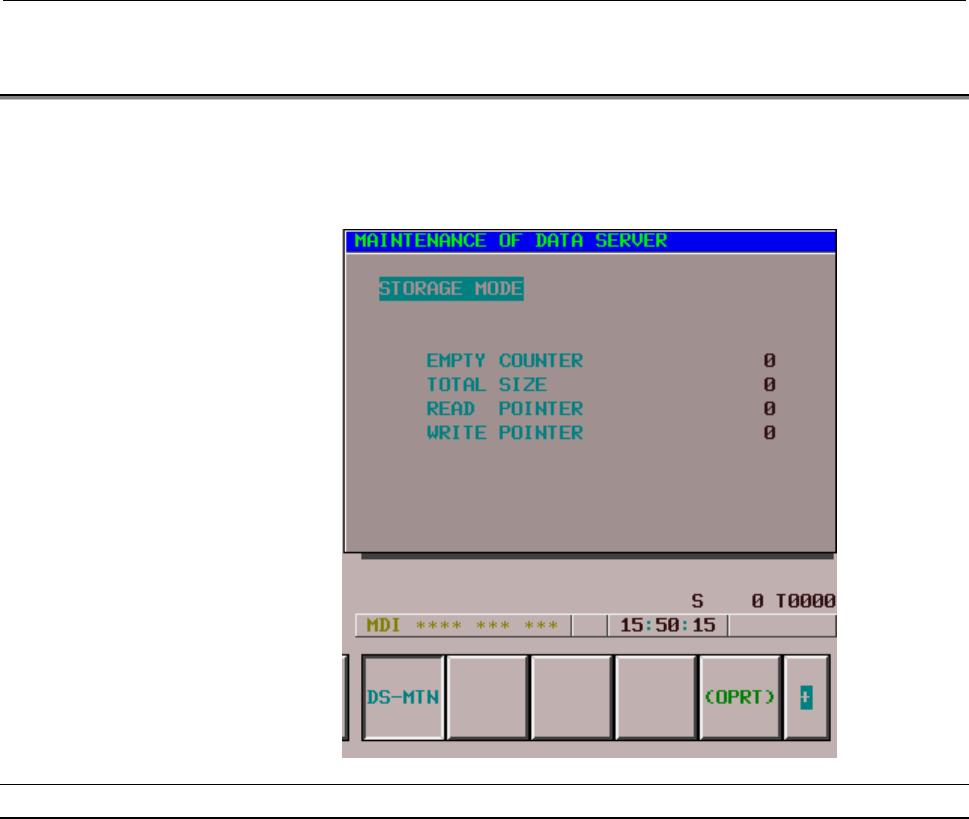

4.11 MAINTENANCE OF DATA SERVER SCREEN

The Maintenance of Data Server screen is used to format (initialize) a

data server board built-in hard disk, check for hard disk errors, switch

between data server modes, and display the error examination data.

Display items

•

••

• STORAGE MODE, BUFFER MODE, and FTP MODE

Display the current data server modes.

•

••

• EMPTY COUNTER

Displays the number of times that the data buffer becomes empty

during transfer of the NC program from the data server board to the

CNC. This item is initialized to 0 at power-on. After being initialized,

the item is counted when the conditions are satisfied. When DNC

operation or DNC operation by a subprogram call (M198) is being

executed, this item may be counted up. This indicates that the data

supply from the data server board to the CNC is insufficient.

•

••

• TOTAL SIZE

Indicates the total number of bytes when a single NC program is

transferred from the data server board to the CNC.

•

••

• READ POINTER and WRITE POINTER

Pointer used to manage the internal buffer for supplying the NC

program between the data server board and CNC.
