i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04
- -236
Press soft key [(CURSOR)].

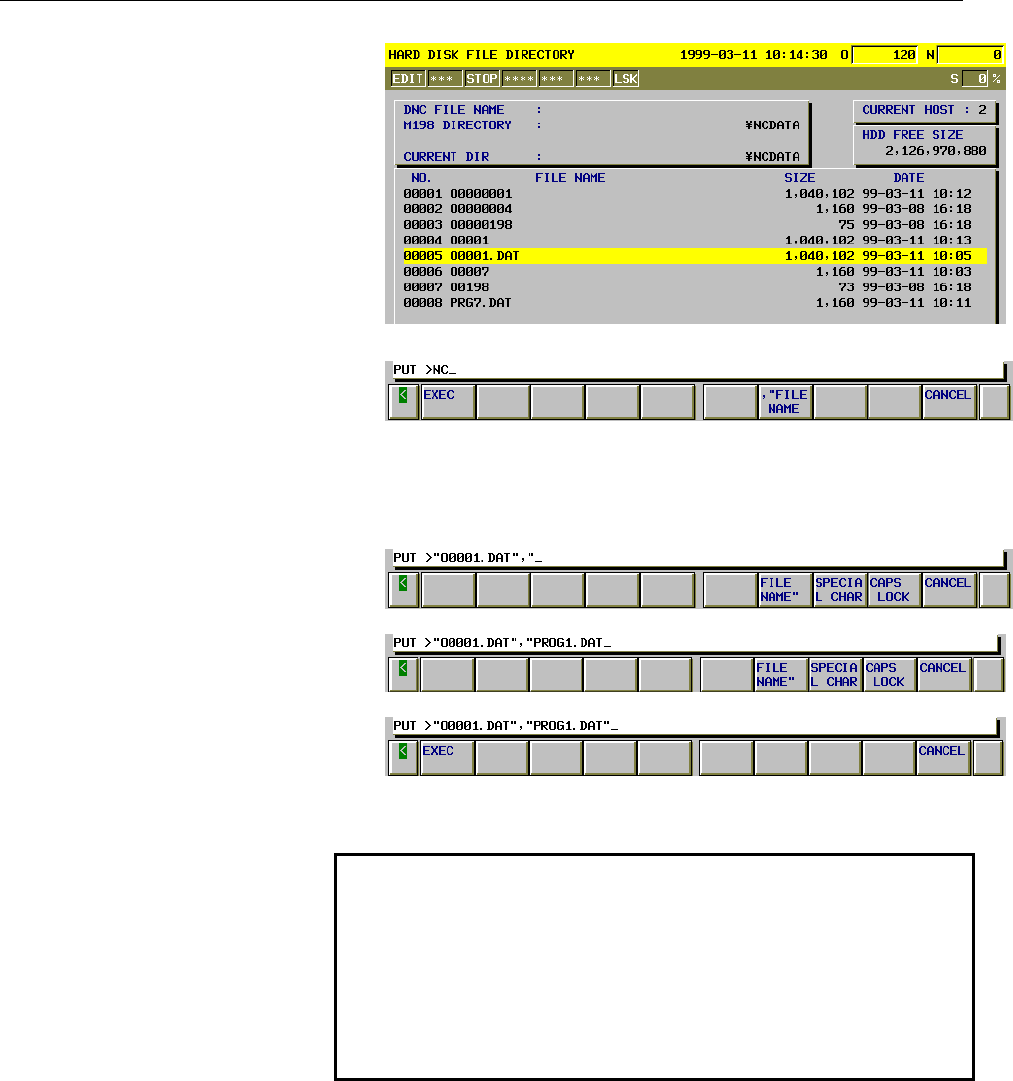

3. Enter the transfer destination file name. If the transfer destination
name is omitted, the transfer source file name is used.
Press soft key [,"FILE NAME].
Press file name PROG1.DAT.
Press soft key [FILE NAME"].
4. Press soft key [EXEC].
NOTE
1 The transfer destination file name can be omitted. In
this case, it becomes the transfer source file name.
2 If an error occurs, check the cause of the error by
referencing the Ethernet Error Message screen.
3 Specifying a file to be transferred with a file number is
valid only for those files displayed on the Hard Disk
File Directory screen.
